Features
☑ Line Array optimized Waveguide with DCX464 driver and ME148 horn
☑ Time coherent coaxial ring radiator design (Patents EP3644623B1, US11343608B2)
☑ 120° max horizontal coverage
☑ 109.1 dB sensitivity
☑ 220 W continuous program power capacity
☑ Neodymium magnet assembly
☑ Recommended hardware for horn mounting: four M6x12 screws

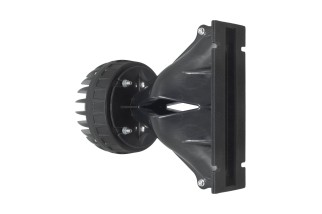

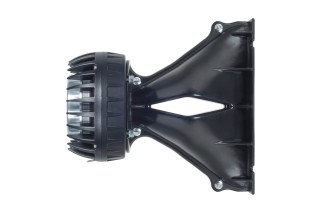

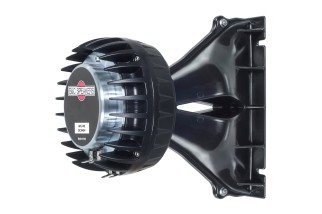

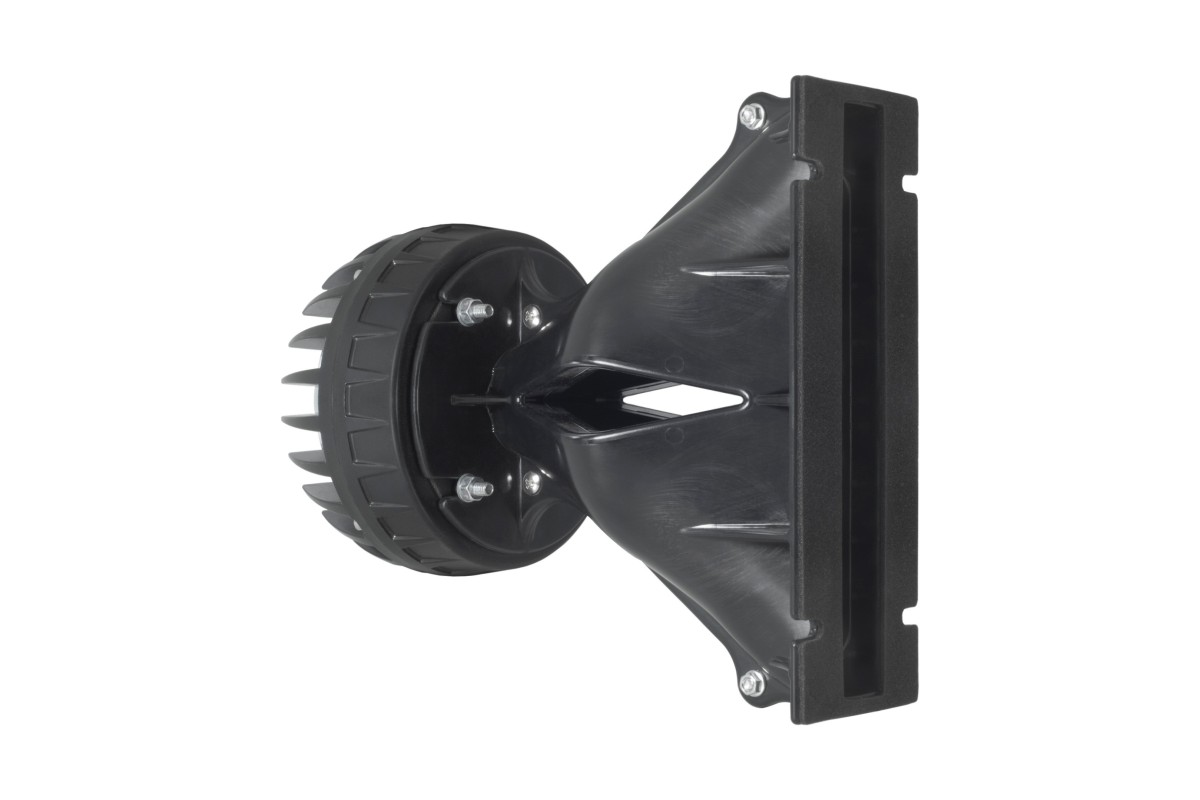

B&C WG148-464
682,22 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ Line Array optimized Waveguide with DCX464 driver and ME148 horn
☑ Time coherent coaxial ring radiator design (Patents EP3644623B1, US11343608B2)
☑ 120° max horizontal coverage
☑ 109.1 dB sensitivity
☑ 220 W continuous program power capacity
☑ Neodymium magnet assembly
☑ Recommended hardware for horn mounting: four M6x12 screws
close
| Specifications Horn unit | |
|---|---|
| Nominal Impedance | 8 Ω |
| Active Radiating Factor | 93.3 % |

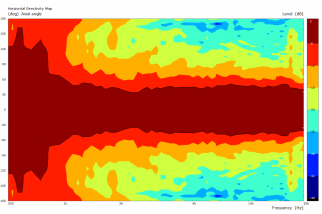

| Horizontal Coverage | 120 ° Max |
| Nominal Impedance | 8 Ω |
| Horizontal Coverage | 120 ° Max |
| Active Radiating Factor | 93.3 % |
| Specifications MF unit | |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 110 W |
| Continuous Power Handling | 220 W |
| Sensitivity | 109.1 dB |
| Frequency Range | 0.3 kHz - 5.5 kHz |
| Recommended Crossover | 0.3 kHz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Aluminium |
| Inductance | 0.21 mH |
| Flux Density | 1.9 T |
| Diaphragm Material | HT Polymer Ring |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 220 W |
| Frequency Range | 0.3 kHz - 5.5 kHz |
| Voice Coil Diameter | 100 mm (4 in) |
| Inductance | 0.21 mH |
| Diaphragm Material | HT Polymer Ring |
| Nominal Power Handling | 110 W |
| Sensitivity | 109.1 dB |
| Recommended Crossover | 0.3 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.9 T |
| Specifications HF unit | |
| Minimum Impedance | 9.1 Ω |
| Nominal Power Handling | 80 W |
| Continuous Power Handling | 160 W |
| Sensitivity | 107.6 dB |
| Frequency Range | 3.5 kHz - 18 kHz |
| Recommended Crossover | 4 kHz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Winding Material | Aluminium |
| Inductance | 0.1 mH |
| Flux Density | 2.14 T |
| Diaphragm Material | HT Polymer Ring |
| Minimum Impedance | 9.1 Ω |
| Continuous Power Handling | 160 W |
| Frequency Range | 3.5 kHz - 18 kHz |
| Voice Coil Diameter | 65 mm (2.56 in) |
| Inductance | 0.1 mH |
| Diaphragm Material | HT Polymer Ring |
| Nominal Power Handling | 80 W |
| Sensitivity | 107.6 dB |
| Recommended Crossover | 4 kHz |
| Winding Material | Aluminium |
| Flux Density | 2.14 T |
| Mounting and Shipping Info Recommended hardware for horn mounting: four M6x12 screws |
|
| Exit Size | 225x25.6 mm (8.9x1 in) |
| Net Weight | 4.48 kg (9.88 lb) |
| Driver Diameter | 152 mm (5.98 in) |
| Dimensions | 251.9x240x120.1 mm (9.92x9.45x4.73 in) |
| Exit Size | 225x25.6 mm (8.9x1 in) |
| Driver Diameter | 152 mm (5.98 in) |
| Net Weight | 4.48 kg (9.88 lb) |
| Dimensions | 251.9x240x120.1 mm (9.92x9.45x4.73 in) |
WG1484648
Scheda dati
- Pollici
- 1.4
Nuovo
