Features
☑ 50 W continuous program power capacity
☑ 1" horn throat diameter
☑ 36 mm (1.4 in) aluminium voice coil
☑ Polyester diaphragm
☑ 1500 - 18000 Hz response
☑ 106 dB sensitivity

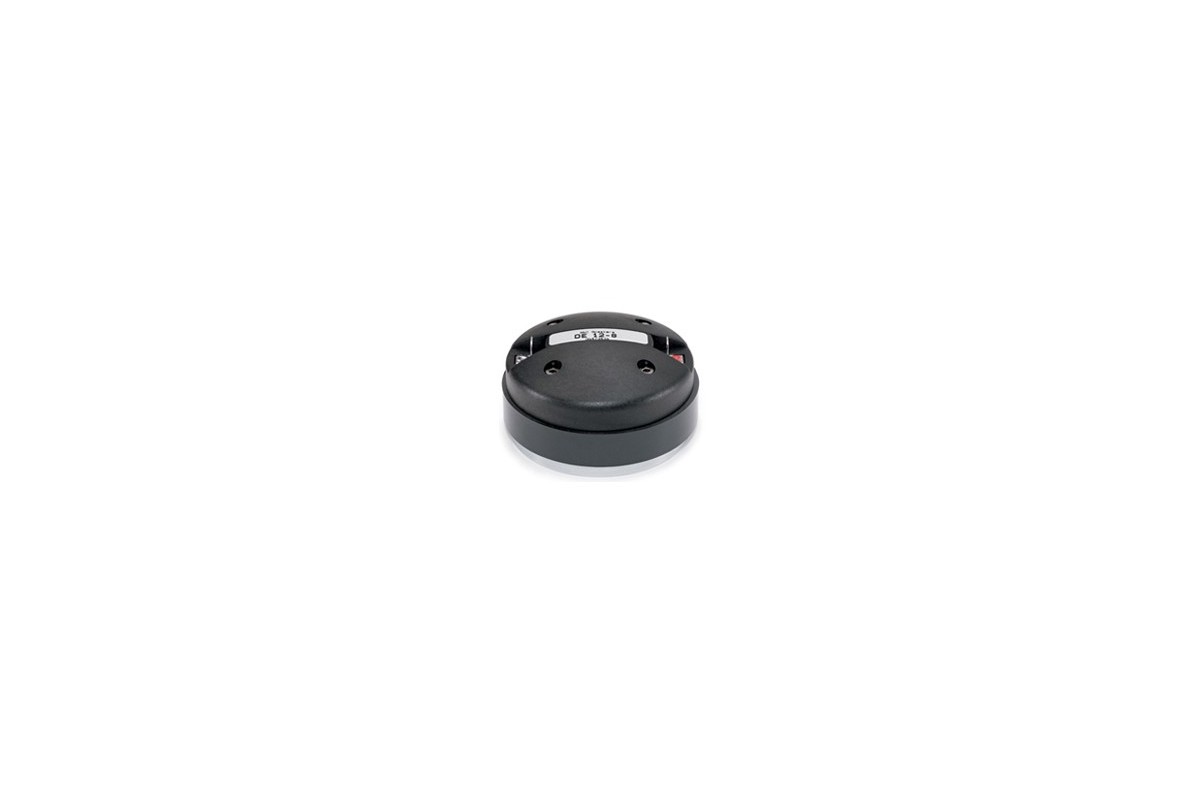

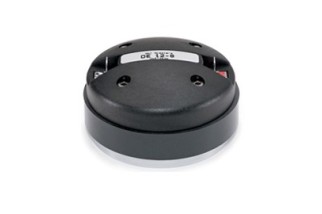

B&C DE12
65,88 €
Tasse incluse
Spedizione 24/48h
Features
☑ 50 W continuous program power capacity
☑ 1" horn throat diameter
☑ 36 mm (1.4 in) aluminium voice coil
☑ Polyester diaphragm
☑ 1500 - 18000 Hz response
☑ 106 dB sensitivity
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |

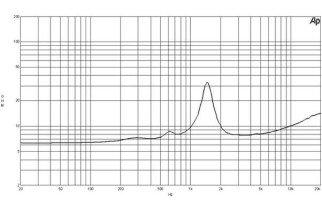

| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 50 W |

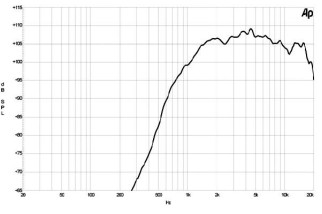

| Frequency Range | 1.5 kHz - 18 kHz |
| Voice Coil Diameter | 36 mm (1.4 in) |
| Inductance | 0.14 mH |
| Diaphragm Material | Mylar |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 25 W |
| Sensitivity | 106 dB |
| Recommended Crossover | 2.2 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.45 T |

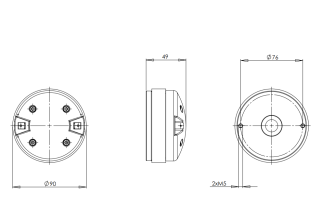

| Mounting and Shipping Info Two M5 holes 180° on 76 mm (3 in) diameter |
|
| Overall Diameter | 90 mm (3.5 in) |
| Net Weight | 1.05 kg (2.31 lb) |
| Shipping Weight | 1.08 kg (2.38 lb) |
| Depth | 49 mm (2 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 105x105x65 mm (4.13x4.13x2.56 in) |
