Features
☑ 120 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 18000 Hz response
☑ 108.5 dB sensitivity

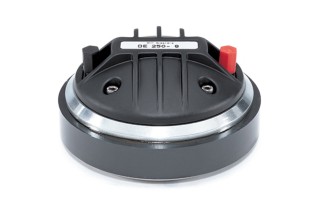

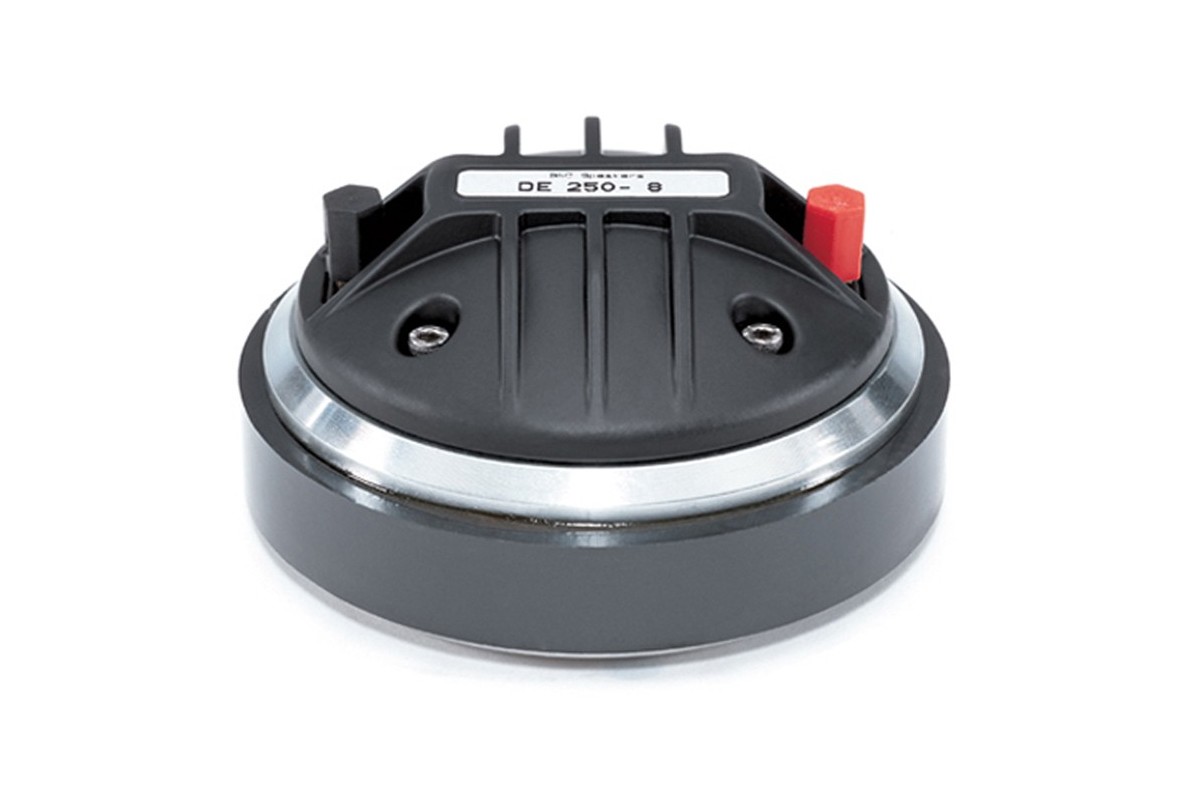

B&C DE250
105,41 €
Tasse incluse
Spedizione 24/48h
Features
☑ 120 W continuous program power capacity
☑ 1' horn throat diameter
☑ 44 mm (1.7 in) aluminium voice coil
☑ Polyimide diaphragm
☑ 1000 - 18000 Hz response
☑ 108.5 dB sensitivity
close
| Specifications | |
|---|---|
| Throat Diameter | 25 mm (1 in) |

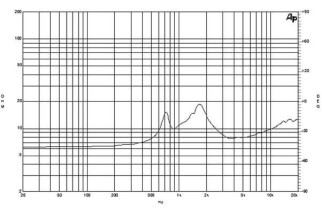

| Minimum Impedance | 7.8 Ω |
| Continuous Power Handling | 120 W |

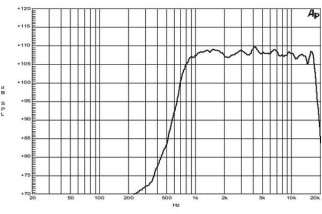

| Frequency Range | 1 kHz - 18 kHz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Inductance | 0.11 mH |
| Diaphragm Material | Polyimide |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 60 W |
| Sensitivity | 108.5 dB |
| Recommended Crossover | 1.6 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.85 T |

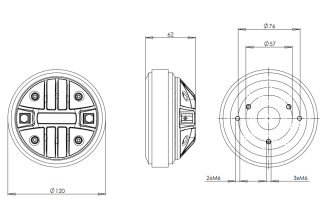

| Mounting and Shipping Info Two M6 holes 180° on 76 mm (3 in) diameter Three M6 holes 120° on 57 mm (2.2 in) diameter |
|
| Overall Diameter | 120 mm (4.7 in) |
| Net Weight | 2.15 kg (4.74 lb) |
| Shipping Weight | 2.21 kg (4.87 lb) |
| Depth | 62 mm (2.4 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 120x120x65 mm (4.72x4.72x2.56 in) |
