Features
☑ 20 W continuous program power capacity
☑ 25 mm (1 in) aluminium voice coil
☑ 3/4" horn throat diameter
☑ Polyester diaphragm
☑ 2000 - 18000 Hz response
☑ 107 dB sensitivity

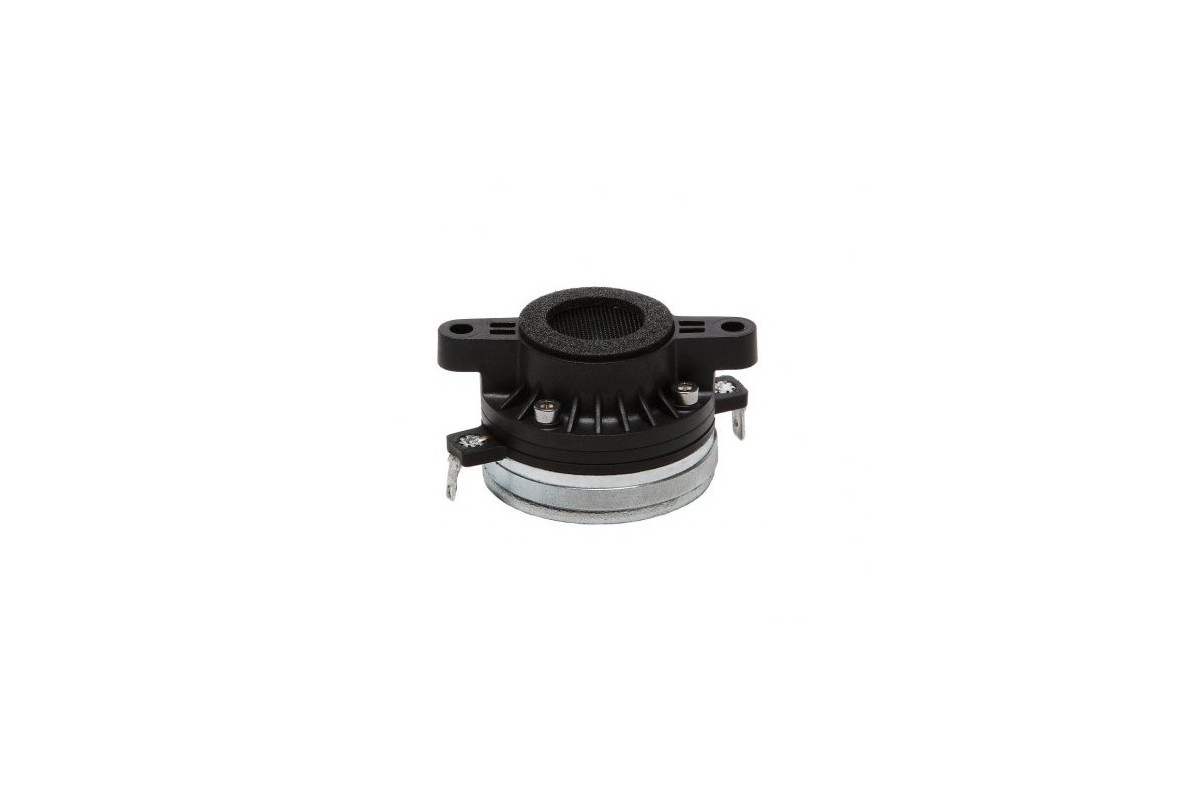

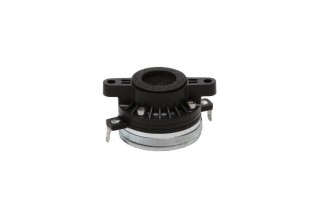

B&C DE7 Driver a Compressione 1"
46,85 €
43,57 €
Salvare 7%
Tasse incluse
🔴 Non in pronta consegna 📦 Spedizione in 5–7 giorni lavorativi
Features
☑ 20 W continuous program power capacity
☑ 25 mm (1 in) aluminium voice coil
☑ 3/4" horn throat diameter
☑ Polyester diaphragm
☑ 2000 - 18000 Hz response
☑ 107 dB sensitivity
close
| Specifications | |
|---|---|
| Throat Diameter | 19 mm (0.75 in) |
| Minimum Impedance | 4.7 Ω |
| Continuous Power Handling | 20 W |
| Frequency Range | 2 kHz - 18 kHz |
| Voice Coil Diameter | 25 mm (1 in) |
| Inductance | 0.15 mH |
| Diaphragm Material | Mylar |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 10 W |
| Sensitivity | 107 dB |
| Recommended Crossover | 2.5 kHz |
| Winding Material | Aluminium |
| Flux Density | 1.65 T |

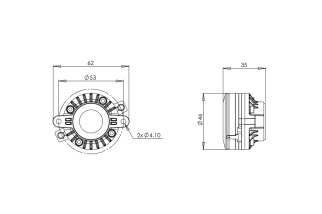

| Mounting and Shipping Info Two M4 holes 180° on 53 mm (2.1 in) diameter |
|
| Overall Diameter | 62 mm (2.44 in) |
| Net Weight | 0.17 kg (0.37 lb) |
| Shipping Weight | 0.18 kg (0.4 lb) |
| Depth | 35 mm (1.37 in) |
| Shipping Units | 1 pcs |
| Shipping Box | 65x55x40 mm (2.56x2.17x1.57 in) |
DRVDE74
Scheda dati
- Pollici
- 0.75"
Nuovo
