Caratteristiche
☑ 3.0-inch, Titanium dome, polyimide surround
☑ 240W continuous program power handling @ 8Ω
☑ Frequency range: 500Hz - 20kHz
☑ Kapton former, edge wound aluminum voice coil
☑ 3-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ Low recommended crossover point
☑ High-flux density neodymium magnet
The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.

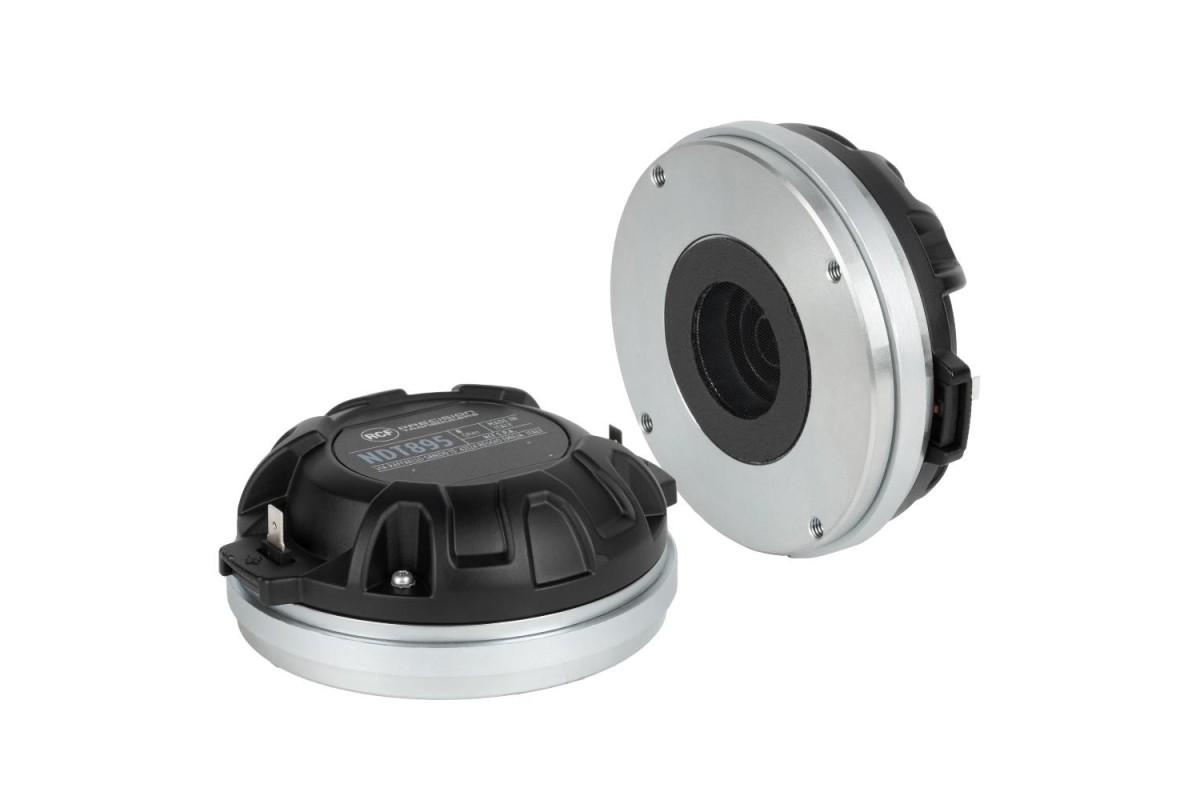

RCF NDT895
279,99 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 3.0-inch, Titanium dome, polyimide surround
☑ 240W continuous program power handling @ 8Ω
☑ Frequency range: 500Hz - 20kHz
☑ Kapton former, edge wound aluminum voice coil
☑ 3-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ Low recommended crossover point
☑ High-flux density neodymium magnet
The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.4 inch / 36 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 240 W |
| Potenza | 120 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 500 - 20000 Hz |
| Materiale Diaframma | Pure Titanium |
| Materiale della sospensione | Pure Titanium |
| Design della sospensione | Double Roll |
| Impedenza Minima (ohm) | 7.00 ohm |
| Diametro Bobina | 3.0 inch / 76 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Direct Drive Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 2.0 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | Aluminum |
| Magnete | Neodymium |
| Anelli demodulanti bobina | Copper |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 13.00 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 115 mm / 4.53 inches |
| Altezza complessiva | 49 mm / 1.93 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Informazioni di spedizione | |
| Altezza imballaggio | 63 mm / 2.48 inches |
| Larghezza imballaggio | 142 mm / 5.59 inches |
| Profondità imballaggio | 144 mm / 5.67 inches |
| Peso imballaggio | 1.6 kg / 3.53 lbs |
