Caratteristiche
☑ 1.75-inch PKX dome, polyimide surround
☑ Kapton former, edge wound aluminum voice coil
☑ 140W continuous program power handling @ 8Ω
☑ Frequency range: 500Hz - 20kHz
☑ 4-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ High-flux density neodymium magnet
☑ Recommended for 2-way speaker design
The 1.75" PKX dome NDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size and the low recommended crossover point from 1000 Hz make this transducer ideal for two-way cabinet designs and three-way loudspeaker systems. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ultralight edge wound aluminum wire, class-leading neodymium magnets, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.

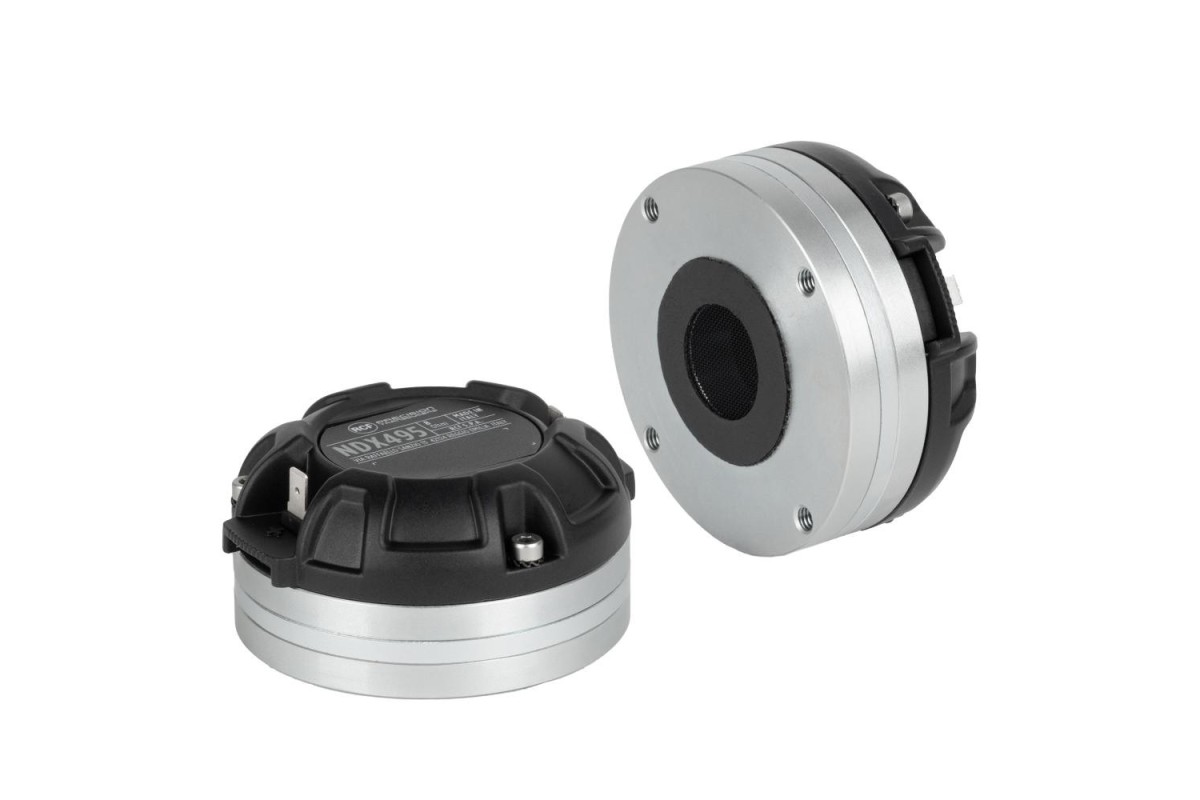

RCF NDX495
114,07 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 1.75-inch PKX dome, polyimide surround
☑ Kapton former, edge wound aluminum voice coil
☑ 140W continuous program power handling @ 8Ω
☑ Frequency range: 500Hz - 20kHz
☑ 4-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ High-flux density neodymium magnet
☑ Recommended for 2-way speaker design
The 1.75" PKX dome NDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size and the low recommended crossover point from 1000 Hz make this transducer ideal for two-way cabinet designs and three-way loudspeaker systems. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ultralight edge wound aluminum wire, class-leading neodymium magnets, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.0 inch / 25 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 140 W |
| Potenza | 70 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 1200 - 20000 Hz |
| Materiale Diaframma | PKX Polymer |
| Materiale della sospensione | PKX Polymer |
| Design della sospensione | Flat |
| Impedenza Minima (ohm) | 6.50 ohm |
| Diametro Bobina | 1.75 inch / 44 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.8 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | PP Composite |
| Magnete | Neodymium |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 7.50 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 85 mm / 3.35 inches |
| Altezza complessiva | 44 mm / 1.73 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 0.85 kg / 1.87 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 65 mm / 2.56 inches |
| Larghezza imballaggio | 111 mm / 4.37 inches |
| Profondità imballaggio | 113 mm / 4.45 inches |
| Peso imballaggio | 0.89 kg / 1.96 lbs |
