Caratteristiche
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 700Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Titanium diaphragm
☑ Copper inductance ring for extended response
☑ Vented, damped, low distortion suspension system
☑ Neodymium magnet assembly
The ND640 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring the smallest size of the art technology. The diaphragm are precision completely formed from pure titanium. Voice coil assembly is designed using high temperature kapton former and it is joined to the diaphragm by RCF proprietary Direct Drive kapton technology. Diaphragm suspension is designed by extensive FEM study for low distortion and low frequency range extension.

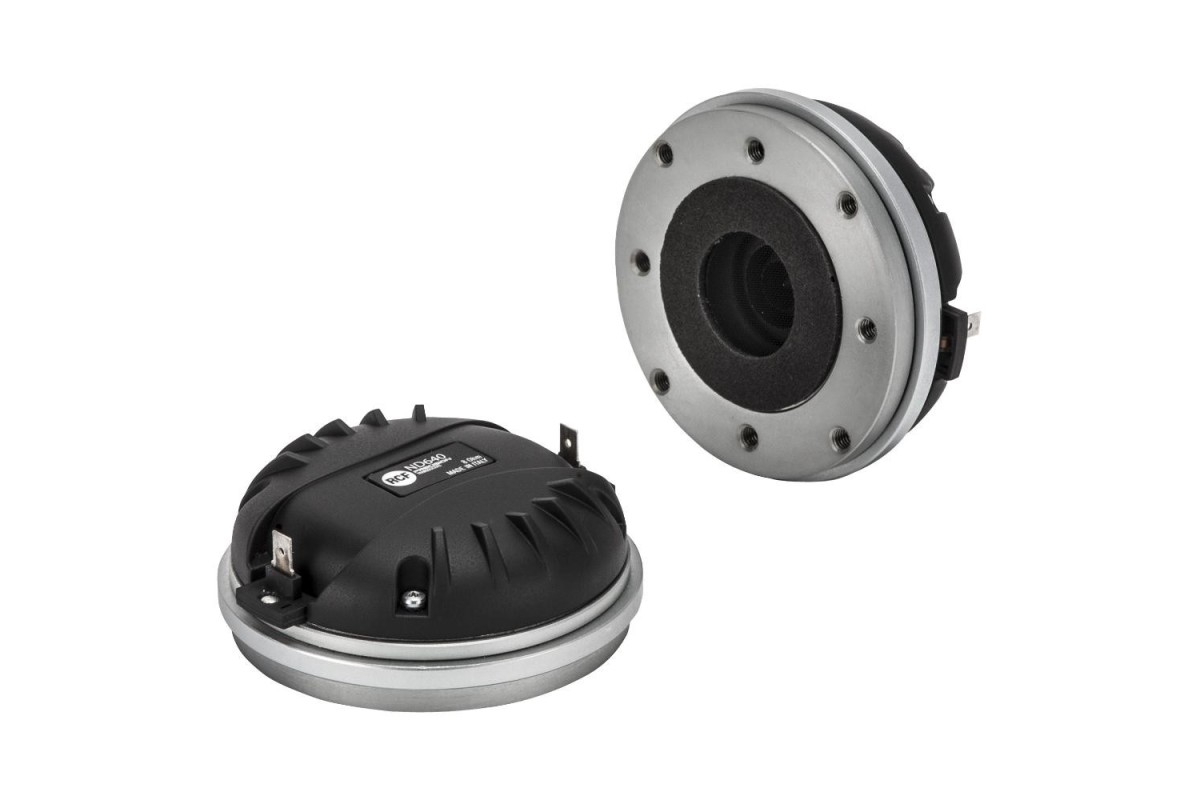

RCF ND640
197,03 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 700Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Titanium diaphragm
☑ Copper inductance ring for extended response
☑ Vented, damped, low distortion suspension system
☑ Neodymium magnet assembly
The ND640 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring the smallest size of the art technology. The diaphragm are precision completely formed from pure titanium. Voice coil assembly is designed using high temperature kapton former and it is joined to the diaphragm by RCF proprietary Direct Drive kapton technology. Diaphragm suspension is designed by extensive FEM study for low distortion and low frequency range extension.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.4 inch / 36 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 180 W |
| Potenza | 90 W |
| Sensibilità (dB) | 110 dB |
| Gamma di frequenza | 700 - 20000 Hz |
| Materiale Diaframma | Pure Titanium |
| Materiale della sospensione | Pure Titanium |
| Design della sospensione | Double Roll |
| Impedenza Minima (ohm) | 7.50 ohm |
| Diametro Bobina | 2.5 inch / 63 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Direct Drive Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.9 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | Aluminum |
| Magnete | Neodymium |
| Anelli demodulanti bobina | Copper |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 9.80 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 102 mm / 4.02 inches |
| Altezza complessiva | 40 mm / 1.57 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 1.06 kg / 2.34 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 74 mm / 2.91 inches |
| Larghezza imballaggio | 122 mm / 4.8 inches |
| Profondità imballaggio | 123 mm / 4.84 inches |
| Peso imballaggio | 1.17 kg / 2.58 lbs |
