Caratteristiche
☑ 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
☑ 100W continuous program power handling
☑ Frequency range: 1200Hz - 20kHz
☑ 2-slot optimized geometry phase plug
☑ Polyester diaphragm
☑ Vented suspension system
☑ Compact neodymium magnet assembly
The ND350 is a high frequency performance 1.75-inch diaphragm compression driver with a 1-inch exit throat. The diaphragm is precision formed from polyester. Voice coil assembly is designed using high temperature kapton former and rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.

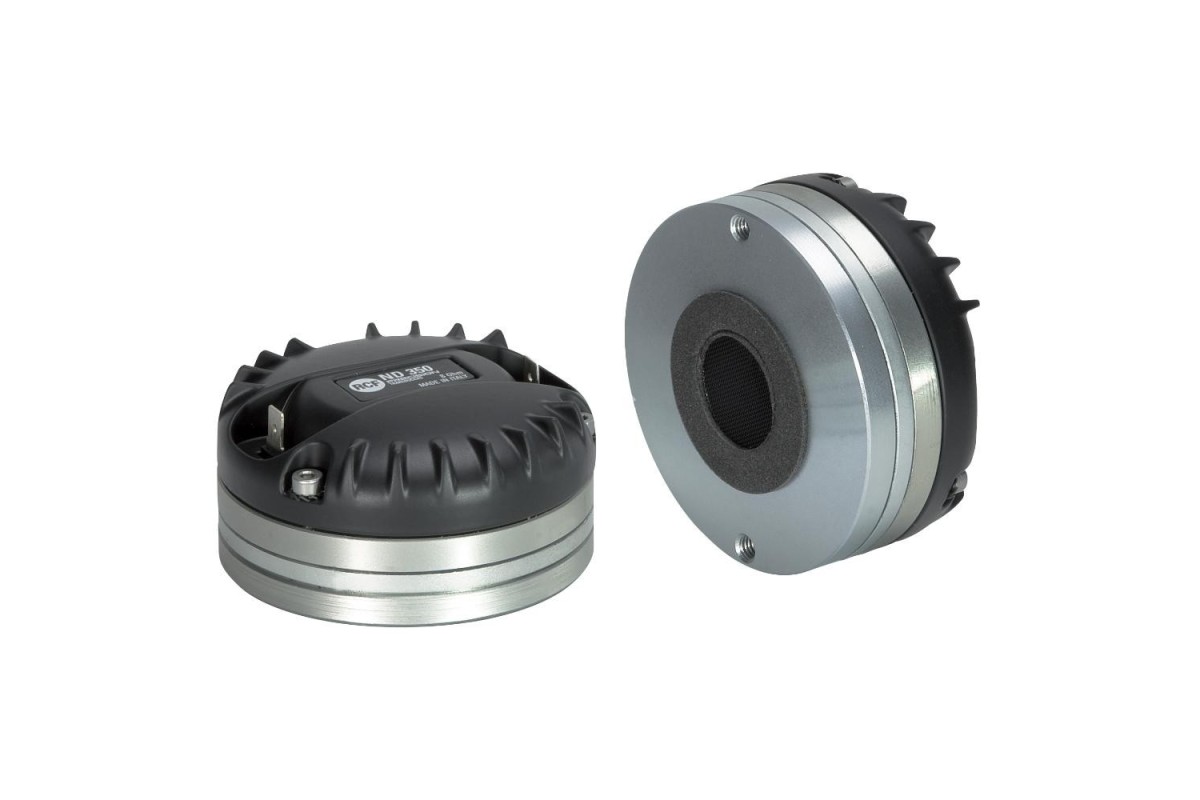

RCF ND350
129,63 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
☑ 100W continuous program power handling
☑ Frequency range: 1200Hz - 20kHz
☑ 2-slot optimized geometry phase plug
☑ Polyester diaphragm
☑ Vented suspension system
☑ Compact neodymium magnet assembly
The ND350 is a high frequency performance 1.75-inch diaphragm compression driver with a 1-inch exit throat. The diaphragm is precision formed from polyester. Voice coil assembly is designed using high temperature kapton former and rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.0 inch / 25 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 100 W |
| Potenza | 50 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 1200 - 20000 Hz |
| Materiale Diaframma | Polyester |
| Materiale della sospensione | Polyester |
| Design della sospensione | Flat |
| Impedenza Minima (ohm) | 6.50 ohm |
| Diametro Bobina | 1.75 inch / 44 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.8 T |
| Design del Rifasatore | 2 slot |
| Materiale del Rifasatore | PP Composite |
| Magnete | Neodymium |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 7.50 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 85 mm / 3.35 inches |
| Altezza complessiva | 43 mm / 1.69 inches |
| Montaggio | 2 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 0.85 kg / 1.87 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 65 mm / 2.56 inches |
| Larghezza imballaggio | 111 mm / 4.37 inches |
| Profondità imballaggio | 113 mm / 4.45 inches |
| Peso imballaggio | 0.89 kg / 1.96 lbs |
