Caratteristiche
☑ 1.5-inch Diaphragm, 1-inch Exit Throat
☑ 50W continuous program power handling
☑ Frequency range: 1500Hz - 20kHz
☑ Optimized geometry radial phase plug
☑ Very compact size for array applications
☑ Neodymium magnet assembly
☑ High power handling in only 70mm overall diameter
The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications.

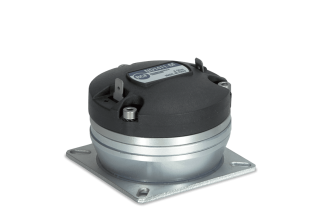

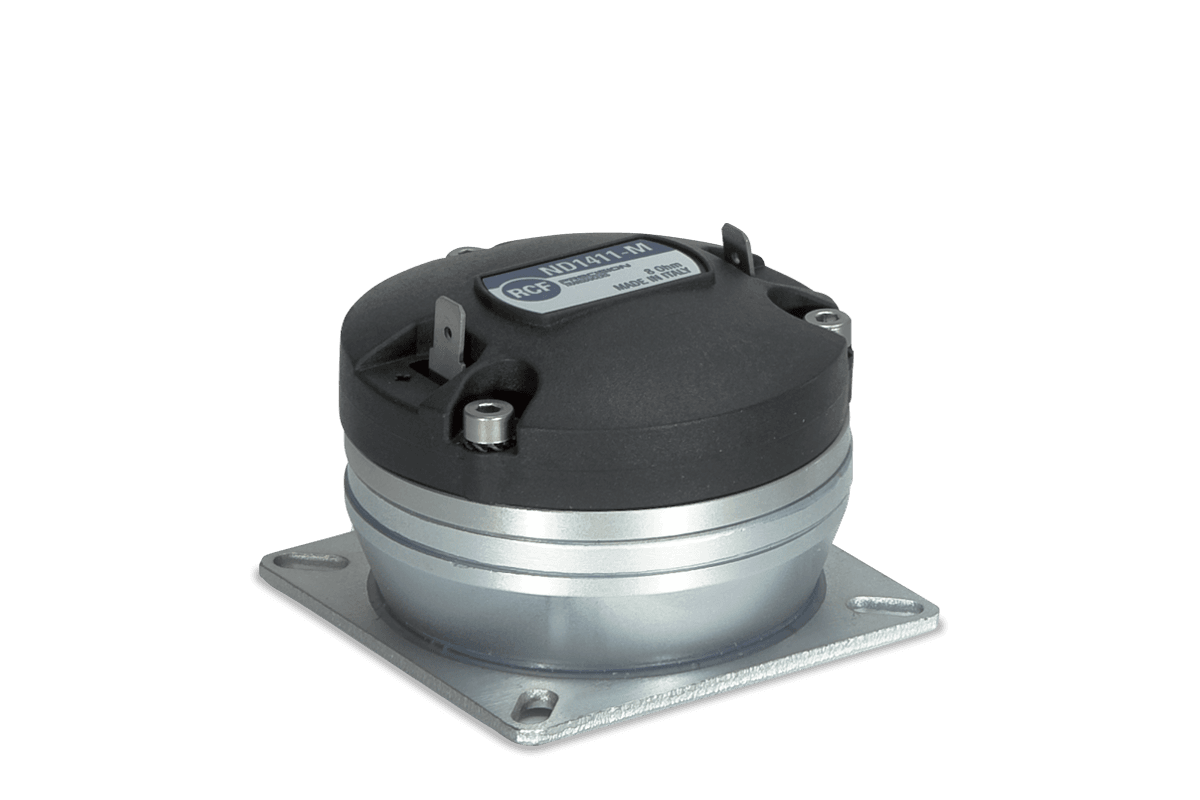

RCF ND1411-M
98,52 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 1.5-inch Diaphragm, 1-inch Exit Throat
☑ 50W continuous program power handling
☑ Frequency range: 1500Hz - 20kHz
☑ Optimized geometry radial phase plug
☑ Very compact size for array applications
☑ Neodymium magnet assembly
☑ High power handling in only 70mm overall diameter
The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.0 inch / 25 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 50 W |
| Potenza | 25 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 1500 - 20000 Hz |
| Materiale Diaframma | Mylar |
| Materiale della sospensione | Mylar |
| Design della sospensione | Radial |
| Impedenza Minima (ohm) | 7.00 ohm |
| Diametro Bobina | 1.5 inch / 38 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Nomex |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.7 T |
| Design del Rifasatore | 10 radial slots |
| Materiale del Rifasatore | PP Composite |
| Magnete | Neodymium |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 4.40 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 69 mm / 2.72 inches |
| Altezza complessiva | 51 mm / 2.01 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 0.69 kg / 1.52 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 65 mm / 2.56 inches |
| Larghezza imballaggio | 95 mm / 3.74 inches |
| Profondità imballaggio | 97 mm / 3.82 inches |
| Peso imballaggio | 0.72 kg / 1.59 lbs |
