Caratteristiche
☑ 1.75-inch PKX dome
☑ Kapton former
☑ 140W continuous program power handling @ 8Ω
☑ Frequency range: 1200Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ Ceramic magnet
☑ Recommended for 2-way speaker design
The CDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size, 1.75" PKX dome, and the low recommended crossover point make this transducer ideal for point source two-way cabinet designs. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ceramic magnets, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.

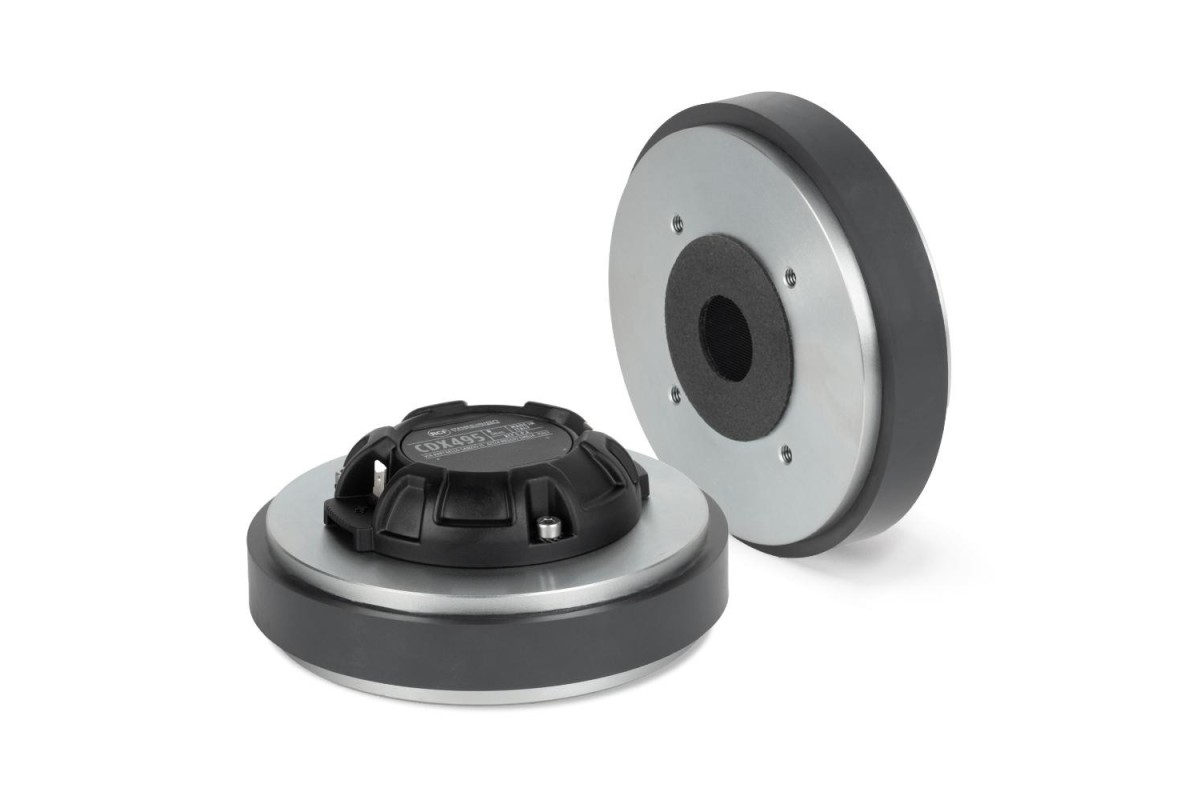

RCF CDX495
114,07 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 1.75-inch PKX dome
☑ Kapton former
☑ 140W continuous program power handling @ 8Ω
☑ Frequency range: 1200Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Copper inductance ring for extended response
☑ Ceramic magnet
☑ Recommended for 2-way speaker design
The CDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size, 1.75" PKX dome, and the low recommended crossover point make this transducer ideal for point source two-way cabinet designs. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ceramic magnets, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of 109 dB.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.0 inch / 25 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 140 W |
| Potenza | 70 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 1200 - 20000 Hz |
| Materiale Diaframma | PKX Polymer |
| Materiale della sospensione | PKX Polymer |
| Design della sospensione | Flat |
| Impedenza Minima (ohm) | 6.50 ohm |
| Diametro Bobina | 1.75 inch / 44 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.8 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | PP Composite |
| Magnete | Ceramic |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 7.50 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 134 mm / 5.28 inches |
| Altezza complessiva | 56 mm / 2.2 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 2.46 kg / 5.42 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 68 mm / 2.68 inches |
| Larghezza imballaggio | 153 mm / 6.02 inches |
| Profondità imballaggio | 155 mm / 6.1 inches |
| Peso imballaggio | 2.63 kg / 5.8 lbs |
15100025
