Caratteristiche
☑ 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 500Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Aluminium rear cover and front adaptor
☑ Copper inductance ring for extended response
☑ Vented suspension system

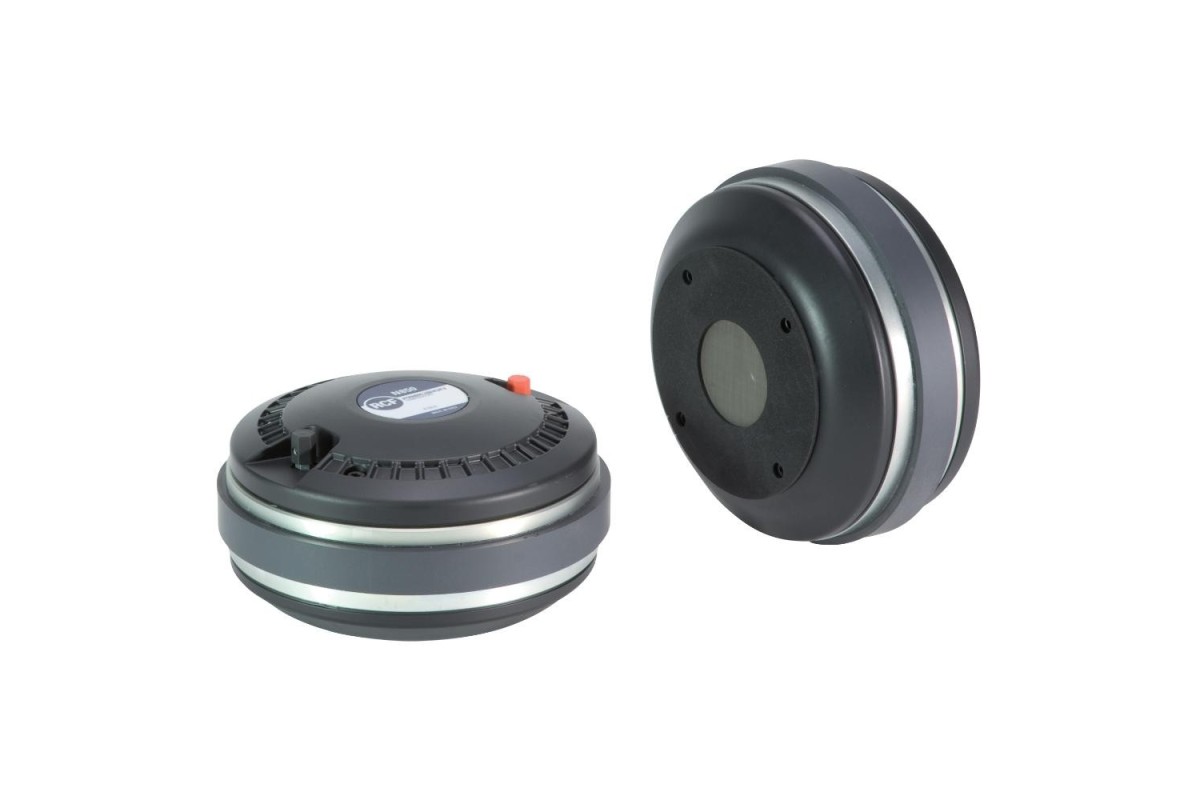

The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on Mylar vented design. The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.
RCF N850
274,81 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 500Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Aluminium rear cover and front adaptor
☑ Copper inductance ring for extended response
☑ Vented suspension system
The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on Mylar vented design. The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 2.0 inch / 51 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 180 W |
| Potenza | 90 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 500 - 20000 Hz |
| Materiale Diaframma | Pure Titanium |
| Materiale della sospensione | Mylar |
| Design della sospensione | Radial |
| Impedenza Minima (ohm) | 8.80 ohm |
| Diametro Bobina | 3.0 inch / 76 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.8 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | PP Composite |
| Magnete | Ceramic |
| Anelli demodulanti bobina | Copper |
| Informazioni di montaggio | |
| Diametro complessivo | 180 mm / 7.09 inches |
| Altezza complessiva | 95 mm / 3.74 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 6 kg / 13.23 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 114 mm / 4.49 inches |
| Larghezza imballaggio | 203 mm / 7.99 inches |
| Profondità imballaggio | 205 mm / 8.07 inches |
| Peso imballaggio | 7 kg / 15.43 lbs |
