Caratteristiche
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 700Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Titanium diaphragm
☑ Copper inductance ring for extended response
☑ Vented, damped, low distortion suspension system
☑ Ceramic magnet assembly
The CD650 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented Polyester design for low distorsion. Voice coil assembly is designed using high temperature kapton former.

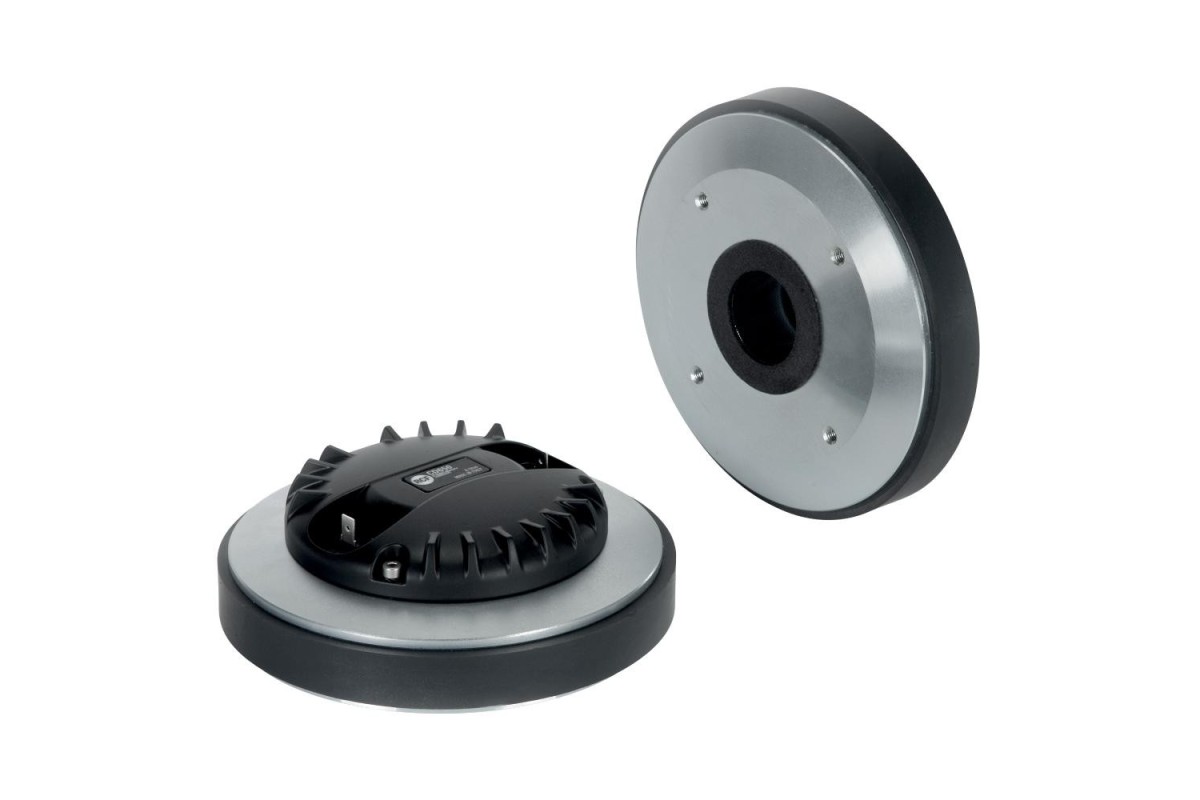

RCF CD650
181,48 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
☑ 180W continuous program power handling
☑ Frequency range: 700Hz - 20kHz
☑ 3-slot optimized geometry phase plug
☑ Titanium diaphragm
☑ Copper inductance ring for extended response
☑ Vented, damped, low distortion suspension system
☑ Ceramic magnet assembly
The CD650 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented Polyester design for low distorsion. Voice coil assembly is designed using high temperature kapton former.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.4 inch / 36 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 180 W |
| Potenza | 90 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 700 - 20000 Hz |
| Materiale Diaframma | Pure Titanium |
| Materiale della sospensione | Polyester |
| Design della sospensione | Flat |
| Impedenza Minima (ohm) | 7.50 ohm |
| Diametro Bobina | 2.5 inch / 63 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.9 T |
| Design del Rifasatore | 3 slot |
| Materiale del Rifasatore | Aluminum |
| Magnete | Ceramic |
| Anelli demodulanti bobina | Copper |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 9.80 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 165 mm / 6.5 inches |
| Altezza complessiva | 56 mm / 2.2 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 4.33 kg / 9.55 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 75 mm / 2.95 inches |
| Larghezza imballaggio | 188 mm / 7.4 inches |
| Profondità imballaggio | 190 mm / 7.48 inches |
| Peso imballaggio | 4.66 kg / 10.27 lbs |
