Caratteristiche
☑ 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver
☑ 100W continuous program power handling
☑ Frequency range: 1200Hz - 20kHz
☑ 2-slot optimized geometry phase plug
☑ Polyester diaphragm
☑ Vented suspension system
☑ Ceramic magnet assembly
The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat. The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.

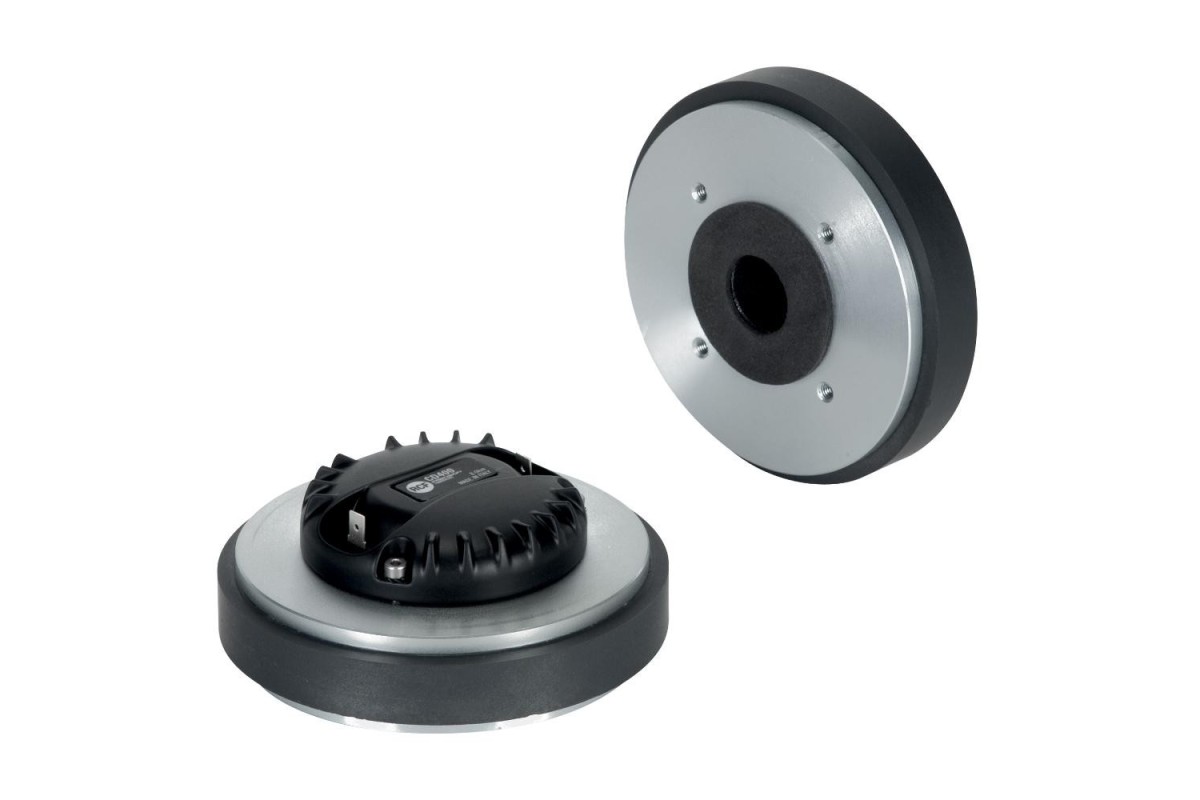

RCF CD400
99,55 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver
☑ 100W continuous program power handling
☑ Frequency range: 1200Hz - 20kHz
☑ 2-slot optimized geometry phase plug
☑ Polyester diaphragm
☑ Vented suspension system
☑ Ceramic magnet assembly
The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat. The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.
close
| Specifiche generali | |
|---|---|
| Diametro gola | 1.0 inch / 25 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 100 W |
| Potenza | 50 W |
| Sensibilità (dB) | 109 dB |
| Gamma di frequenza | 1200 - 20000 Hz |
| Materiale Diaframma | Polyester |
| Materiale della sospensione | Polyester |
| Design della sospensione | Flat |
| Impedenza Minima (ohm) | 6.50 ohm |
| Diametro Bobina | 1.75 inch / 44 mm |
| Materiale di avvolgimento della bobina | Edgewound Aluminum |
| Design del former della bobina | Straight - Kapton |
| Numero di strati | 1 |
| Strati bobina (tipologia) | outside |
| Densità del flusso magnetico (T) | 1.8 T |
| Design del Rifasatore | 2 slot |
| Materiale del Rifasatore | PP Composite |
| Magnete | Ceramic |
| Parametri di Thiele & Small | |
| Fattore Bl (Bl) (T x m) | 7.50 T x m |
| Informazioni di montaggio | |
| Diametro complessivo | 134 mm / 5.28 inches |
| Altezza complessiva | 52 mm / 2.05 inches |
| Montaggio | 4 x 6 mm threaded holes at 90° |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Peso | 2.46 kg / 5.42 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 68 mm / 2.68 inches |
| Larghezza imballaggio | 153 mm / 6.02 inches |
| Profondità imballaggio | 155 mm / 6.1 inches |
| Peso imballaggio | 2.63 kg / 5.8 lbs |
