Features
☑ Next Gen Titanium diaphragm for higher sensitivity and extended high frequency
☑ 113 dB 1W / 1m average sensitivity
☑ 1.5 inch throat exit
☑ 4 inch edgewound aluminium voice coil
☑ 320W max. program power handling
☑ HF copper sleeve for reduced distortion and increased output
☑ BEM optimized 4-slot metal alloy phase plug
NSD4020Ti2 is a 2 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.

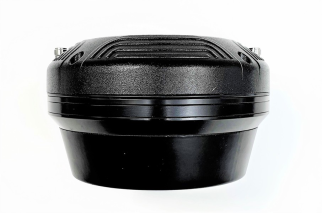

18 Sound ND4020Ti2
491,90 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ Next Gen Titanium diaphragm for higher sensitivity and extended high frequency
☑ 113 dB 1W / 1m average sensitivity
☑ 1.5 inch throat exit
☑ 4 inch edgewound aluminium voice coil
☑ 320W max. program power handling
☑ HF copper sleeve for reduced distortion and increased output
☑ BEM optimized 4-slot metal alloy phase plug
NSD4020Ti2 is a 2 inch exit neodymium compression driver designed for extremely high quality, high output sound system applications. Featuring a four inch copper-clad aluminum voice-coil and dome, the pure titanium membrane with integral surround has been optimized for high sensitivity and efficiency and an extended high frequency region. While maintaining a broad piston band and low distortion the results are maximum sound output with natural sound character and exceptional clarity up to the highest end of the frequency spectrum.
close
| Specifications | |
|---|---|
| Throat Diameter | 51 mm (2.0 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.9 Ω |
| Nominal Power Handling | 160 W |
| Continuous Power Handling | 320 W |
| Sensitivity | 113.0 dB |
| Frequency Range | 0.6 - 20.0 kHz |
| Recommended Crossover | 0.8 kHz |
| Voice Coil Diameter | 100 mm (4.0 in) |
| Winding Material | Aluminum |
| Diaphragm Material | Titanium |
| Flux Density | 2.0 T |
| Magnet Material | Neodymium |
| Mounting and Shipping Info | |
| Overall Diameter | 150 mm (5.91 in) |
| Depth | 87 mm (3.43 in) |
| Net Weight | 3.4 kg (7.5 lb) |
| Shipping Weight | 3.8 kg (8.38 lb) |
| Shipping Box | 215 x 195 x 110 mm (8.46 x 7.68 x 4.33 in) |
DRV204020TI08NA
Scheda dati
- Pollici
- 1.5
