Features
☑ 111 dB 1W / 1m average sensitivity
☑ 1,5 inch exit throat
☑ 4 inch edgewound aluminium voice coil
☑ 320W max. program power rating
☑ True Piston Motion TiN coated titanium diaphragm
☑ Copper ring reduces inductance modulation distortion and increases high frequency output
☑ Ultra high precision diaphragm centering system for improved performances and lifespan
☑ BEM optimized 4-slot metal alloy phase-plug
☑ Available also in 1.4" and 2" exit versions

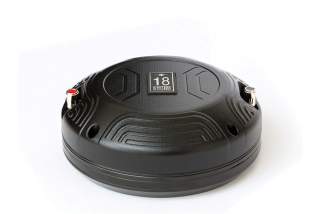

18 Sound NSD4014N
530,94 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 111 dB 1W / 1m average sensitivity
☑ 1,5 inch exit throat
☑ 4 inch edgewound aluminium voice coil
☑ 320W max. program power rating
☑ True Piston Motion TiN coated titanium diaphragm
☑ Copper ring reduces inductance modulation distortion and increases high frequency output
☑ Ultra high precision diaphragm centering system for improved performances and lifespan
☑ BEM optimized 4-slot metal alloy phase-plug
☑ Available also in 1.4" and 2" exit versions
close
| Specifications | |
|---|---|
| Throat Diameter | 40 mm (1.5 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 9.2 Ω |
| Nominal Power Handling | 1160 W |
| Continuous Power Handling2 | 320 W |
| Sensitivity3 | 111.0 dB |
| Frequency Range | 0.8 - 20.0 kHz |
| Recommended Crossover4 | 0.8 kHz |
| Voice Coil Diameter | 100 mm (4.0 in) |
| Winding Material | Aluminum |
| Diaphragm Material | Nitride coated Titanium |
| Flux Density | 2.0 T |
| Magnet Material | Neodymium |
| Mounting and Shipping Info | |
| Overall Diameter | 150 mm (5.91 in) |
| Depth | 57 mm (2.24 in) |
| Net Weight | 3.2 kg (7.05 lb) |
| Shipping Weight | 3.6 kg (7.94 lb) |
| Shipping Box | 170 x 170 x 80 mm (6.69x6.69x3.15 in) |
DRV154014TN08NA
Scheda dati
- Pollici
- 1.5
