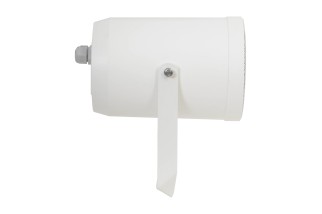

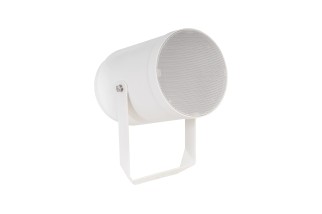

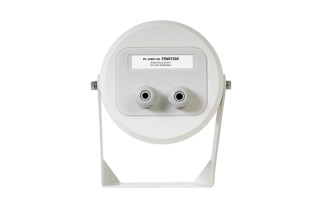

Sound projector with 100 V line transformer and low impedance. EN 54 certified
☑ Loudspeaker for voice alarm and fire evacuation systems, 20 W
☑ EN 54-24 certificate
☑ Exceptional sound for voice and musical ambience.
☑ Great sound coverage
☑ Suitable for indoor and outdoor PA installations IP66 protection
FONESTAR PF-1020T-EN
168,12 €
Tasse incluse
Spedito entro 5/7 Giorni
Sound projector with 100 V line transformer and low impedance. EN 54 certified
☑ Loudspeaker for voice alarm and fire evacuation systems, 20 W
☑ EN 54-24 certificate
☑ Exceptional sound for voice and musical ambience.
☑ Great sound coverage
☑ Suitable for indoor and outdoor PA installations IP66 protection
close
| FEATURES: | Loudspeaker for voice alarm system EN 54 |
|---|---|
| Sound projector. | |
| 100 V line transformer and low impedance. | |
| Prepared for outdoor use, have protection against water and anti-corrosion materials. | |
| STANDARD: | EN 54-24 certified |
| POWER: | 20 W RMS |
| SPEAKERS: | 5'' full-range |
| RESPONSE: | 120-21,000 Hz (-10 dB) |
| IMPEDANCE: | 20 W RMS@100 V / 10 W RMS@70 V (500 Ω) |
| 10 W RMS@100 V / 5 W RMS @70 V (1000 Ω) | |
| 5 W RMS@100 V / 2.5 W RMS@70 V (2000 Ω) | |
| 2.5 W RMS@100 V / 1.25 W RMS@70 V (4000 Ω) | |
| Baja Z: 8 Ω | |
| SENSITIVITY: | 87 dB (1 W/1 m, EN 54-24) |
| 75 dB (1 W/4 m, EN 54-24) | |
| MAXIMUN SOUND PRESSURE: | 99 dB (Max. W/1 m, EN 54-24) |
| 89 dB (Max. W/4 m, EN 54-24) | |
| COVERAGE ANGLE: | H/V: 360º@500Hz, 230º@1kHz, 110º@2kHz, 58º@4kHz (-6 dB) |
| PROTECTION: | IP-66 |
| (EN 54-24: Type B) | |
| MATERIAL: | ABS plastic |
| Aluminium grille | |
| Ceramic connector and thermal fuse | |
| Double cable inlet and outlet | |
| Stainless steel screws | |
| Aluminium mount | |
| SWITCH: | W selector in high Z and low Z |
| CONNECTORS: | Ceramic connector for cable 3.2 mm Ø max. |
| Cable grommet for max. 8 mm² hose. | |
| TEMPERATURE RANGE: | Operation: -25ºC - +70ºC |
| COLOUR: | White (RAL 9010) |
| DIMENSIONS: | 137 mm Ø x 200 mm depth |
| WEIGHT: | 1.2 kg |
PF-1020T-EN
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521029988
