Bidirectional sound projector in compliance with EN 54
☑ In compliance with EN 54-24 standard
☑ Great coverage
☑ Strong and durable construction
☑ Simple installation with new junction box

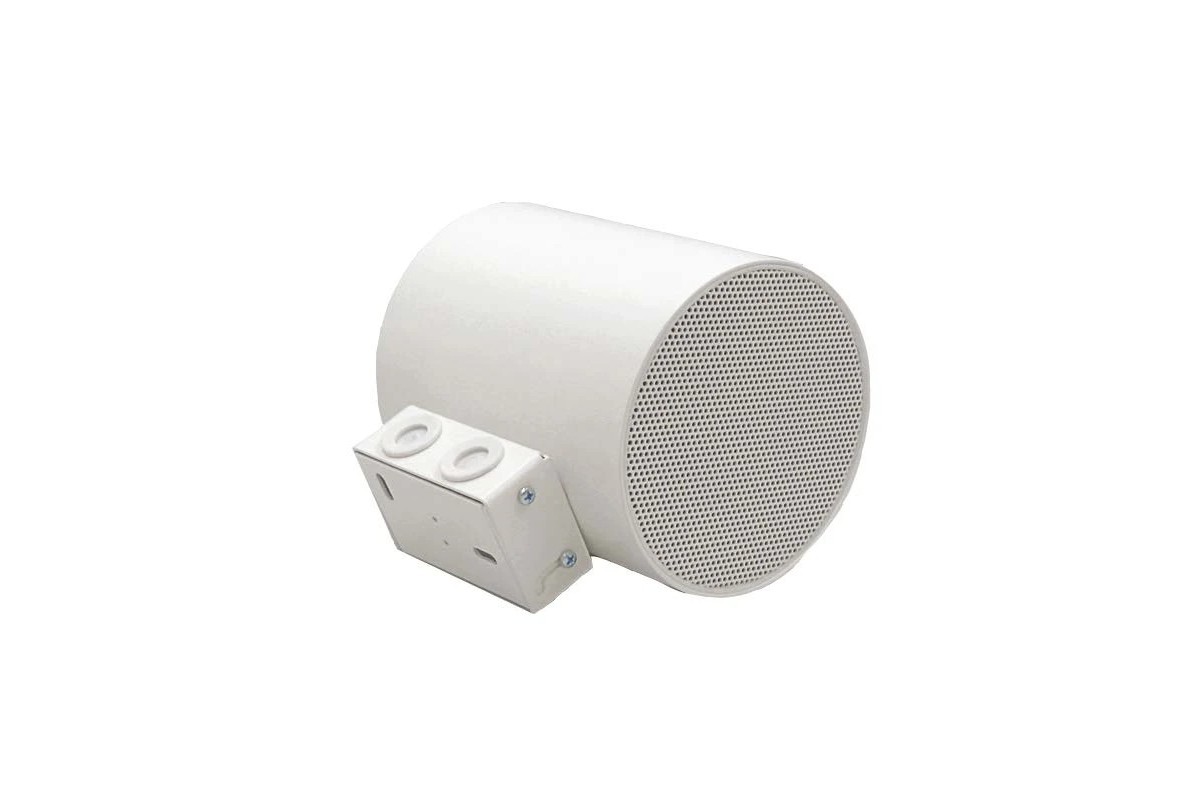

FONESTAR PF-55TD-EN
313,55 €
Tasse incluse
Bidirectional sound projector in compliance with EN 54
☑ In compliance with EN 54-24 standard
☑ Great coverage
☑ Strong and durable construction
☑ Simple installation with new junction box
close
| FEATURES: | EN 54 bidirectional sound projector with 100 V line transformer. |
|---|---|
| For use in voice and fire alarm installations. | |
| Bidirectional sound with great coverage, | |
| Simple installation with new junction box. | |
| Design and construction in compliance with European standard EN 54. | |
| STANDARD: | EN 54-24 certified |
| POWER: | 10 W RMS |
| LOUDSPEAKER: | 2 x 5'' full-range 8 Ω |
| RESPONSE: | 145-15,900 Hz (-10 dB) |
| IMPEDANCE: | 10 W RMS@100 V (1,000 Ω) |
| 6 W RMS@100 V (1,667 Ω) | |
| 3 W RMS@100 V (3,333 Ω) | |
| 1.5 W RMS@100 V (6.433 Ω) | |
| SENSITIVITY: | 73.1 dB at (1W/4m, Pink Noise) |
| MAXIMUM SOUND PRESSURE: | 84.6 dB (Max. W/4m, Pink Noise) |
| DISPERSION: | 360º@500Hz, 360º@1kHz, 120@2kHz, 74º@4kHz (-6 dB) |
| MATERIAL: | Powder-coated aluminium |
| Powder-coated aluminium grille, additional bayonet fastening system | |
| Plastic press-fit connector, 2 poles | |
| Double cable inlet and outlet | |
| PROTECTION: | For indoor use EN54-24: Type A (IP-21) |
| COLOUR: | Matte White (RAL 9010) |
| DIMENSIONS: | 143 mm Ø x 168 mm depth |
| WEIGHT: | 2.5 kg |
PF-55TD-EN
Scheda dati
- Pollici
- 5
Riferimenti specifici
- ean13
- 8422521025614
