| 8" ceiling subwoofer |
| ☑ Sound and size ideally matched to the VXS and VXC series |
| ☑ Band-pass design ensures smooth, distortion-free low-frequency extension |
| ☑ Direct support for low-impedance or high-impedance connections |

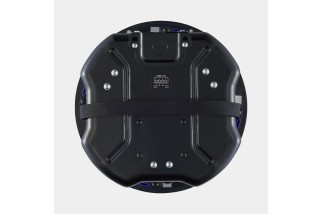

| ☑ Built-in carrying band increases safety during installation |

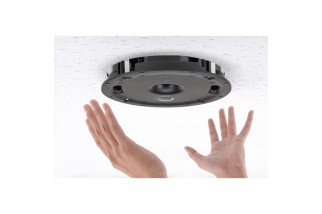

| ☑ Anti-drop tab mechanism provide secure temporary positioning during installation |
| ☑ Double-threaded speaker clamp screws for speedy tightening |

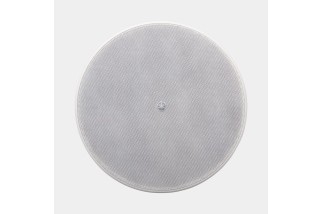

| ☑ Paintable grilles with magnetic catches |
| ☑ Black and white versions available |
| ☑ 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64") |
| ☑ AB-C8S (sold separately) is required to secure safe installation of VXC8S |

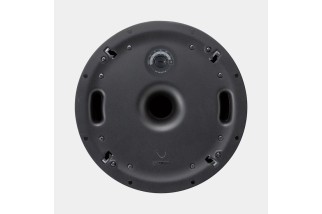

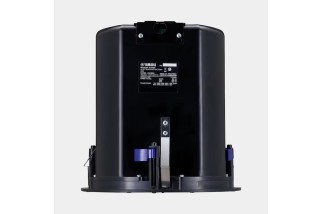

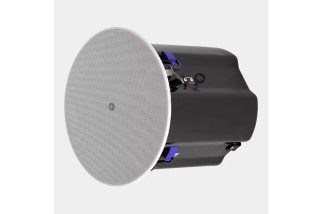

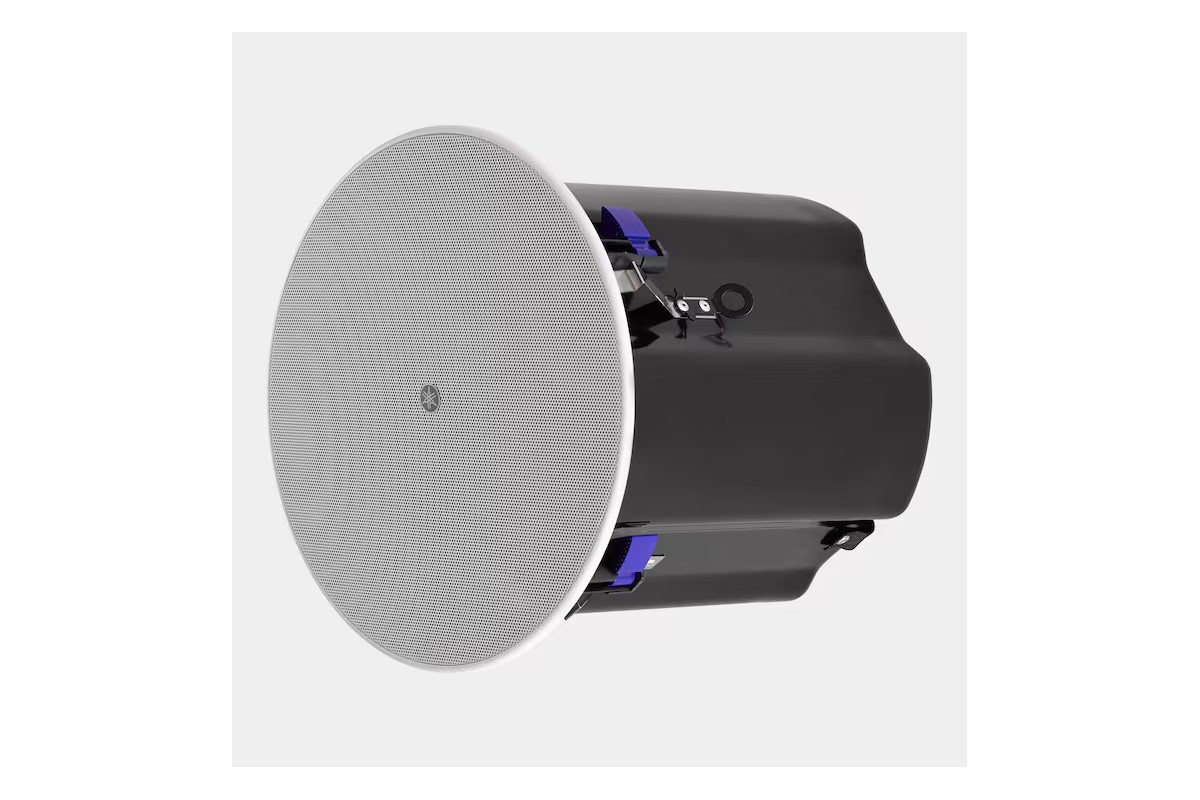

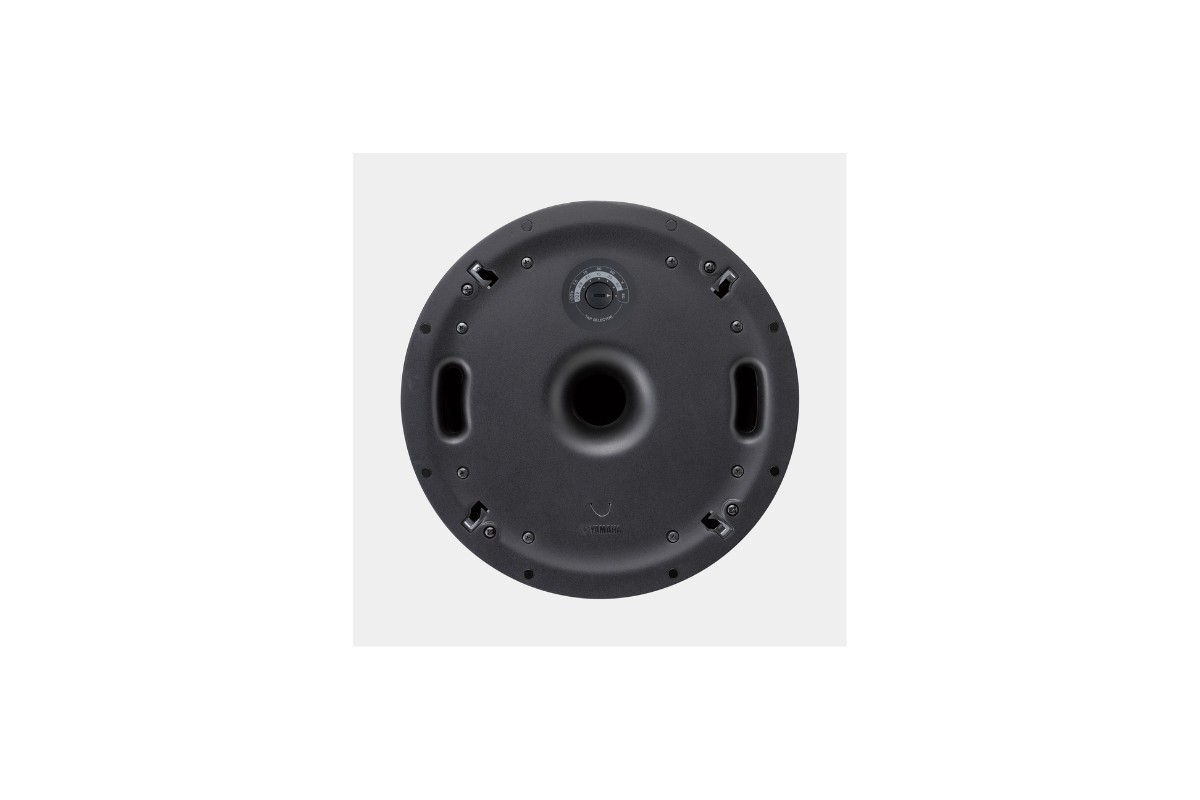

Yamaha VXC8SW
512,40 €
Tasse incluse
Spedito entro 5/7 Giorni
| 8" ceiling subwoofer |
| ☑ Sound and size ideally matched to the VXS and VXC series |
| ☑ Band-pass design ensures smooth, distortion-free low-frequency extension |
| ☑ Direct support for low-impedance or high-impedance connections |
| ☑ Built-in carrying band increases safety during installation |
| ☑ Anti-drop tab mechanism provide secure temporary positioning during installation |
| ☑ Double-threaded speaker clamp screws for speedy tightening |
| ☑ Paintable grilles with magnetic catches |
| ☑ Black and white versions available |
| ☑ 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64") |
| ☑ AB-C8S (sold separately) is required to secure safe installation of VXC8S |
close
| General specifications | Speaker type | Band-pass type Subwoofer | |
|---|---|---|---|
| Frequency range (-10dB) | 44 Hz - 200 Hz (Half-space 2π) | ||
| Nominal coverage | - | ||
| Components | LF | 8" Cone | |
| Power rating | NOISE | 100 W | |
| PGM | 200 W | ||
| PEAK | 400 W | ||
| Nominal impedance | 8 Ω | ||
| Transformer taps | 100V | 60 W, 30 W, 15 W, 7.5 W | |
| 70V | 60 W, 30 W, 15 W, 7.5 W, 3.8 W | ||
| SPL | Sensitivity (1W; 1m on axis) | 88 dB SPL (Half-space 2π) | |
| Peak (Calculated) | 114 dB SPL (Calculated, 1m) | ||

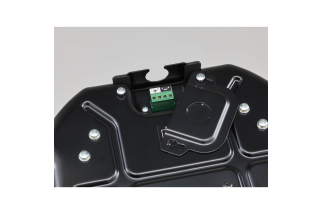

| I/O connectors | Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-) | ||
| Protection circuit | Load protection | Full-range power limiting to protect network and transducers | |
| Finish | VXC8SB: Black (approx. Munsell N3), VXC8SW: White (approx. Munsell N9.3) | ||
| Dimensions | Diameter | 324 mm (12-13/16") | |
| D | 314 mm (12-23/64") | ||
| Net weight | 8.7 kg (19.2 lbs) | ||
| Cutout size | Ø285 mm (Ø11-7/32") | ||
| Required ceiling board thickness | 5 mm - 37 mm | ||
| Accessories | Cutout Template | ||
| Packaging | Single package | ||
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | ||
| EN54-24 compliance | - | ||
| Others | Conduit tube: Ø15.4 mm - Ø21.3 mm | ||
| Options | AB-C8S: O-ring + Tile Rail kit | ||
VXC8SW
Scheda dati
- Pollici
- 8
