100 V line transformer and low impedance exponential speaker.
EN 54 certificate.
☑ Loudspeaker for fire and evacuation voice alarm systems
☑ EN 54-24 certificate
☑ High efficiency and high acoustic signal level.
☑ It allows you to cover large areas and distances
☑ Suitable for indoor and outdoor PA installations IP66 protection

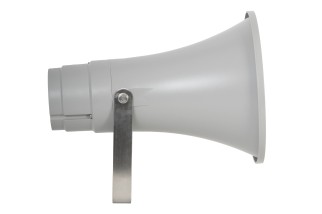

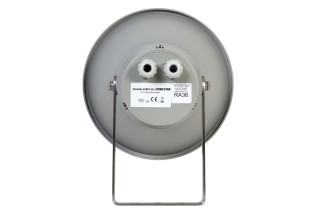

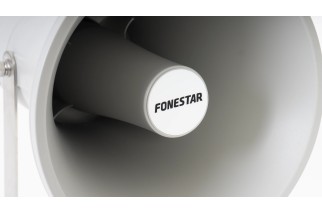

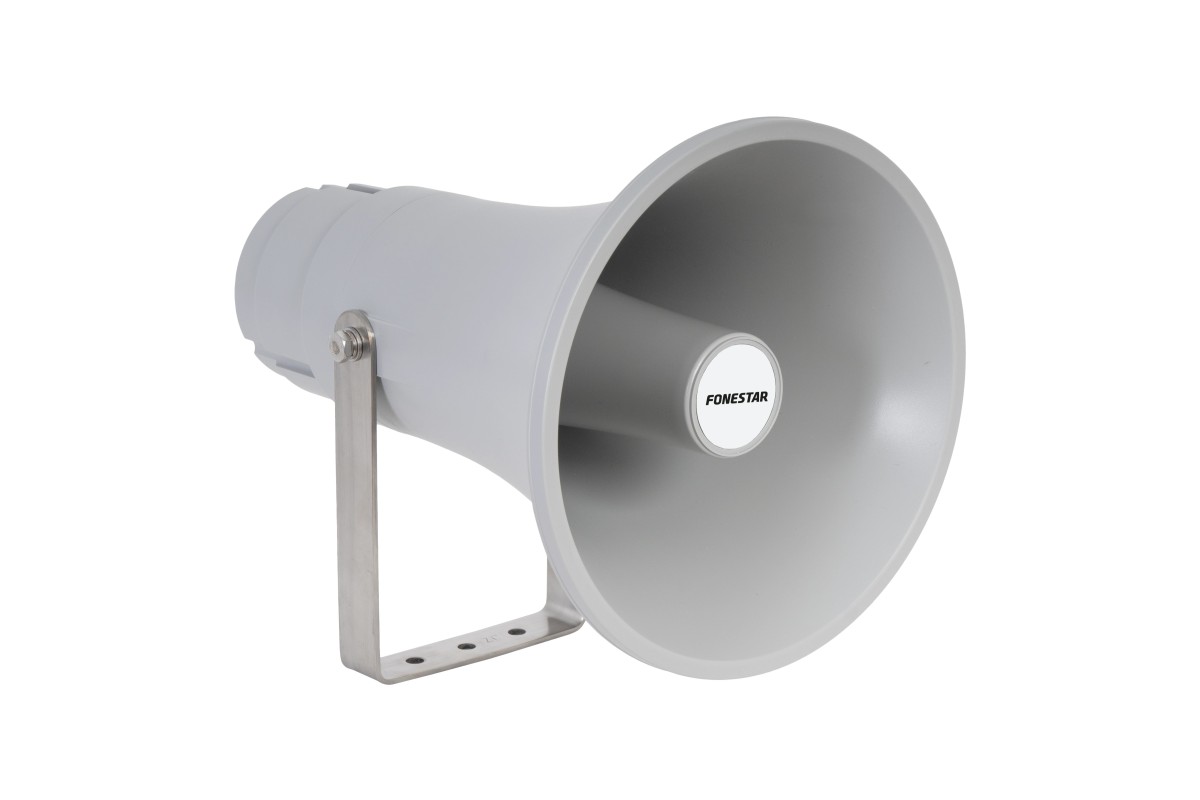

FONESTAR VULKAN-1030T-EN
205,51 €
Tasse incluse
Spedito entro 5/7 Giorni
100 V line transformer and low impedance exponential speaker.
EN 54 certificate.
☑ Loudspeaker for fire and evacuation voice alarm systems
☑ EN 54-24 certificate
☑ High efficiency and high acoustic signal level.
☑ It allows you to cover large areas and distances
☑ Suitable for indoor and outdoor PA installations IP66 protection
close
| FEATURES: | Loudspeaker for voice alarm system EN 54 |
|---|---|
| Diffuser with compression motor. | |
| 100 V line transformer and low impedance. | |
| Prepared for outdoor use, have protection against water and anti-corrosion materials. | |
| REGULATION: | EN 54-24 certificate |
| POWER: | 30 W RMS |
| SPEAKERS: | 1 compression driver |
| RESPONSE: | 250-15,000 Hz (-10 dB) |
| IMPEDANCE: | 30 W RMS@100 V / 15 W RMS@70 V (333 Ω) |
| 20 W RMS@100 V / 10 W RMS@70 V (500 Ω) | |
| 10 W RMS@100 V / 5 W RMS@70 V (1000 Ω) | |
| 5 W RMS@100 V / 2.5 W RMS@70 V (2000 Ω) | |
| Baja Z: 20 Ω | |
| SENSITIVITY: | 97.9 dB (1 W/1 m, EN 54-24) |
| 85 dB (1 W/4 m, EN 54-24) | |
| MAXIMUN SOUND PRESSURE: | 108 dB (max. W/1 m, EN 54-24) |
| 96 dB (max. W/4 m, EN 54-24) | |
| COVERAGE ANGLE: | H/V: 360º@500Hz, 110º@1kHz, 65º@2kHz, 35º@4kHz (-6 dB) |
| PROTECTIONS: | IP66 |
| (EN 54-24: Type B) | |
| MATERIAL: | ABS plastic UL94V0 |
| Ceramic connector and thermal fuse | |
| Double cable inlet and outlet | |
| Stainless steel screws | |
| Stainless steel mount | |
| SWITCH: | W selector in high Z and low Z |
| CONNECTORS: | Ceramic connector for cable 3.2 mm Ø max. |
| Cable grommet for max. 8 mm² hose. | |
| TEMPERATURE RANGE: | Operation: -25ºC - +70ºC |
| COLOUR: | Grey (RAL 7035) |
| DIMENSIONS: | 235 mm Ø x 351 mm depth |
| WEIGHT: | 2.16 kg |
| NOTE: | Correction values(EQ 1/3 oct): 100 Hz: -12 dB, 125 Hz: -12 dB, 160 Hz: -8 dB, 200 Hz: 0 dB, 250 Hz: +6 dB, 315 Hz: +12 dB, 400 Hz: +12 dB, 500 Hz: +8 dB, 630 Hz: +4 dB, 800 Hz: 0 dB, 1000 Hz: 0 dB, 1250 Hz: 0 dB, 1600 Hz: -4 dB, 2000 Hz: 0 dB, 2500 Hz: 0 dB, 3150 Hz: 0 dB, 4000 Hz: +8 dB, 5000 Hz: +12 dB, 6300 Hz: +12 dB, 8000 Hz: +12 dB, 10000 Hz: +12 dB. |
VULKAN-1030T-EN
Riferimenti specifici
- ean13
- 8422521029964
