Features
☑ 1000 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 100 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider and ventilated voice coil gap

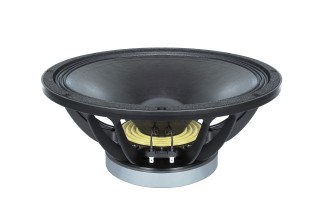

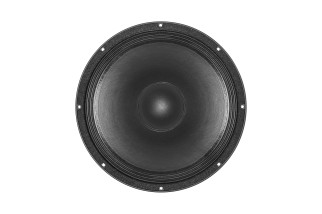

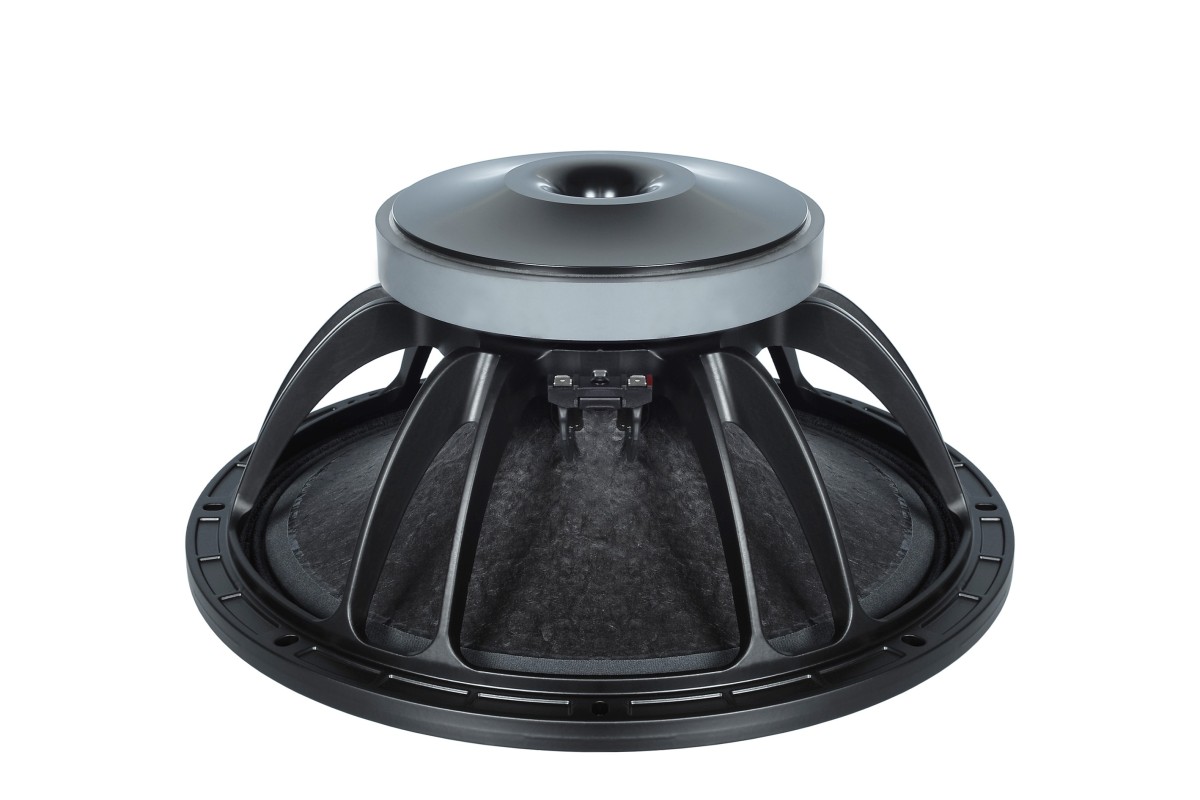

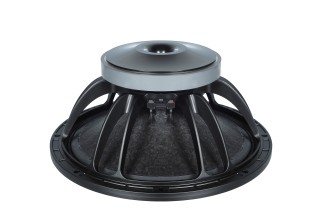

B&C 15FW76 Woofer 15" 4/8/16 Ohm – Terminali Faston
226,92 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1000 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 100 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider and ventilated voice coil gap
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.4 Ω |
| Nominal Power Handling | 500 W |
| Continuous Power Handling | 1000 W |
| Sensitivity | 100 dB |
| Frequency Range | 40 Hz - 2000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 19 mm (0.75 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 6.4 Ω |
| Continuous Power Handling | 1000 W |
| Frequency Range | 40 Hz - 2000 Hz |
| Winding Material | Copper |
| Winding Depth | 19 mm (0.75 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 500 W |
| Sensitivity | 100 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 40 Hz |
| Re | 5.1 Ω |
| Qes | 0.22 |
| Qms | 5.1 |
| Qts | 0.21 |
| Vas | 138 dm³ (4.9 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 3.9 % |
| Xmax | 7 mm |
| Xvar | 8 mm |
| Mms | 117 g |
| Bl | 26.2 Tm |
| Le | 1.4 mH |
| EBP | 182 Hz |
| Fs | 40 Hz |
| Qes | 0.22 |
| Qts | 0.21 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 7 mm |
| Mms | 117 g |
| Le | 1.4 mH |
| Re | 5.1 Ω |
| Qms | 5.1 |
| Vas | 138 dm³ (4.9 ft³) |
| η0 | 3.9 % |
| Xvar | 8 mm |
| Bl | 26.2 Tm |
| EBP | 182 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 80 dm³ (2.82 ft³) |
| Recommended Tuning | 50 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 80 dm³ (2.82 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 50 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Depth | 177 mm (6.97 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 5.5 dm³ (0.19 ft³) |
| Net Weight | 9.3 kg (20.5 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 10.6 kg (23.37 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Overall Diameter | 393 mm (15.5 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 9.3 kg (20.5 lb) |
| Shipping Weight | 10.6 kg (23.37 lb) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Depth | 177 mm (6.97 in) |
| Air Volume Occupied by Driver | 5.5 dm³ (0.19 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
