Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1500 Hz response
☑ 95 dB sensitivity
☑ FEA optimized Neodymium magnet assembly
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
B&C 15NW100 Subwoofer 15" 4/8/16 Ohm – Terminali Faston
333,06 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1500 Hz response
☑ 95 dB sensitivity
☑ FEA optimized Neodymium magnet assembly
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.7 Ω |
| Nominal Power Handling | 1000 W |
| Continuous Power Handling | 2000 W |
| Sensitivity | 95 dB |
| Frequency Range | 35 Hz - 1500 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (1 in) |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Flux Density | 1.2 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 4.7 Ω |
| Continuous Power Handling | 2000 W |
| Frequency Range | 35 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (1 in) |
| Flux Density | 1.2 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1000 W |
| Sensitivity | 95 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 34 Hz |
| Re | 3.7 Ω |
| Qes | 0.23 |
| Qms | 5.41 |
| Qts | 0.23 |
| Vas | 126.1 dm³ (4.45 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 2 % |
| Xmax | 9 mm |
| Xvar | 11 mm |
| Mms | 180 g |
| Bl | 24.54 Tm |
| Le | 1.74 mH |
| EBP | 148 Hz |
| Fs | 34 Hz |
| Qes | 0.23 |
| Qts | 0.23 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 9 mm |
| Mms | 180 g |
| Le | 1.74 mH |
| Re | 3.7 Ω |
| Qms | 5.41 |
| Vas | 126.1 dm³ (4.45 ft³) |
| η0 | 2 % |
| Xvar | 11 mm |
| Bl | 24.54 Tm |
| EBP | 148 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

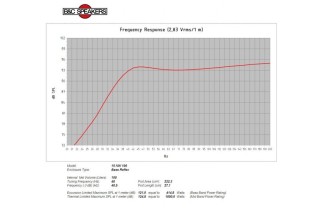

| Recommended Enclosure | 100 dm³ (3.53 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 100 dm³ (3.53 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |

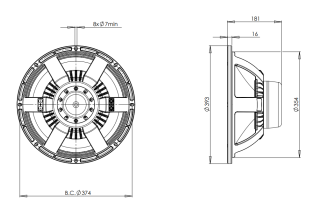

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Depth | 181 mm (7.1 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Air Volume Occupied by Driver | 6 dm³ (0.21 ft³) |
| Net Weight | 8.65 kg (19.07 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 9.95 kg (21.94 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
ALT15NW1004
Scheda dati
- Pollici
- 15"
