Features
☑ 3400 W continuous program power capacity
☑ 116 mm (4.5 in) split winding copper voice coil
☑ 35 - 1500 Hz response
☑ 96 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

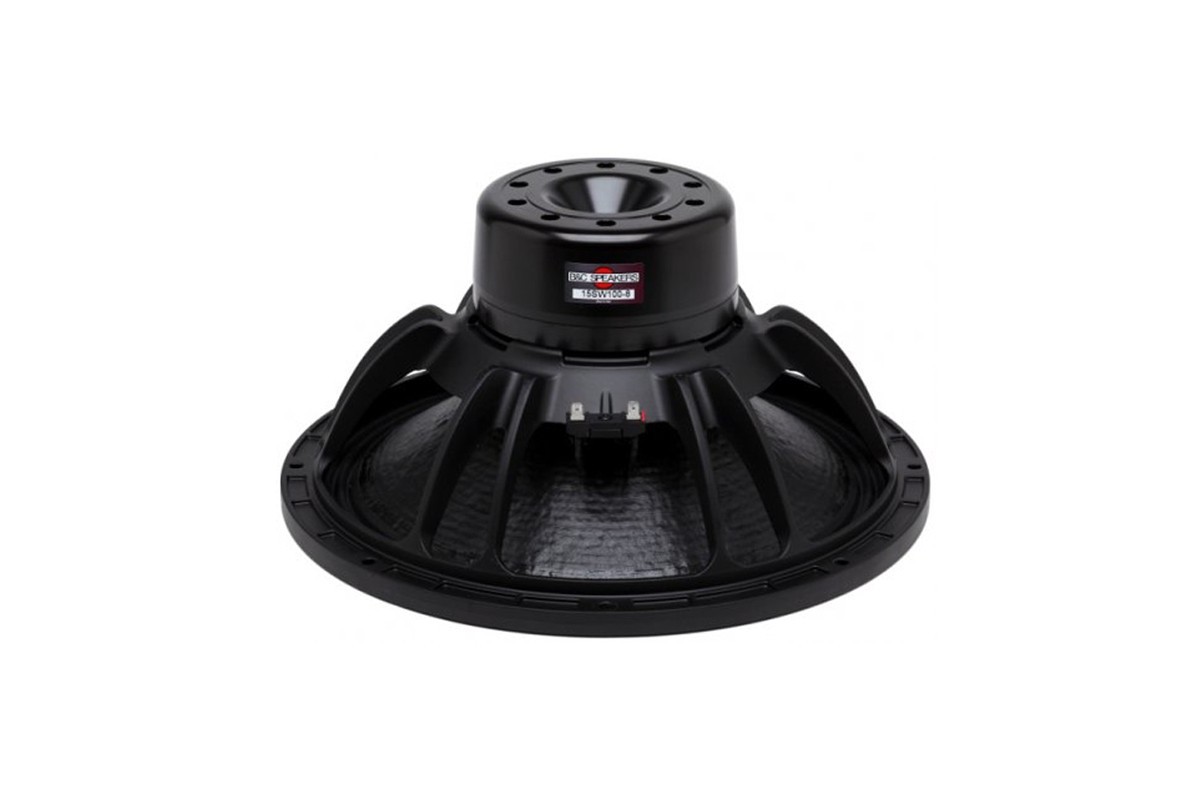

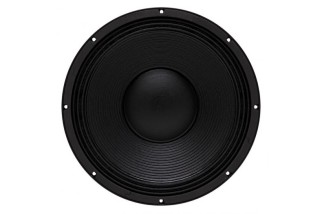

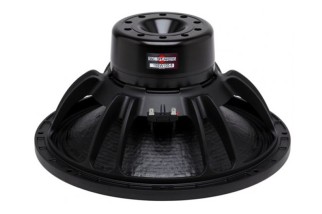

B&C 15SW115 Subwoofer 15" 4/8 Ohm – Terminali Faston
527,04 €
Tasse incluse
Spedizione 24/48h
Features
☑ 3400 W continuous program power capacity
☑ 116 mm (4.5 in) split winding copper voice coil
☑ 35 - 1500 Hz response
☑ 96 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.2 Ω |
| Nominal Power Handling | 1700 W |
| Continuous Power Handling | 3400 W |
| Sensitivity | 96 dB |
| Frequency Range | 35 Hz - 1500 Hz |
| Voice Coil Diameter | 116 mm (4.5 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 34 mm (1.33 in) |
| Magnetic Gap Depth | 14 mm (0.55 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 4.2 Ω |
| Continuous Power Handling | 3400 W |
| Frequency Range | 35 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 34 mm (1.33 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1700 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 116 mm (4.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 14 mm (0.55 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 34 Hz |
| Re | 3.2 Ω |
| Qes | 0.23 |
| Qms | 5.8 |
| Qts | 0.22 |
| Vas | 105 dm³ (3.71 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 1.75 % |
| Xmax | 13.5 mm |
| Xvar | 13 mm |
| Mms | 212 g |
| Bl | 25.5 Tm |
| Le | 1.27 mH |
| EBP | 148 Hz |
| Fs | 34 Hz |
| Qes | 0.23 |
| Qts | 0.22 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 13.5 mm |
| Mms | 212 g |
| Le | 1.27 mH |
| Re | 3.2 Ω |
| Qms | 5.8 |
| Vas | 105 dm³ (3.71 ft³) |
| η0 | 1.75 % |
| Xvar | 13 mm |
| Bl | 25.5 Tm |
| EBP | 148 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 90 dm³ (3.2 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 90 dm³ (3.2 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |

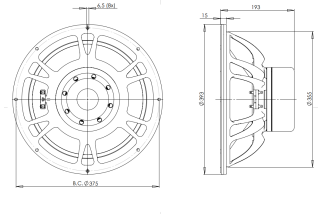

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Baffle Cutout Diameter | 353 mm (13.9 in) |
| Depth | 193 mm (7.6 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 7 dm³ (0.25 ft³) |
| Net Weight | 11.1 kg (24.47 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 12.4 kg (27.34 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
