Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1500 Hz response
☑ 95 dB sensitivity
☑ Double silicone spider with optimized compliance

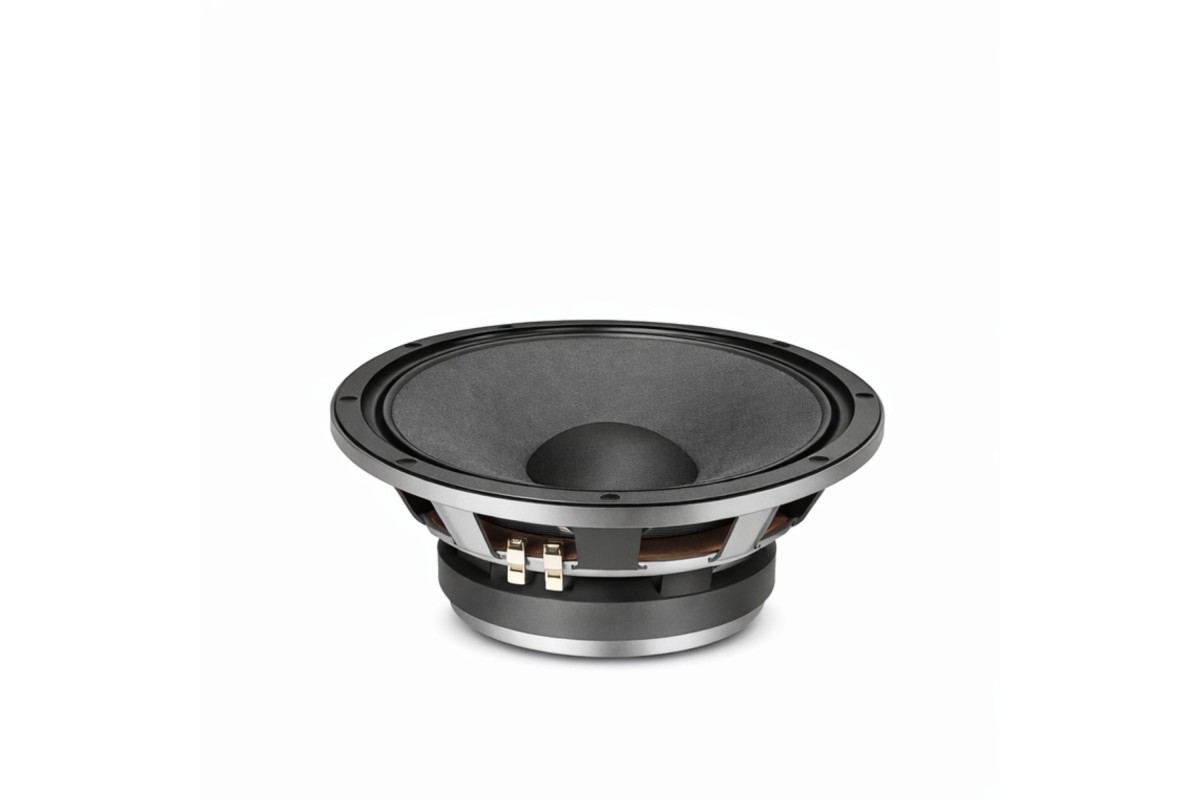

B&C 15PS100 Subwoofer 15" 4/8 Ohm – Terminali Faston
262,06 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1500 Hz response
☑ 95 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 700 W |
| Continuous Power Handling | 1400 W |
| Sensitivity | 95 dB |
| Frequency Range | 35 Hz - 1500 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 21 mm (0.83 in) |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 35 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 21 mm (0.83 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 95 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 39 Hz |
| Re | 5.2 Ω |
| Qes | 0.47 |
| Qms | 6 |
| Qts | 0.43 |
| Vas | 103 dm³ (3.64 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 1.35 % |
| Xmax | 8 mm |
| Xvar | 6.5 mm |
| Mms | 160 g |
| Bl | 21.2 Tm |
| Le | 2 mH |
| EBP | 83 Hz |
| Fs | 39 Hz |
| Qes | 0.47 |
| Qts | 0.43 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 8 mm |
| Mms | 160 g |
| Le | 2 mH |
| Re | 5.2 Ω |
| Qms | 6 |
| Vas | 103 dm³ (3.64 ft³) |
| η0 | 1.35 % |
| Xvar | 6.5 mm |
| Bl | 21.2 Tm |
| EBP | 83 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

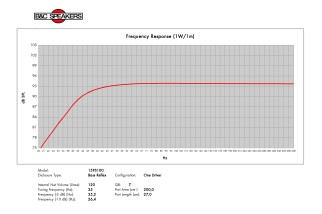

| Recommended Enclosure | 120 dm³ (4.24 ft³) |
| Recommended Tuning | 35 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 120 dm³ (4.24 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 35 Hz |

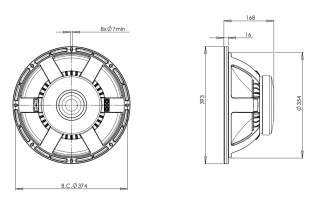

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Depth | 168 mm (6.6 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 6.3 dm³ (0.22 ft³) |
| Net Weight | 9.8 kg (21.6 lb) |
| Shipping Weight | 11.1 kg (24.47 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Overall Diameter | 393 mm (15.5 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 9.8 kg (21.6 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Depth | 168 mm (6.6 in) |
| Air Volume Occupied by Driver | 6.3 dm³ (0.22 ft³) |
| Shipping Weight | 11.1 kg (24.47 lb) |
