Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) split winding copper voice coil
☑ 40 - 1500 Hz response
☑ 95 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

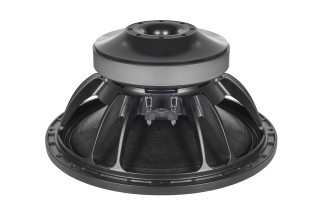

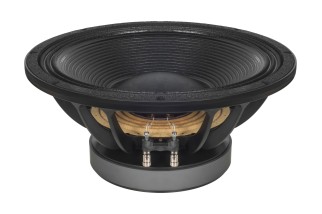

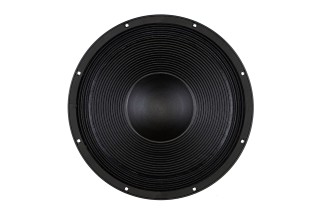

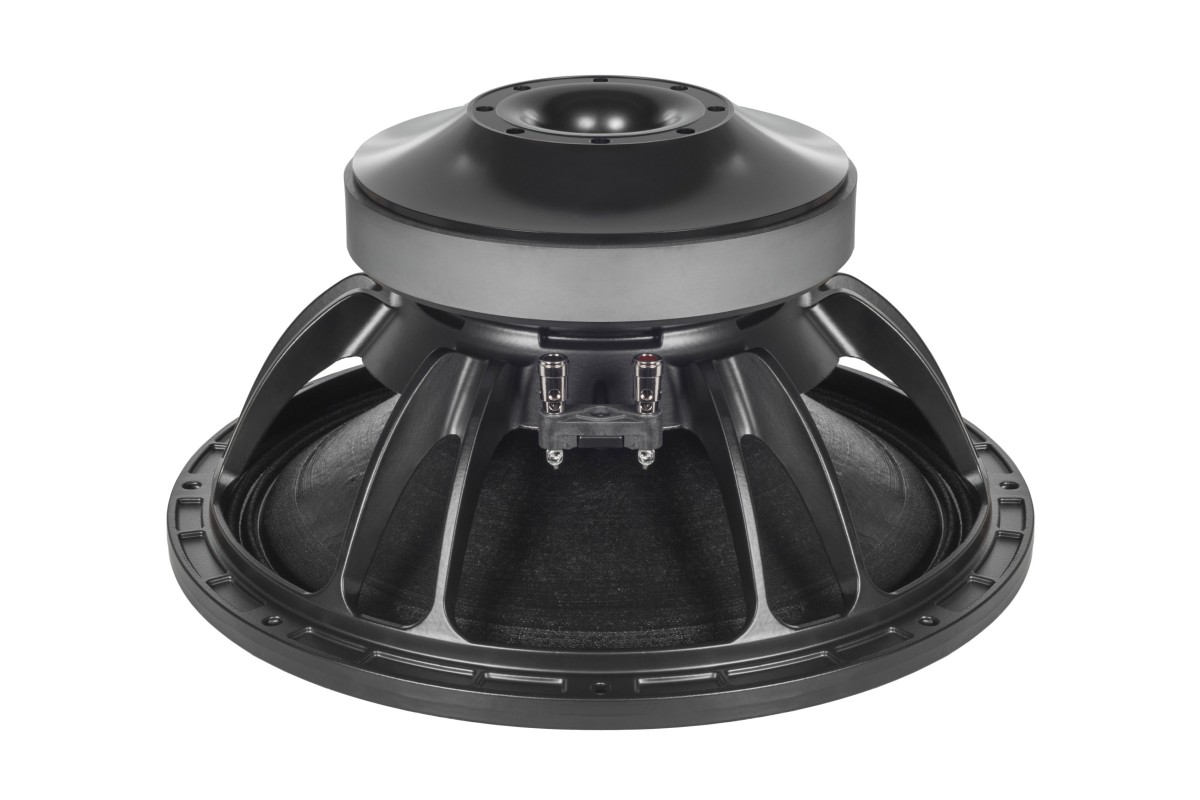

B&C 15TBW100 Subwoofer 15" 4/8 Ohm – Terminali Push Button
329,40 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) split winding copper voice coil
☑ 40 - 1500 Hz response
☑ 95 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.2 Ω |
| Nominal Power Handling | 1500 W |
| Continuous Power Handling | 3000 W |
| Sensitivity | 95 dB |
| Frequency Range | 40 Hz - 1500 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 31 mm (1.22 in) |
| Magnetic Gap Depth | 15 mm (0.59 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 4.2 Ω |
| Continuous Power Handling | 3000 W |
| Frequency Range | 40 Hz - 1500 Hz |
| Winding Material | Copper |
| Winding Depth | 31 mm (1.22 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1500 W |
| Sensitivity | 95 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 15 mm (0.59 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 39 Hz |
| Re | 3.2 Ω |
| Qes | 0.3 |
| Qms | 5.55 |
| Qts | 0.28 |
| Vas | 88 dm³ (3.11 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 1.64 % |
| Xmax | 12 mm |
| Xvar | 13.5 mm |
| Mms | 197 g |
| Bl | 22.56 Tm |
| Le | 1.64 mH |
| EBP | 130 Hz |
| Fs | 39 Hz |
| Qes | 0.3 |
| Qts | 0.28 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 12 mm |
| Mms | 197 g |
| Le | 1.64 mH |
| Re | 3.2 Ω |
| Qms | 5.55 |
| Vas | 88 dm³ (3.11 ft³) |
| η0 | 1.64 % |
| Xvar | 13.5 mm |
| Bl | 22.56 Tm |
| EBP | 130 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 95 dm³ (3.35 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 95 dm³ (3.35 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |

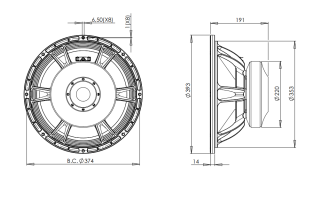

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Depth | 191 mm (7.52 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 6 dm³ (0.21 ft³) |
| Net Weight | 12.2 kg (26.9 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 13.5 kg (29.76 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
ALT15TBW1004M
Scheda dati
- Pollici
- 15"
