Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminium voice coil
☑ 45 - 3000 Hz response
☑ 99 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
☑ Double silicone spider with optimized compliance
☑ Aluminum demodulating ring allows a very low distortion figure

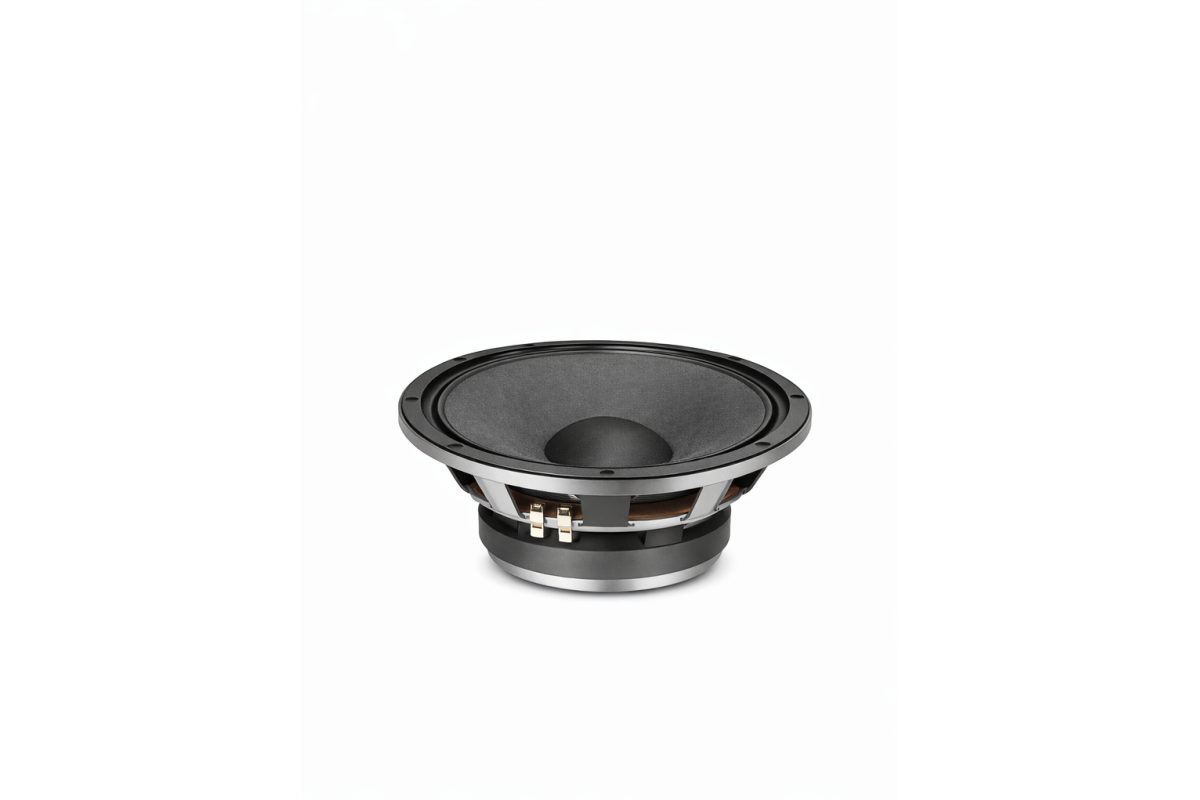

B&C 15NDL88 Woofer 15" 8 Ohm – Terminali Push Button
297,92 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminium voice coil
☑ 45 - 3000 Hz response
☑ 99 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
☑ Double silicone spider with optimized compliance
☑ Aluminum demodulating ring allows a very low distortion figure
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 3.7 Ω |
| Nominal Power Handling | 700 W |
| Continuous Power Handling | 1400 W |
| Sensitivity | 99 dB |
| Frequency Range | 45 Hz - 3000 Hz |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 21.5 mm (0.85 in) |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Flux Density | 1.05 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 3.7 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 45 Hz - 3000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 21.5 mm (0.85 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 88 mm (3.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10 mm (0.39 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 41 Hz |
| Re | 3 Ω |
| Qes | 0.29 |
| Qms | 7.5 |
| Qts | 0.28 |
| Vas | 154 dm³ (5.44 ft³) |
| Sd | 855 cm² (132.53 in²) |
| η0 | 3.5 % |
| Xmax | 8 mm |
| Xvar | 10 mm |
| Mms | 102 g |
| Bl | 16.5 Tm |
| Le | 0.9 mH |
| EBP | 141 Hz |
| Fs | 41 Hz |
| Qes | 0.29 |
| Qts | 0.28 |
| Sd | 855 cm² (132.53 in²) |
| Xmax | 8 mm |
| Mms | 102 g |
| Le | 0.9 mH |
| Re | 3 Ω |
| Qms | 7.5 |
| Vas | 154 dm³ (5.44 ft³) |
| η0 | 3.5 % |
| Xvar | 10 mm |
| Bl | 16.5 Tm |
| EBP | 141 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |

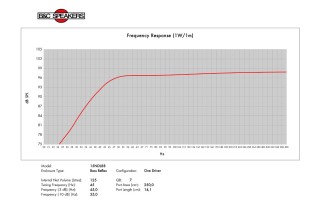

| Recommended Enclosure | 125 dm³ (4.41 ft³) |
| Recommended Tuning | 45 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 125 dm³ (4.41 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 45 Hz |

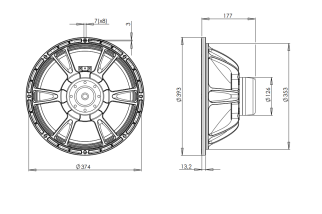

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.47 in) |
| Bolt Circle Diameter | 374 mm (14.72 in) |
| Baffle Cutout Diameter | 354 mm (13.94 in) |
| Depth | 177 mm (6.97 in) |
| Flange and Gasket Thickness | 13 mm (0.51 in) |
| Air Volume Occupied by Driver | 3.5 dm³ (0.12 ft³) |
| Net Weight | 5.7 kg (12.57 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 7 kg (15.43 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
ALT15NDL888M
Scheda dati
- Pollici
- 15"
