Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminium voice coil
☑ 45 - 3000 Hz response
☑ 99 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
☑ Double silicone spider with optimized compliance
☑ Aluminum demodulating ring allows a very low distortion figure

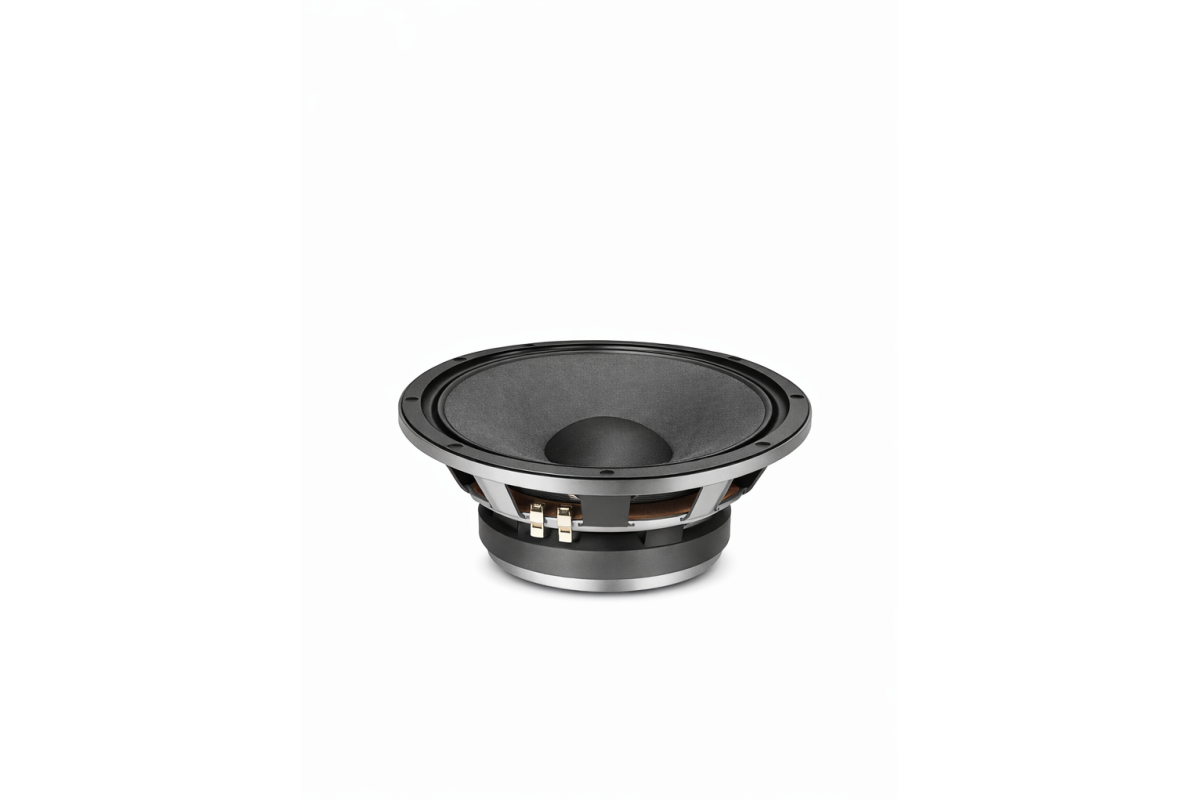

B&C 15NA100 Woofer 15" 8 Ohm – Terminali Push Button
391,62 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1400 W continuous program power capacity
☑ 88 mm (3.5 in) aluminium voice coil
☑ 45 - 3000 Hz response
☑ 99 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
☑ Double silicone spider with optimized compliance
☑ Aluminum demodulating ring allows a very low distortion figure
close
| Specifications | |
|---|---|
| Nominal Diameter | 380 mm (15 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.6 Ω |
| Nominal Power Handling | 800 W |
| Continuous Power Handling | 1600 W |
| Sensitivity | 98 dB |
| Frequency Range | 45 Hz - 2000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 23 mm (0.9 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.2 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 380 mm (15 in) |
| Minimum Impedance | 6.6 Ω |
| Continuous Power Handling | 1600 W |
| Frequency Range | 45 Hz - 2000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 23 mm (0.9 in) |
| Flux Density | 1.2 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 800 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 47 Hz |
| Re | 5.1 Ω |
| Qes | 0.29 |
| Qms | 6.1 |
| Qts | 0.28 |
| Vas | 88 dm³ (3.1 ft³) |
| Sd | 855 cm² (132.5 in²) |
| η0 | 2.9 % |
| Xmax | 10 mm |
| Xvar | 9 mm |
| Mms | 136 g |
| Bl | 26.3 Tm |
| Le | 1.2 mH |
| EBP | 162 Hz |
| Fs | 47 Hz |
| Qes | 0.29 |
| Qts | 0.28 |
| Sd | 855 cm² (132.5 in²) |
| Xmax | 10 mm |
| Mms | 136 g |
| Le | 1.2 mH |
| Re | 5.1 Ω |
| Qms | 6.1 |
| Vas | 88 dm³ (3.1 ft³) |
| η0 | 2.9 % |
| Xvar | 9 mm |
| Bl | 26.3 Tm |
| EBP | 162 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 80 dm³ (2.82 ft³) |
| Recommended Tuning | 50 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 80 dm³ (2.82 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 50 Hz |

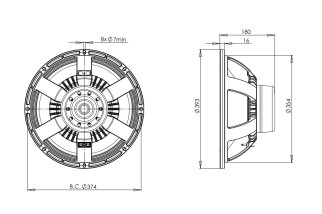

| Mounting and Shipping Info | |
| Overall Diameter | 393 mm (15.5 in) |
| Bolt Circle Diameter | 374 mm (14.7 in) |
| Baffle Cutout Diameter | 354 mm (13.9 in) |
| Depth | 180 mm (7.09 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Air Volume Occupied by Driver | 6 dm³ (0.21 ft³) |
| Net Weight | 8.6 kg (18.96 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 9.9 kg (21.83 lb) |
| Shipping Box | 425x425x224 mm (16.73x16.73x8.82 in) |
