Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 30 - 1000 Hz response
☑ 94 dB sensitivity
☑ Double silicone spider with optimized compliance
B&C 18PS100 Subwoofer 18" 4/8 Ohm – Terminali Faston
277,43 €
Tasse incluse
Spedizione 24/48h
Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 30 - 1000 Hz response
☑ 94 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4.6 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 30 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 19 mm (0.75 in) |
| Flux Density | 1.05 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 94 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 10.5 mm (0.41 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 30 Hz |
| Qes | 0.42 |
| Qts | 0.4 |
| Sd | 1210 cm² (187.55 in²) |
| Xmax | 7 mm |
| Mms | 239 g |
| Le | 1.35 mH |
| Re | 3.8 Ω |
| Qms | 9.1 |
| Vas | 251 dm³ (8.86 ft³) |
| η0 | 1.46 % |
| Xvar | 9 mm |
| Bl | 20 Tm |
| EBP | 71 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 250 dm³ (8.83 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 29 Hz |

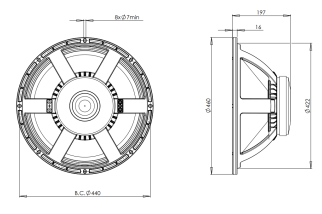

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18.11 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 10.2 kg (22.49 lb) |
| Shipping Weight | 11.8 kg (26.01 lb) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Depth | 197 mm (7.76 in) |
| Air Volume Occupied by Driver | 9.5 dm³ (0.34 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
