Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 96.5 dB sensitivity
☑ Double silicone spider with optimized compliance

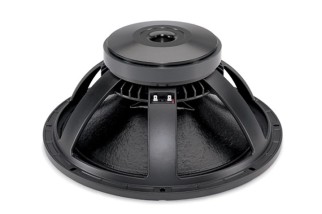

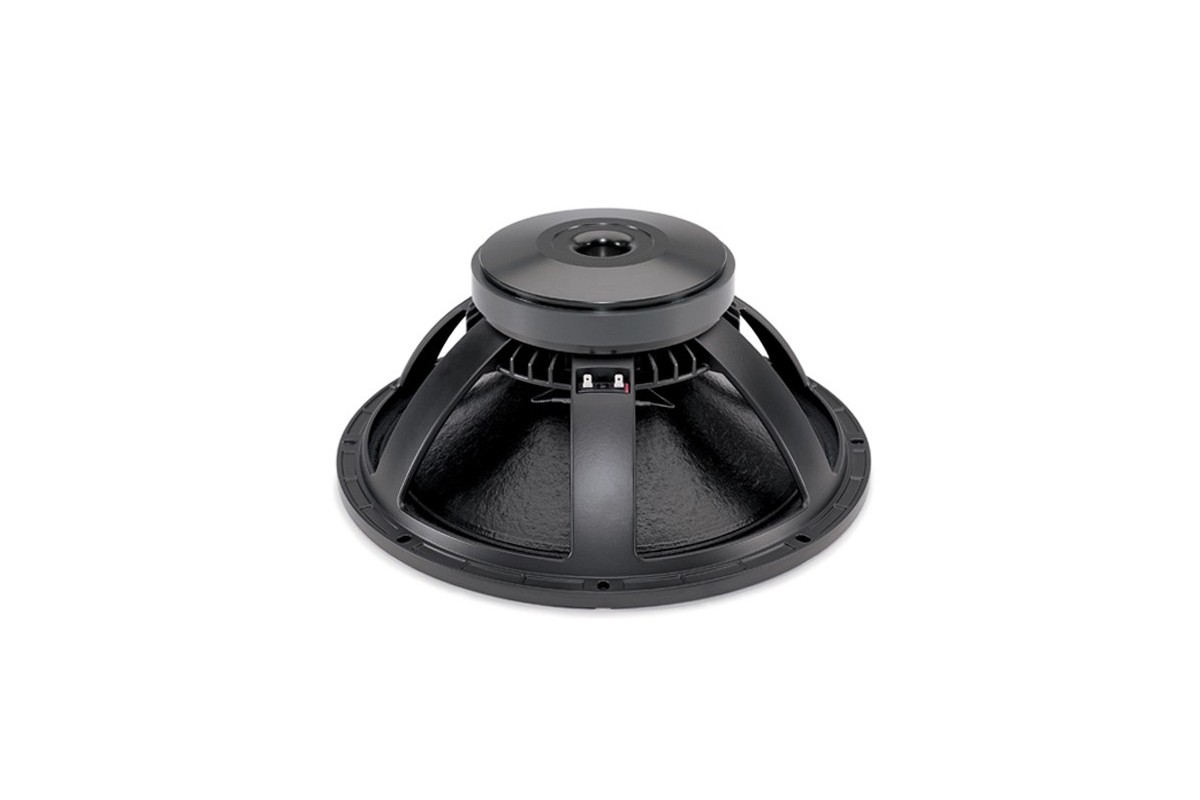

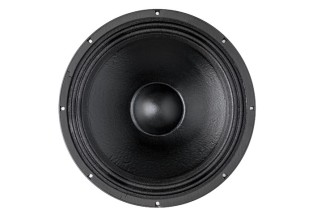

B&C 18PZB100 Subwoofer 18" 4/8 Ohm – Terminali Faston
318,42 €
Tasse incluse
Spedizione 24/48h
Features
☑ 1400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 96.5 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.2 Ω |
| Nominal Power Handling | 700 W |
| Continuous Power Handling | 1400 W |
| Sensitivity | 96.5 dB |
| Frequency Range | 40 Hz - 2000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 21 mm (0.83 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4.2 Ω |
| Continuous Power Handling | 1400 W |
| Frequency Range | 40 Hz - 2000 Hz |
| Winding Material | Copper |
| Winding Depth | 21 mm (0.83 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 700 W |
| Sensitivity | 96.5 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 38 Hz |
| Re | 4 Ω |
| Qes | 0.29 |
| Qms | 6.1 |
| Qts | 0.28 |
| Vas | 164 dm³ (5.79 ft³) |
| Sd | 1134 cm² (175.77 in²) |
| η0 | 2.95 % |
| Xmax | 8 mm |
| Xvar | 8 mm |
| Mms | 190 g |
| Bl | 25 Tm |
| Le | 1.25 mH |
| EBP | 131 Hz |
| Fs | 38 Hz |
| Qes | 0.29 |
| Qts | 0.28 |
| Sd | 1134 cm² (175.77 in²) |
| Xmax | 8 mm |
| Mms | 190 g |
| Le | 1.25 mH |
| Re | 4 Ω |
| Qms | 6.1 |
| Vas | 164 dm³ (5.79 ft³) |
| η0 | 2.95 % |
| Xvar | 8 mm |
| Bl | 25 Tm |
| EBP | 131 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 160 dm³ (5.65 ft³) |
| Recommended Tuning | 39 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Recommended Enclosure | 160 dm³ (5.65 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 39 Hz |

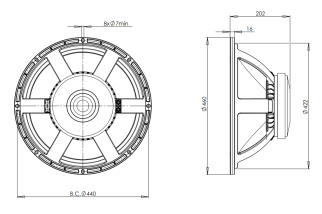

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 9.5 dm³ (0.34 ft³) |
| Net Weight | 12.2 kg (26.9 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 13.8 kg (30.42 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 12.2 kg (26.9 lb) |
| Shipping Weight | 13.8 kg (30.42 lb) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Depth | 202 mm (7.95 in) |
| Air Volume Occupied by Driver | 9.5 dm³ (0.34 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
