Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 37 - 2000 Hz response
☑ 97.6 dB sensitivity
☑ Double silicone spider with optimized compliance

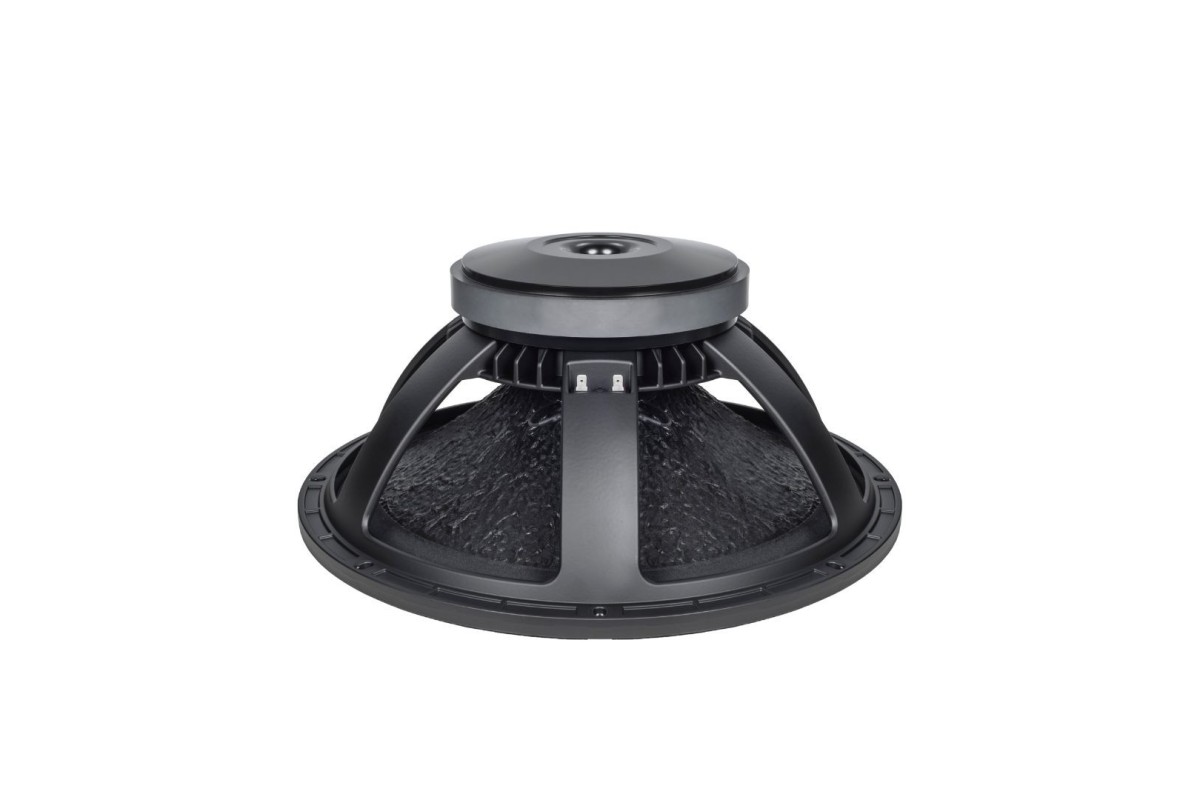

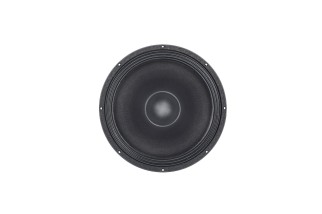

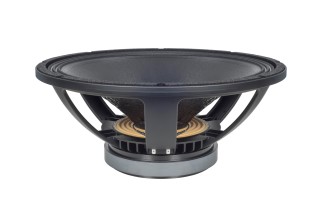

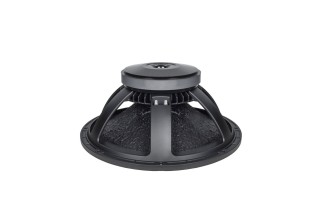

B&C 18PZW100 Subwoofer 18" 8 Ohm - Terminali Faston
300,12 €
Tasse incluse
Spedizione 24/48h
Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 37 - 2000 Hz response
☑ 97.6 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.2 Ω |
| Nominal Power Handling | 1000 W |
| Continuous Power Handling | 2000 W |
| Sensitivity | 97.6 dB |
| Frequency Range | 37 Hz - 2000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 21 mm (0.83 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 2000 W |
| Frequency Range | 37 Hz - 2000 Hz |
| Winding Material | Copper |
| Winding Depth | 21 mm (0.83 in) |
| Flux Density | 1 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 1000 W |
| Sensitivity | 97.6 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 37 Hz |
| Re | 5.1 Ω |
| Qes | 0.38 |
| Qms | 7.9 |
| Qts | 0.36 |
| Vas | 186 dm³ (6.57 ft³) |
| Sd | 1210 cm² (187.55 in²) |
| η0 | 2.32 % |
| Xmax | 8 mm |
| Xvar | 10.5 mm |
| Mms | 209 g |
| Bl | 25.5 Tm |
| Le | 1.58 mH |
| EBP | 97 Hz |
| Fs | 37 Hz |
| Qes | 0.38 |
| Qts | 0.36 |
| Sd | 1210 cm² (187.55 in²) |
| Xmax | 8 mm |
| Mms | 209 g |
| Le | 1.58 mH |
| Re | 5.1 Ω |
| Qms | 7.9 |
| Vas | 186 dm³ (6.57 ft³) |
| η0 | 2.32 % |
| Xvar | 10.5 mm |
| Bl | 25.5 Tm |
| EBP | 97 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 16 mm (0.65 in) |
| Air Volume Occupied by Driver | 9.5 dm³ (0.34 ft³) |
| Net Weight | 12.25 kg (27.01 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 13.85 kg (30.53 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 16 mm (0.65 in) |
| Net Weight | 12.25 kg (27.01 lb) |
| Shipping Weight | 13.85 kg (30.53 lb) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Depth | 202 mm (7.95 in) |
| Air Volume Occupied by Driver | 9.5 dm³ (0.34 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
