Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) split winding copper voice coil
☑ 35 - 1000 Hz response
☑ 96 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

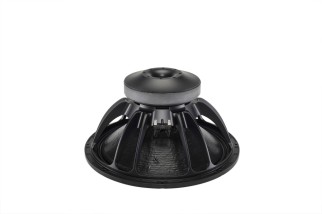

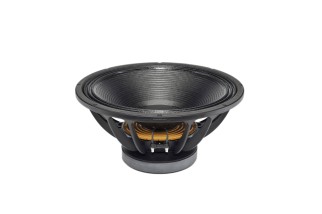

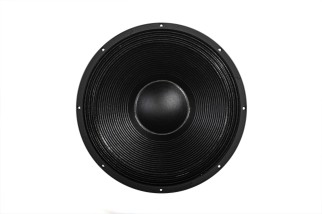

B&C 18TBW100 Subwoofer 18" 4/8 Ohm – Terminali Push Button
362,34 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) split winding copper voice coil
☑ 35 - 1000 Hz response
☑ 96 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4 Ω |
| Nominal Power Handling | 1500 W |
| Continuous Power Handling | 3000 W |
| Sensitivity | 96 dB |
| Frequency Range | 35 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 31 mm (1.22 in) |
| Magnetic Gap Depth | 15 mm (0.59 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4 Ω |
| Continuous Power Handling | 3000 W |
| Frequency Range | 35 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 31 mm (1.22 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1500 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 15 mm (0.59 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 33 Hz |
| Re | 3.2 Ω |
| Qes | 0.34 |
| Qms | 6.23 |
| Qts | 0.32 |
| Vas | 181.5 dm³ (6.41 ft³) |
| Sd | 1210 cm² (187.6 in²) |
| η0 | 1.8 % |
| Xmax | 12 mm |
| Xvar | 14 mm |
| Mms | 268 g |
| Bl | 22.8 Tm |
| Le | 1.64 mH |
| EBP | 97 Hz |
| Fs | 33 Hz |
| Qes | 0.34 |
| Qts | 0.32 |
| Sd | 1210 cm² (187.6 in²) |
| Xmax | 12 mm |
| Mms | 268 g |
| Le | 1.64 mH |
| Re | 3.2 Ω |
| Qms | 6.23 |
| Vas | 181.5 dm³ (6.41 ft³) |
| η0 | 1.8 % |
| Xvar | 14 mm |
| Bl | 22.8 Tm |
| EBP | 97 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 200 dm³ (7.06 ft³) |
| Recommended Tuning | 32 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 200 dm³ (7.06 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 32 Hz |

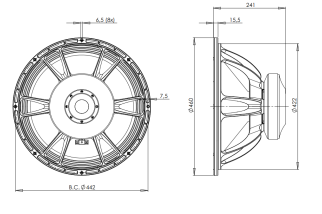

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 442 mm (17.4 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Depth | 241 mm (9.5 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 11 dm³ (0.39 ft³) |
| Net Weight | 15.4 kg (33.95 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 17 kg (37.48 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 15.4 kg (33.95 lb) |
| Shipping Weight | 17 kg (37.48 lb) |
| Bolt Circle Diameter | 442 mm (17.4 in) |
| Depth | 241 mm (9.5 in) |
| Air Volume Occupied by Driver | 11 dm³ (0.39 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
ALT18TBW1004M
Scheda dati
- Pollici
- 18"
Nuovo
