Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 32 - 1000 Hz response
☑ 98 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
B&C 18DS100 Subwoofer 18" 4/8 Ohm – Terminali Faston
468,48 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 3000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 32 - 1000 Hz response
☑ 98 dB sensitivity
☑ Excursion optimized lead wires (woven through spider)
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4 Ω |
| Nominal Power Handling | 1500 W |
| Continuous Power Handling | 3000 W |
| Sensitivity | 98 dB |
| Frequency Range | 32 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 36 mm (1.42 in) |
| Magnetic Gap Depth | 16 mm (0.63 in) |
| Flux Density | 0.7 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4 Ω |
| Continuous Power Handling | 3000 W |
| Frequency Range | 32 Hz - 1000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 36 mm (1.42 in) |
| Flux Density | 0.7 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1500 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 16 mm (0.63 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 32 Hz |
| Re | 2.5 Ω |
| Qes | 0.24 |
| Qms | 10 |
| Qts | 0.24 |
| Vas | 157 dm³ (5.54 ft³) |
| Sd | 1210 cm² (187.55 in²) |
| η0 | 2.32 % |
| Xmax | 14 mm |
| Xvar | 14 mm |
| Mms | 300 g |
| Bl | 24.3 Tm |
| Le | 2.82 mH |
| EBP | 133 Hz |
| Fs | 32 Hz |
| Qes | 0.24 |
| Qts | 0.24 |
| Sd | 1210 cm² (187.55 in²) |
| Xmax | 14 mm |
| Mms | 300 g |
| Le | 2.82 mH |
| Re | 2.5 Ω |
| Qms | 10 |
| Vas | 157 dm³ (5.54 ft³) |
| η0 | 2.32 % |
| Xvar | 14 mm |
| Bl | 24.3 Tm |
| EBP | 133 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |

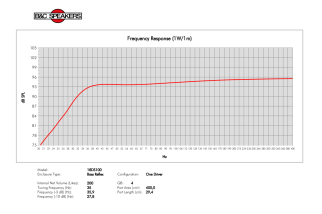

| Recommended Enclosure | 200 dm³ (7.06 ft³) |
| Recommended Tuning | 35 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 200 dm³ (7.06 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 35 Hz |

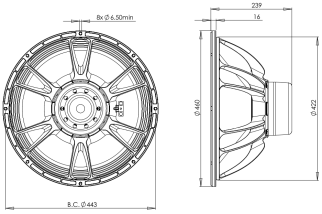

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 442 mm (17.4 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 239 mm (9.41 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 10 dm³ (0.35 ft³) |
| Net Weight | 10.5 kg (23.15 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 12.3 kg (27.12 lb) |
| Shipping Box | 500x500x300 mm (19.69x19.69x11.81 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 10.5 kg (23.15 lb) |
| Shipping Weight | 12.3 kg (27.12 lb) |
| Bolt Circle Diameter | 442 mm (17.4 in) |
| Depth | 239 mm (9.41 in) |
| Air Volume Occupied by Driver | 10 dm³ (0.35 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x500x300 mm (19.69x19.69x11.81 in) |
ALT18DS1004
Scheda dati
- Pollici
- 18"
