Features
☑ 3400 W continuous program power capacity
☑ 116 mm (4.5 in) aluminium voice coil
☑ 32 - 1000 Hz response
☑ 97 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

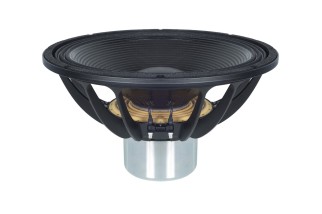

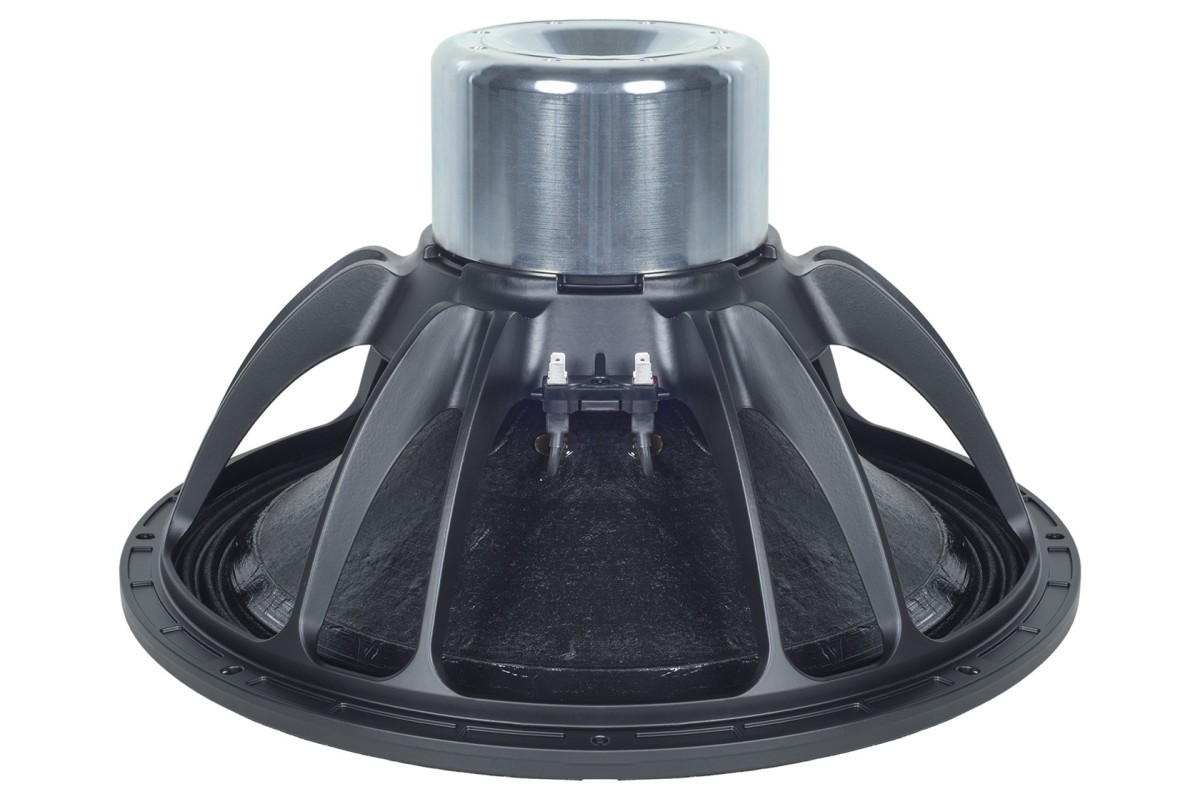

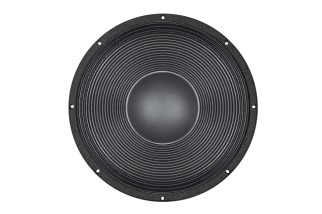

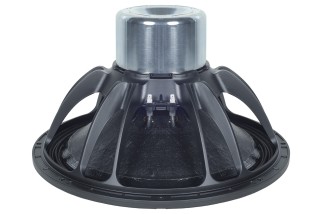

B&C 18IPAL Subwoofer 18" 1 Ohm - Termianli Faston
877,67 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 3400 W continuous program power capacity
☑ 116 mm (4.5 in) aluminium voice coil
☑ 32 - 1000 Hz response
☑ 97 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 2 Ω |
| Minimum Impedance | 2.1 Ω |
| Nominal Power Handling | 1700 W |
| Continuous Power Handling | 3400 W |
| Sensitivity | 97 dB |
| Frequency Range | 32 Hz - 1000 Hz |
| Voice Coil Diameter | 116 mm (4.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 44 mm (1.7 in) |
| Magnetic Gap Depth | 12 mm (0.47 in) |
| Flux Density | 1.5 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 2.1 Ω |
| Continuous Power Handling | 3400 W |
| Frequency Range | 32 Hz - 1000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 44 mm (1.7 in) |
| Flux Density | 1.5 T |
| Nominal Impedance | 2 Ω |
| Nominal Power Handling | 1700 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 116 mm (4.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 12 mm (0.47 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 32 Hz |
| Re | 1.3 Ω |
| Qes | 0.14 |
| Qms | 4.2 |
| Qts | 0.14 |
| Vas | 164 dm³ (5.8 ft³) |
| Sd | 1210 cm² (187.6 in²) |
| η0 | 3.3 % |
| Xmax | 20 mm |
| Xvar | 15 mm |
| Mms | 330 g |
| Bl | 24.5 Tm |
| Le | 0.65 mH |
| EBP | 229 Hz |
| Fs | 32 Hz |
| Qes | 0.14 |
| Qts | 0.14 |
| Sd | 1210 cm² (187.6 in²) |
| Xmax | 20 mm |
| Mms | 330 g |
| Le | 0.65 mH |
| Re | 1.3 Ω |
| Qms | 4.2 |
| Vas | 164 dm³ (5.8 ft³) |
| η0 | 3.3 % |
| Xvar | 15 mm |
| Bl | 24.5 Tm |
| EBP | 229 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Recommended Tuning | 35 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 35 Hz |

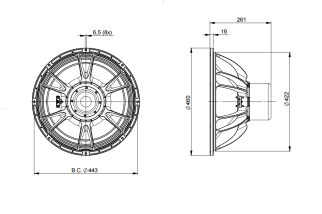

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 443 mm (17.44 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 261 mm (10.28 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Air Volume Occupied by Driver | 10.5 dm³ (0.37 ft³) |
| Net Weight | 15.35 kg (33.84 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 17.65 kg (38.91 lb) |
| Shipping Box | 570x570x320 mm (22.44x22.44x12.60 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 16 mm (0.63 in) |
| Net Weight | 15.35 kg (33.84 lb) |
| Shipping Weight | 17.65 kg (38.91 lb) |
| Bolt Circle Diameter | 443 mm (17.44 in) |
| Depth | 261 mm (10.28 in) |
| Air Volume Occupied by Driver | 10.5 dm³ (0.37 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 570x570x320 mm (22.44x22.44x12.60 in) |
ALT18IPAL
Scheda dati
- Pollici
- 18"
Nuovo
