Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
97 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance

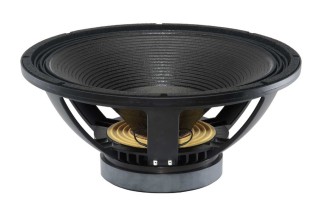

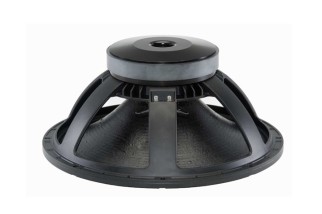

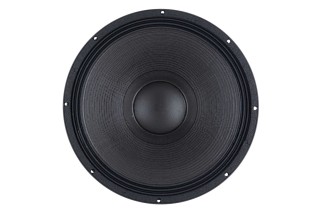

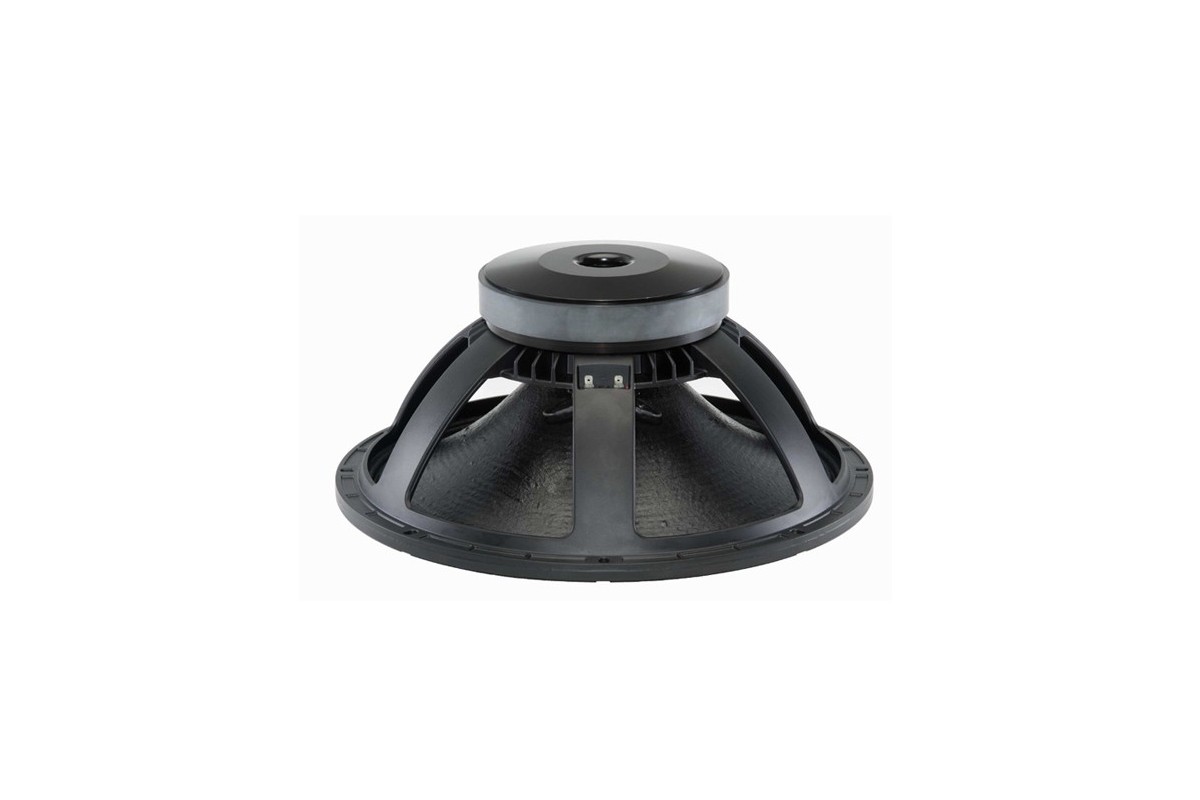

B&C 18RBX100 Subwoofer 18" 4/8 Ohm - Terminali Faston
285,48 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2000 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
97 dB sensitivity
☑ Aluminium demodulating ring allows a very low distortion figure
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.2 Ω |
| Nominal Power Handling | 1000 W |
| Continuous Power Handling | 2000 W |
| Sensitivity | 97 dB |
| Frequency Range | 35 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (1 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.1 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 2000 W |
| Frequency Range | 35 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (1 in) |
| Flux Density | 1.1 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 1000 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 40 Hz |
| Re | 5.1 Ω |
| Qes | 0.36 |
| Qms | 7.3 |
| Qts | 0.34 |
| Vas | 220 dm³ (7.77 ft³) |
| Sd | 1225 cm² (189.88 in²) |
| η0 | 2.2 % |
| Xmax | 10 mm |
| Xvar | 13 mm |
| Mms | 199 g |
| Bl | 25.1 Tm |
| Le | 1.5 mH |
| EBP | 111 Hz |
| Fs | 40 Hz |
| Qes | 0.36 |
| Qts | 0.34 |
| Sd | 1225 cm² (189.88 in²) |
| Xmax | 10 mm |
| Mms | 199 g |
| Le | 1.5 mH |
| Re | 5.1 Ω |
| Qms | 7.3 |
| Vas | 220 dm³ (7.77 ft³) |
| η0 | 2.2 % |
| Xvar | 13 mm |
| Bl | 25.1 Tm |
| EBP | 111 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Curvilinear |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 140 dm³ (4.94 ft³) |
| Recommended Tuning | 40 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 140 dm³ (4.94 ft³) |
| Cone Shape | Curvilinear |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 40 Hz |

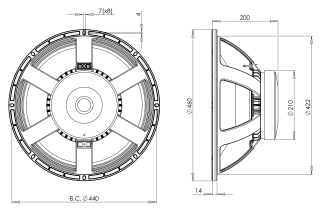

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18.11 in) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Depth | 200 mm (7.87 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 10.5 dm³ (0.37 ft³) |
| Net Weight | 12.05 kg (26.57 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 13.65 kg (30.09 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18.11 in) |
| Baffle Cutout Diameter | 422 mm (16.61 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 12.05 kg (26.57 lb) |
| Shipping Weight | 13.65 kg (30.09 lb) |
| Bolt Circle Diameter | 440 mm (17.32 in) |
| Depth | 200 mm (7.87 in) |
| Air Volume Occupied by Driver | 10.5 dm³ (0.37 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
