Features
☑ 1200 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 99 dB sensitivity
☑ Double silicone spider with optimized compliance

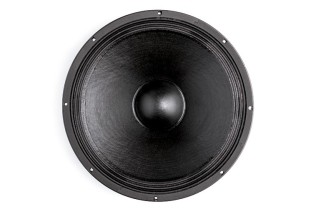

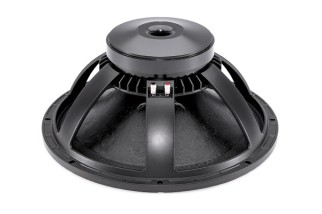

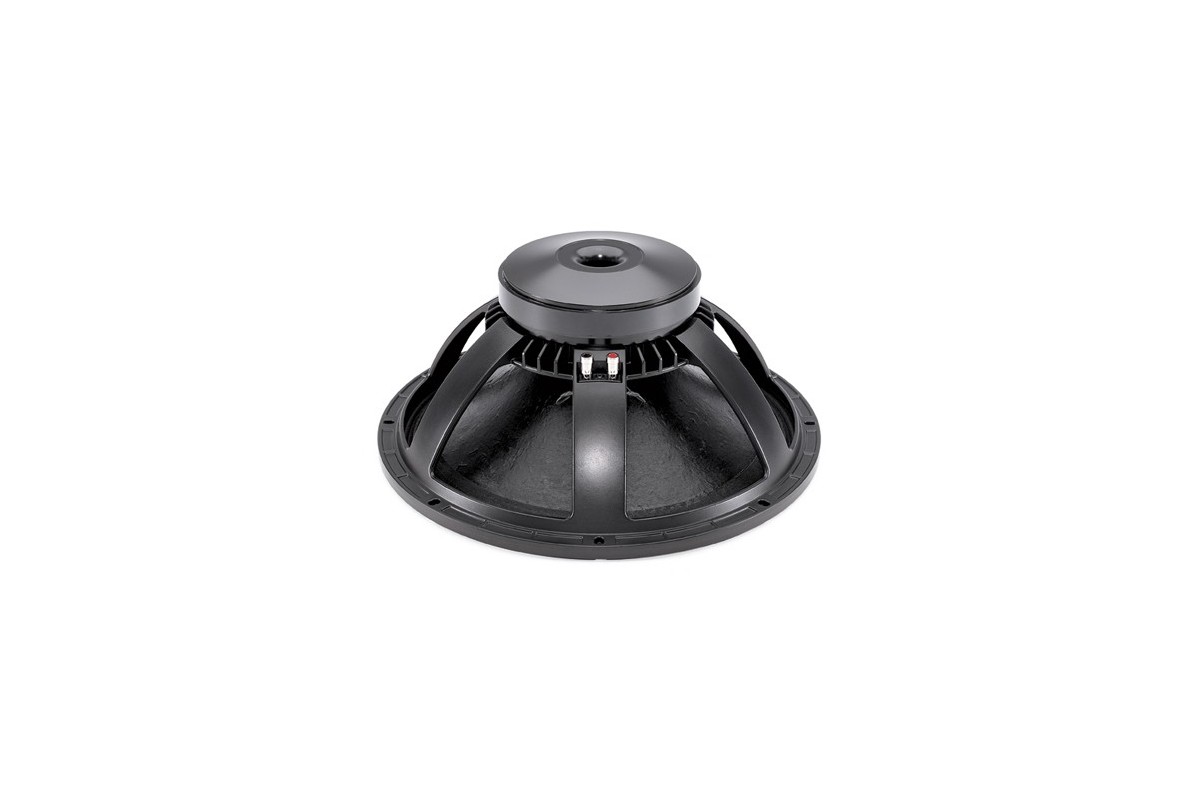

B&C 18PS76 Subwoofer 18" 4/8 Ohm – Terminali Push Button
264,98 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 1200 W continuous program power capacity
☑ 76 mm (3 in) copper voice coil
☑ 40 - 2000 Hz response
☑ 99 dB sensitivity
☑ Double silicone spider with optimized compliance
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 600 W |
| Continuous Power Handling | 1200 W |
| Sensitivity | 99 dB |
| Frequency Range | 40 Hz - 2000 Hz |
| Voice Coil Diameter | 76 mm (3 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 24 mm (0.92 in) |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 1200 W |
| Frequency Range | 40 Hz - 2000 Hz |
| Winding Material | Copper |
| Winding Depth | 24 mm (0.92 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 600 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 76 mm (3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.4 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 39 Hz |
| Re | 5 Ω |
| Qes | 0.29 |
| Qms | 6.1 |
| Qts | 0.27 |
| Vas | 207 dm³ (7.2 ft³) |
| Sd | 1210 cm² (187.6 in²) |
| η0 | 4 % |
| Xmax | 7 mm |
| Xvar | 8 mm |
| Mms | 149 g |
| Bl | 25.8 Tm |
| Le | 1.9 mH |
| EBP | 134 Hz |
| Fs | 39 Hz |
| Qes | 0.29 |
| Qts | 0.27 |
| Sd | 1210 cm² (187.6 in²) |
| Xmax | 7 mm |
| Mms | 149 g |
| Le | 1.9 mH |
| Re | 5 Ω |
| Qms | 6.1 |
| Vas | 207 dm³ (7.2 ft³) |
| η0 | 4 % |
| Xvar | 8 mm |
| Bl | 25.8 Tm |
| EBP | 134 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Double Silicone |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Recommended Tuning | 45 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Recommended Enclosure | 150 dm³ (5.3 ft³) |
| Cone Shape | Exponential |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 45 Hz |

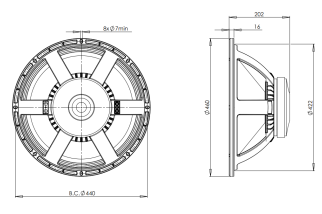

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Depth | 202 mm (7.95 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Air Volume Occupied by Driver | 9 dm³ (0.32 ft³) |
| Net Weight | 10.8 kg (23.81 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 12.5 kg (27.56 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Net Weight | 10.8 kg (23.81 lb) |
| Shipping Weight | 12.5 kg (27.56 lb) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Depth | 202 mm (7.95 in) |
| Air Volume Occupied by Driver | 9 dm³ (0.32 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
ALT18PS764M
Scheda dati
- Pollici
- 18"
