Features
☑ 2400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
☑ 95 dB sensitivity
☑ FEA optimized Neodymium magnet assembly
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
B&C 18NW100 Subwoofer 18" 4/8 Ohm – Terminali Push Button
351,36 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
☑ 95 dB sensitivity
☑ FEA optimized Neodymium magnet assembly
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.5 Ω |
| Nominal Power Handling | 1199 W |
| Continuous Power Handling | 2400 W |
| Sensitivity | 95 dB |
| Frequency Range | 35 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (1 in) |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Flux Density | 1.2 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4.5 Ω |
| Continuous Power Handling | 2400 W |
| Frequency Range | 35 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (1 in) |
| Flux Density | 1.2 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1199 W |
| Sensitivity | 95 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 12 mm (0.5 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 30 Hz |
| Re | 3.7 Ω |
| Qes | 0.28 |
| Qms | 6.2 |
| Qts | 0.27 |
| Vas | 203.5 dm³ (7.19 ft³) |
| Sd | 1210 cm² (187.6 in²) |
| η0 | 1.95 % |
| Xmax | 9 mm |
| Xvar | 11 mm |
| Mms | 244 g |
| Bl | 24.7 Tm |
| Le | 1.7 mH |
| EBP | 107 Hz |
| Fs | 30 Hz |
| Qes | 0.28 |
| Qts | 0.27 |
| Sd | 1210 cm² (187.6 in²) |
| Xmax | 9 mm |
| Mms | 244 g |
| Le | 1.7 mH |
| Re | 3.7 Ω |
| Qms | 6.2 |
| Vas | 203.5 dm³ (7.19 ft³) |
| η0 | 1.95 % |
| Xvar | 11 mm |
| Bl | 24.7 Tm |
| EBP | 107 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 160 dm³ (5.65 ft³) |
| Recommended Tuning | 37 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 160 dm³ (5.65 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 37 Hz |

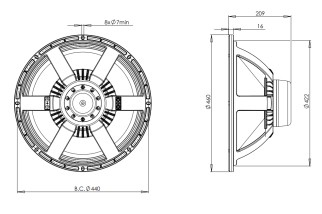

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Depth | 209 mm (8.2 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Air Volume Occupied by Driver | 8.5 dm³ (0.3 ft³) |
| Net Weight | 9.05 kg (19.95 lb) |
| Shipping Weight | 10.65 kg (23.48 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Flange and Gasket Thickness | 16 mm (0.62 in) |
| Net Weight | 9.05 kg (19.95 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Depth | 209 mm (8.2 in) |
| Air Volume Occupied by Driver | 8.5 dm³ (0.3 ft³) |
| Shipping Weight | 10.65 kg (23.48 lb) |
ALT18NW1004M
Scheda dati
- Pollici
- 18"
