Features
☑ 2400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
☑ 96 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion

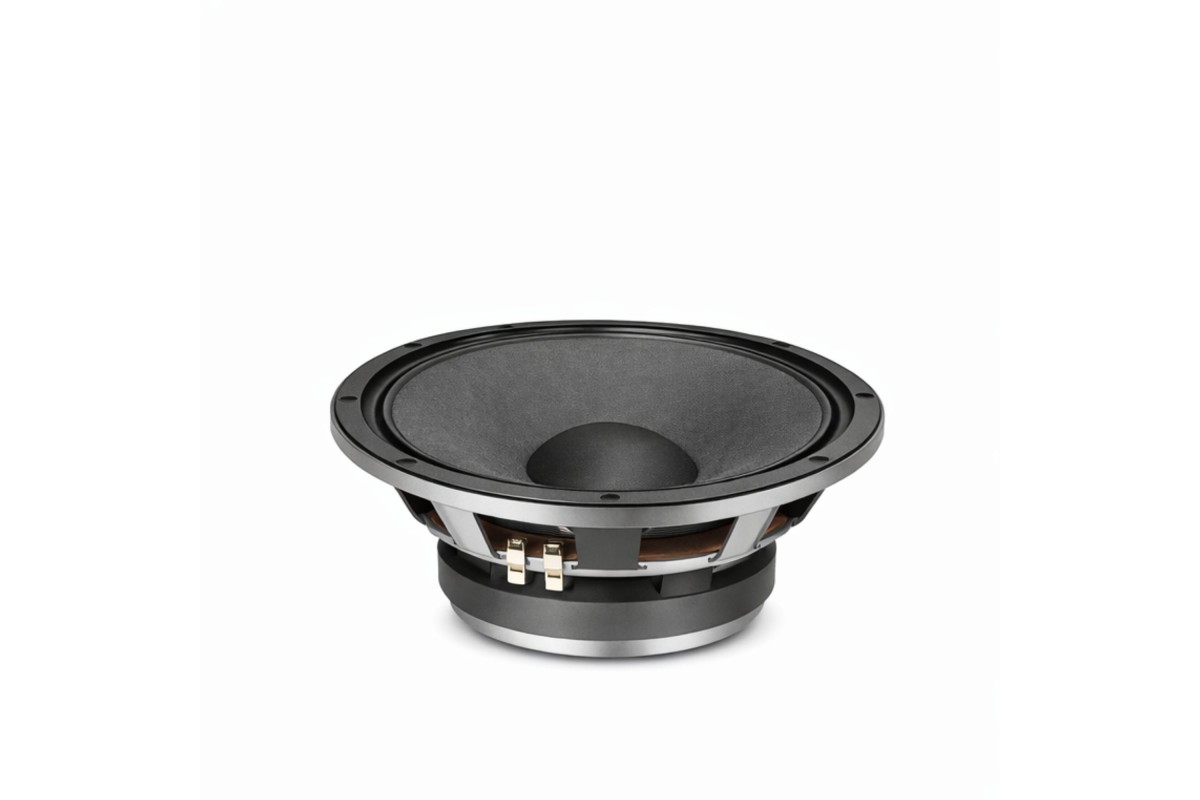

B&C 18NBX100 Subwoofer 18" 4/8 Ohm – Terminali Push Button
344,04 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 2400 W continuous program power capacity
☑ 100 mm (4 in) copper voice coil
☑ 35 - 1000 Hz response
☑ 96 dB sensitivity
☑ Double silicone spider with optimized compliance
☑ Ventilated voice coil gap for reduced power compression
☑ Aluminium demodulating ring for very low distortion
close
| Specifications | |
|---|---|
| Nominal Diameter | 460 mm (18 in) |
| Nominal Impedance | 4 Ω |
| Minimum Impedance | 4.4 Ω |
| Nominal Power Handling | 1200 W |
| Continuous Power Handling | 2400 W |
| Sensitivity | 96 dB |
| Frequency Range | 35 Hz - 1000 Hz |
| Voice Coil Diameter | 100 mm (4 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 25 mm (1 in) |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Flux Density | 1.1 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 460 mm (18 in) |
| Minimum Impedance | 4.4 Ω |
| Continuous Power Handling | 2400 W |
| Frequency Range | 35 Hz - 1000 Hz |
| Winding Material | Copper |
| Winding Depth | 25 mm (1 in) |
| Flux Density | 1.1 T |
| Nominal Impedance | 4 Ω |
| Nominal Power Handling | 1200 W |
| Sensitivity | 96 dB |
| Voice Coil Diameter | 100 mm (4 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 11 mm (0.43 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 35 Hz |
| Re | 3.6 Ω |
| Qes | 0.39 |
| Qms | 7 |
| Qts | 0.37 |
| Vas | 192 dm³ (6.78 ft³) |
| Sd | 1210 cm² (187.55 in²) |
| η0 | 2.02 % |
| Xmax | 10 mm |
| Xvar | 12 mm |
| Mms | 225 g |
| Bl | 22 Tm |
| Le | 1.74 mH |
| EBP | 90 Hz |
| Fs | 35 Hz |
| Qes | 0.39 |
| Qts | 0.37 |
| Sd | 1210 cm² (187.55 in²) |
| Xmax | 10 mm |
| Mms | 225 g |
| Le | 1.74 mH |
| Re | 3.6 Ω |
| Qms | 7 |
| Vas | 192 dm³ (6.78 ft³) |
| η0 | 2.02 % |
| Xvar | 12 mm |
| Bl | 22 Tm |
| EBP | 90 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Neodymium Inside Slug |
| Spider | Double Silicone |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 200 dm³ (7.1 ft³) |
| Recommended Tuning | 35 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 200 dm³ (7.1 ft³) |
| Cone Shape | Radial |
| Spider | Double Silicone |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 35 Hz |

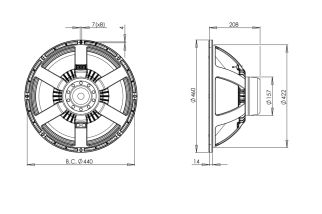

| Mounting and Shipping Info | |
| Overall Diameter | 460 mm (18 in) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Depth | 208 mm (8.19 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Air Volume Occupied by Driver | 8.5 dm³ (0.3 ft³) |
| Net Weight | 9.05 kg (19.95 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 11.65 kg (25.68 lb) |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
| Overall Diameter | 460 mm (18 in) |
| Baffle Cutout Diameter | 422 mm (16.6 in) |
| Flange and Gasket Thickness | 14 mm (0.55 in) |
| Net Weight | 9.05 kg (19.95 lb) |
| Shipping Weight | 11.65 kg (25.68 lb) |
| Bolt Circle Diameter | 440 mm (17.3 in) |
| Depth | 208 mm (8.19 in) |
| Air Volume Occupied by Driver | 8.5 dm³ (0.3 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 500x495x275 mm (19.69x19.49x10.83 in) |
ALT18NBX1004M
Scheda dati
- Pollici
- 18"
