Features
☑ 200 W continuous program power capacity
☑ 34 mm (1.34 in) copper voice coil
☑ 80 - 2000 Hz response
☑ 89 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly

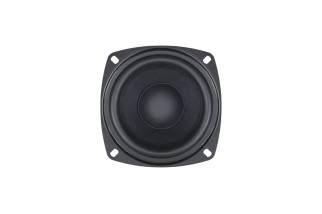

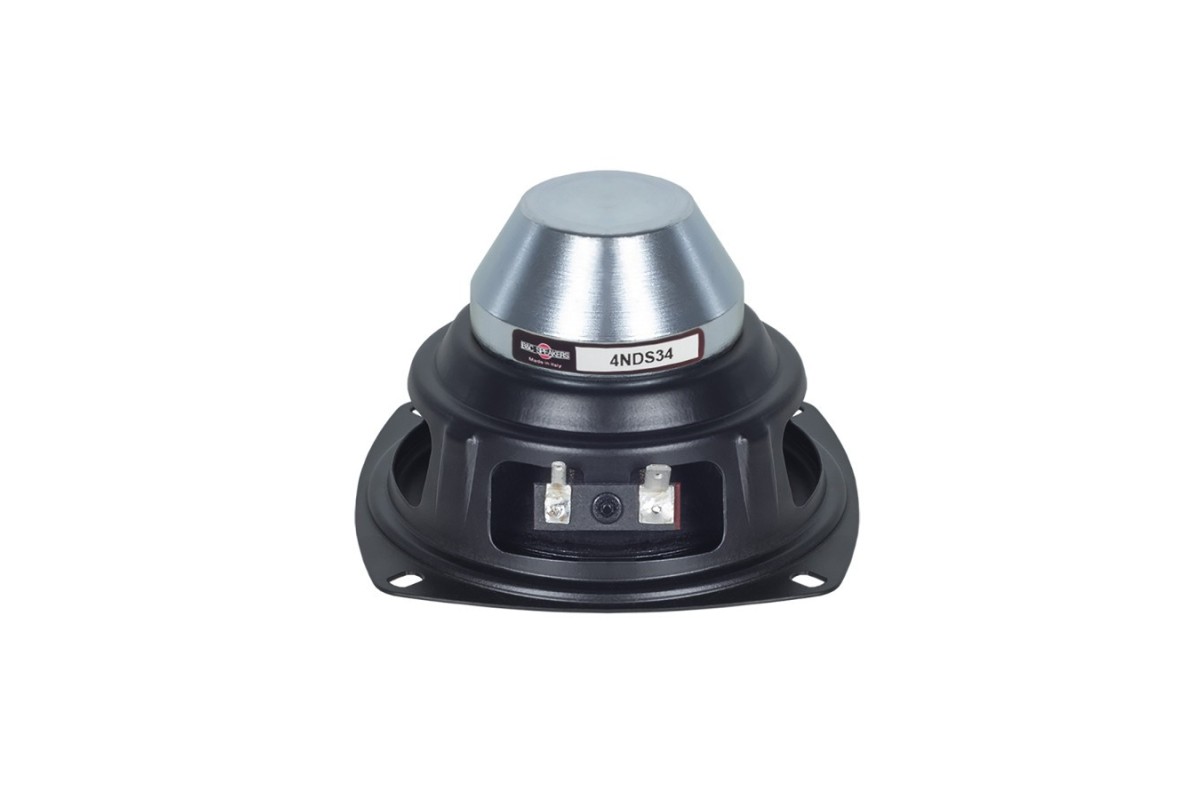

B&C 4NDS34 Woofer 4" 8/16 Ohm – Terminali Faston
60,76 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 200 W continuous program power capacity
☑ 34 mm (1.34 in) copper voice coil
☑ 80 - 2000 Hz response
☑ 89 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
close
| Specifications | |
|---|---|
| Nominal Diameter | 100 mm (4 in) |
| Minimum Impedance | 6.2 Ω |
| Continuous Power Handling | 200 W |
| Frequency Range | 80 Hz - 2000 Hz |
| Winding Material | Copper |
| Winding Depth | 11 mm (0.43 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | |
| 8 Ω | |
| Nominal Power Handling | 100 W |
| Sensitivity | 89 dB |
| Voice Coil Diameter | 34 mm (1.3 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 7 mm (0.28 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 79 Hz |
| Qes | 0.25 |
| Qts | 0.24 |
| Sd | 57 cm² (8.84 in²) |
| Xmax | 3.8 mm |
| Mms | 7.2 g |
| Le | 0.21 mH |
| Re | 5.5 Ω |
| Qms | 8.5 |
| Vas | 2.6 dm³ (0.09 ft³) |
| η0 | 0.5 % |
| Xvar | 5 mm |
| Bl | 8.8 Tm |
| EBP | 316 Hz |
| Design | |
| Surround Shape | Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 3 dm³ (0.11 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 90 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 127 mm (5 in) |
| Baffle Cutout Diameter | 103 mm (4.06 in) |
| Flange and Gasket Thickness | 3 mm (0.12 in) |
| Net Weight | 0.55 kg (1.21 lb) |
| Shipping Weight | 0.67 kg (1.48 lb) |
| Bolt Circle Diameter | 114 mm (4.51 in) |
| Depth | 67 mm (2.64 in) |
| Air Volume Occupied by Driver | 0.25 dm³ (0.01 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 117x120x110 mm (4.61x4.72x4.33 in) |
ALT004NDS348
Scheda dati
- Pollici
- 4"
Nuovo
