Features
☑ 180 W continuous program power capacity
☑ 38 mm (1.5 in) aluminium voice coil
☑ 175 - 10000 Hz response
☑ 97 dB sensitivity
☑ Shorting copper cap for extended HF response

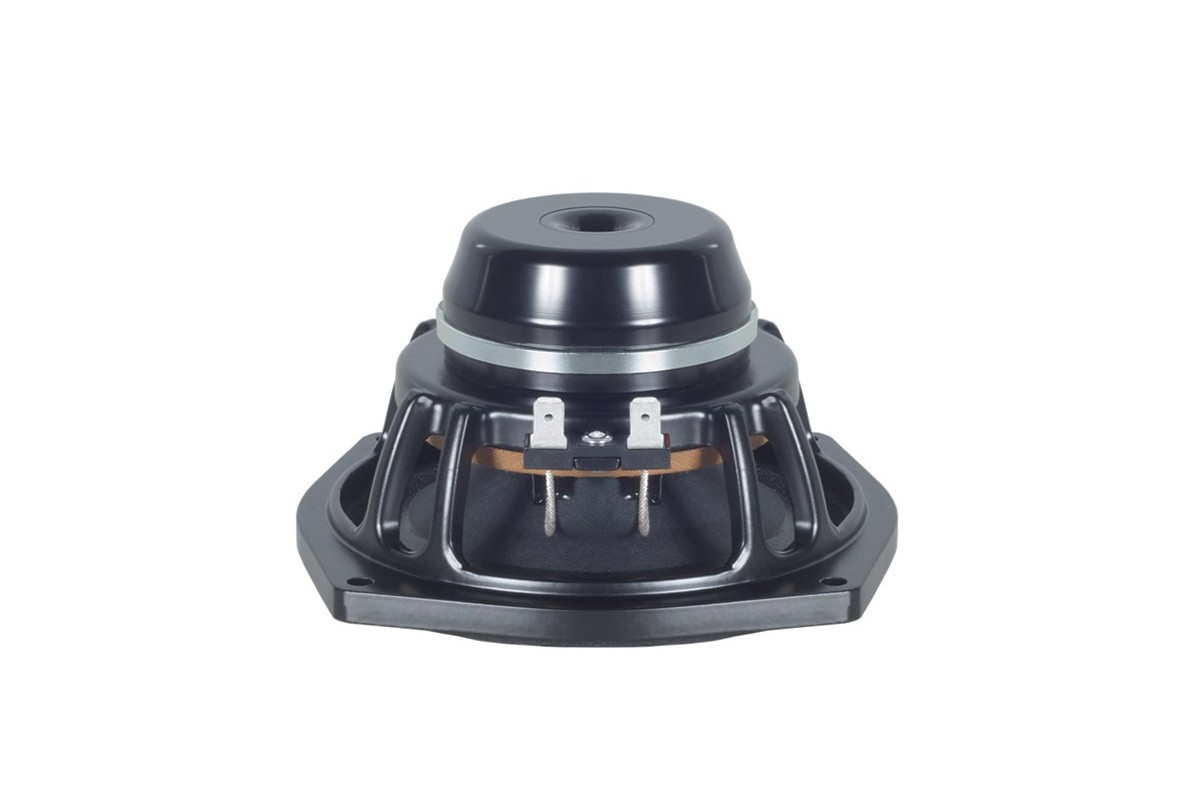

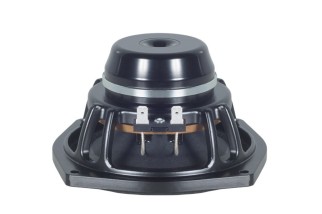

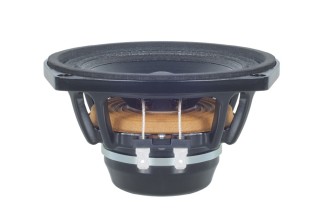

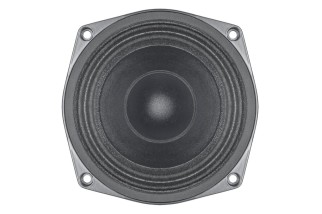

B&C 5MDN38 Midrange 5" 8/16 Ohm – Terminali Faston
116,39 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 180 W continuous program power capacity
☑ 38 mm (1.5 in) aluminium voice coil
☑ 175 - 10000 Hz response
☑ 97 dB sensitivity
☑ Shorting copper cap for extended HF response
close
| Specifications | |
|---|---|
| Nominal Diameter | 127 mm (5 in) |

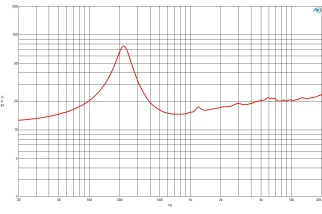

| Minimum Impedance | 7 Ω |
| Continuous Power Handling | 180 W |

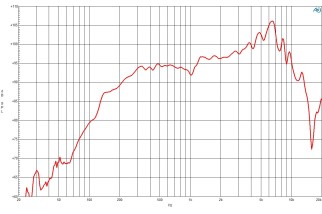

| Frequency Range | 175 Hz - 10000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 10 mm (0.4 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 90 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 38 mm (1.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 175 Hz |
| Qes | 0.36 |
| Qts | 0.31 |
| Sd | 95 cm² (14.7 in²) |
| Xmax | 3.5 mm |
| Mms | 8 g |
| Le | 0.4 mH |
| Re | 5.5 Ω |
| Qms | 2.3 |
| Vas | 1.4 dm³ (0.05 ft³) |
| η0 | 2% |
| Xvar | 4 mm |
| Bl | 11.1 Tm |
| EBP | 486 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Ring |
| Pole Design | Straight Pole |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Mounting and Shipping Info | |
| Overall Diameter | 155 mm (6.1 in) |
| Baffle Cutout Diameter | 122 mm (4.8 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Net Weight | 0.94 kg (2.07 lb) |
| Shipping Weight | 1.14 kg (2.51 lb) |
| Bolt Circle Diameter | 142 mm (5.6 in) |
| Depth | 75 mm (2.95 in) |
| Air Volume Occupied by Driver | 0.35 dm³ (0.01 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 210x210x125 mm (8.27x8.27x4.92 in) |
