Features
☑ 240 W continuous program power capacity
☑ 38 mm (1.5 in) aluminium voice coil
☑ 150 - 8000 Hz response
☑ 99 dB sensitivity
B&C 6PEV13 Midrange 6.5" 8 Ohm – Terminali Faston
101,75 €
Tasse incluse
Spedizione 24/48h
Features
☑ 240 W continuous program power capacity
☑ 38 mm (1.5 in) aluminium voice coil
☑ 150 - 8000 Hz response
☑ 99 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 170 mm (6.5 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Nominal Power Handling | 120 W |
| Continuous Power Handling | 240 W |
| Sensitivity | 99 dB |

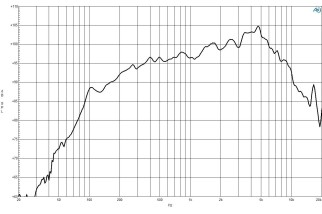

| Frequency Range | 150 Hz - 8000 Hz |
| Voice Coil Diameter | 38 mm (1.5 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 7 mm (0.28 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1.4 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 170 mm (6.5 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 240 W |
| Frequency Range | 150 Hz - 8000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 7 mm (0.28 in) |
| Flux Density | 1.4 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 120 W |
| Sensitivity | 99 dB |
| Voice Coil Diameter | 38 mm (1.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 126 Hz |
| Re | 5.2 Ω |
| Qes | 0.39 |
| Qms | 4.6 |
| Qts | 0.36 |
| Vas | 6 dm³ (0.21 ft³) |
| Sd | 132 cm² (20.46 in²) |
| η0 | 3 % |
| Xmax | 2.5 mm |
| Xvar | 1.5 mm |
| Mms | 6 g |
| Bl | 8.2 Tm |
| Le | 0.6 mH |
| EBP | 323 Hz |
| Fs | 126 Hz |
| Qes | 0.39 |
| Qts | 0.36 |
| Sd | 132 cm² (20.46 in²) |
| Xmax | 2.5 mm |
| Mms | 6 g |
| Le | 0.6 mH |
| Re | 5.2 Ω |
| Qms | 4.6 |
| Vas | 6 dm³ (0.21 ft³) |
| η0 | 3 % |
| Xvar | 1.5 mm |
| Bl | 8.2 Tm |
| EBP | 323 Hz |
| Design | |
| Surround Shape | Flat |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Surround Shape | Flat |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | None |

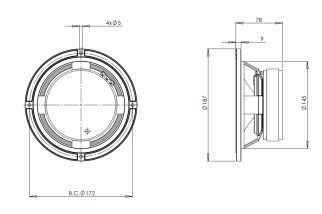

| Mounting and Shipping Info | |
| Overall Diameter | 187 mm (7.36 in) |
| Bolt Circle Diameter | 172 mm (6.77 in) |
| Baffle Cutout Diameter | 145 mm (5.71 in) |
| Depth | 78 mm (3.07 in) |
| Flange and Gasket Thickness | 11 mm (0.43 in) |
| Air Volume Occupied by Driver | 0.8 dm³ (0.03 ft³) |
| Net Weight | 2.35 kg (5.18 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 2.55 kg (5.62 lb) |
| Shipping Box | 210x210x125 mm (8.27x8.27x4.92 in) |
