| Specifications |
|---|
| Nominal Diameter 170 mm (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.6 Ω |
| Power Handling |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 96 dB |
| Frequency Range 100-20000 Hz |
| Voice Coil Diameter 38 mm (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 8 mm (5/16 in.) |
| Magnetic Gap Depth 6 mm (1/4 in.) |
| Flux Density 1.25 T |
| Thiele & Small Parameters 2 |
| Fs 98 Hz. |
| Re 5.4 Ω |
| Qes 0.7 |
| Qms 4.1 |
| Qts 0.6 |
| Vas 7 dm.3 (0.25 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 0.9 % |
| X max ± 1 mm. |
| Mms 10 gr. |
| Bl 6.8 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous IEC 268 shaped pink noise signal (6 dB crest |
| factor) . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal |
| rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 20000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test. |

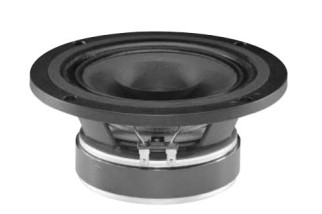

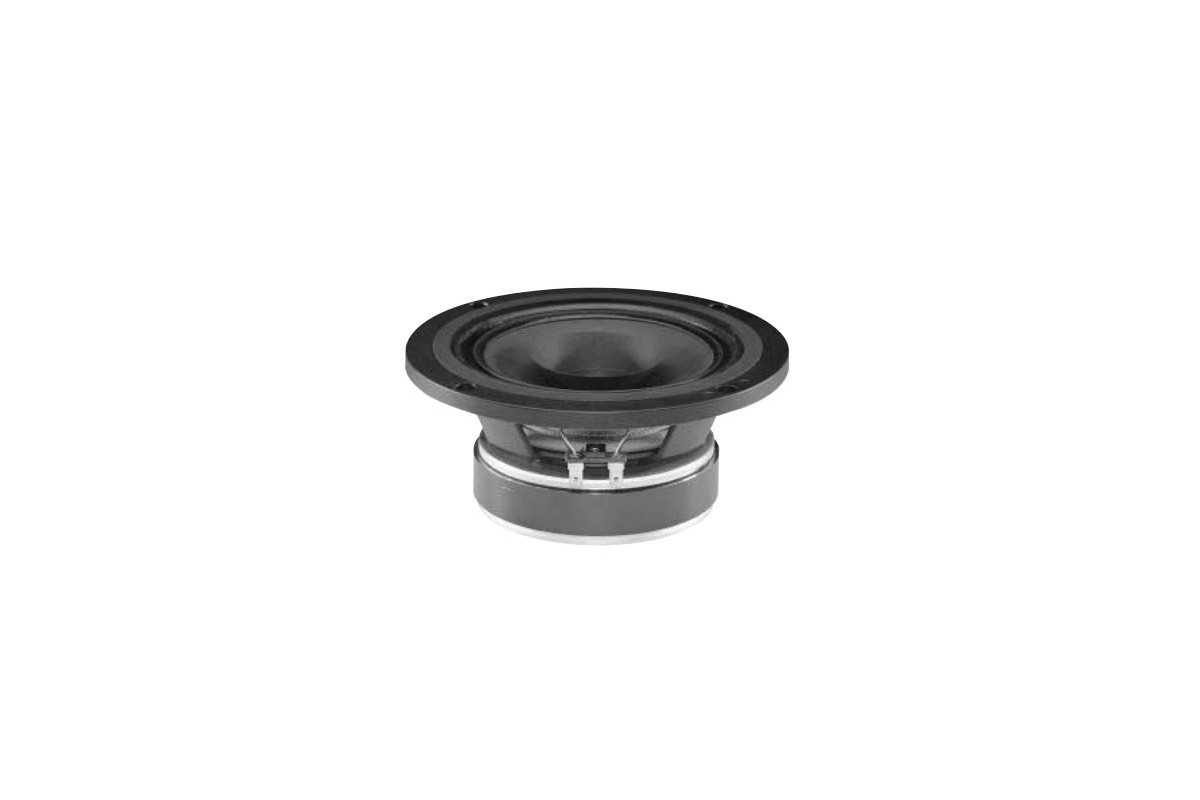

B&C 6022 Midrange 6.5" 8 Ohm – Terminali Faston
156,16 €
Tasse incluse
Spedito entro 5/7 Giorni
| Specifications |
|---|
| Nominal Diameter 170 mm (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.6 Ω |
| Power Handling |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 96 dB |
| Frequency Range 100-20000 Hz |
| Voice Coil Diameter 38 mm (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 8 mm (5/16 in.) |
| Magnetic Gap Depth 6 mm (1/4 in.) |
| Flux Density 1.25 T |
| Thiele & Small Parameters 2 |
| Fs 98 Hz. |
| Re 5.4 Ω |
| Qes 0.7 |
| Qms 4.1 |
| Qts 0.6 |
| Vas 7 dm.3 (0.25 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 0.9 % |
| X max ± 1 mm. |
| Mms 10 gr. |
| Bl 6.8 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous IEC 268 shaped pink noise signal (6 dB crest |
| factor) . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal |
| rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 20000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test. |
close
| Specifications |
|---|
| Nominal Diameter 170 mm (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.6 Ω |
| Power Handling |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 96 dB |
| Frequency Range 100-20000 Hz |
| Voice Coil Diameter 38 mm (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 8 mm (5/16 in.) |
| Magnetic Gap Depth 6 mm (1/4 in.) |
| Flux Density 1.25 T |
| Thiele & Small Parameters 2 |
| Fs 98 Hz. |
| Re 5.4 Ω |
| Qes 0.7 |
| Qms 4.1 |
| Qts 0.6 |
| Vas 7 dm.3 (0.25 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 0.9 % |
| X max ± 1 mm. |
| Mms 10 gr. |
| Bl 6.8 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous IEC 268 shaped pink noise signal (6 dB crest |
| factor) . Power calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal |
| rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 20000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test. |
ALT0060228
Scheda dati
- Pollici
- 6.5"
