Features
☑ 400 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ 150 - 6000 Hz response
☑ 96.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power compression

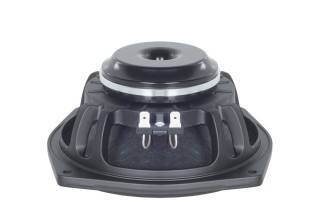

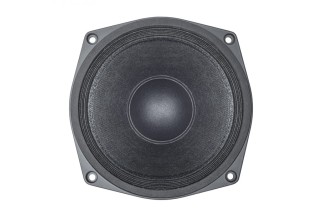

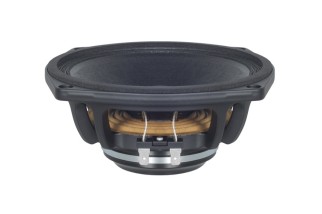

B&C 6MDN44 Midrange 6.5" 8/16 Ohm – Terminali Faston
116,39 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 400 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ 150 - 6000 Hz response
☑ 96.5 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium demodulating ring for very low distortion
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 170 mm (6.5 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 200 W |
| Continuous Power Handling | 400 W |
| Sensitivity | 96.5 dB |
| Frequency Range | 150 Hz - 6000 Hz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 10 mm (0.37 in) |
| Magnetic Gap Depth | 6 mm (0.25 in) |
| Flux Density | 1.45 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 170 mm (6.5 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 150 Hz - 6000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 10 mm (0.37 in) |
| Flux Density | 1.45 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 96.5 dB |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 6 mm (0.25 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 140 Hz |
| Re | 5.4 Ω |
| Qes | 0.46 |
| Qms | 2.8 |
| Qts | 0.4 |
| Vas | 2.7 dm³ (0.09 ft³) |
| Sd | 132 cm² (20.5 in²) |
| η0 | 1.6 % |
| Xmax | 2.5 mm |
| Xvar | 3 mm |
| Mms | 11 g |
| Bl | 11 Tm |
| Le | 0.47 mH |
| EBP | 304 Hz |
| Fs | 140 Hz |
| Qes | 0.46 |
| Qts | 0.4 |
| Sd | 132 cm² (20.5 in²) |
| Xmax | 2.5 mm |
| Mms | 11 g |
| Le | 0.47 mH |
| Re | 5.4 Ω |
| Qms | 2.8 |
| Vas | 2.7 dm³ (0.09 ft³) |
| η0 | 1.6 % |
| Xvar | 3 mm |
| Bl | 11 Tm |
| EBP | 304 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Ring |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Ring |
| Pole Design | T-Pole |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |

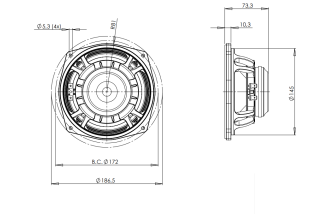

| Mounting and Shipping Info | |
| Overall Diameter | 187 mm (7.4 in) |
| Bolt Circle Diameter | 172 mm (6.7 in) |
| Baffle Cutout Diameter | 145 mm (5.7 in) |
| Depth | 73 mm (2.9 in) |
| Flange and Gasket Thickness | 11 mm (0.4 in) |
| Air Volume Occupied by Driver | 0.6 dm³ (0.02 ft³) |
| Net Weight | 1 kg (1.2 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 1.2 kg (2.65 lb) |
| Shipping Box | 210x210x125 mm (8.27x8.27x4.92 in) |
