Features
☑ 400 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ 115 - 5000 Hz response
☑ 98 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium ring allows a very low distortion figure

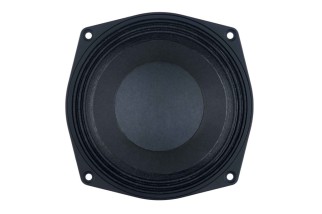

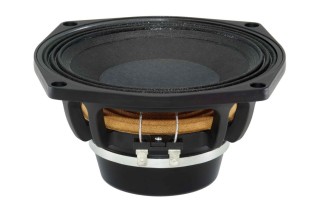

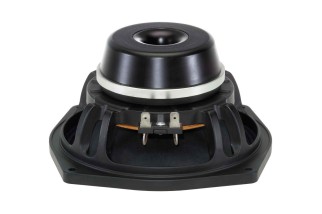

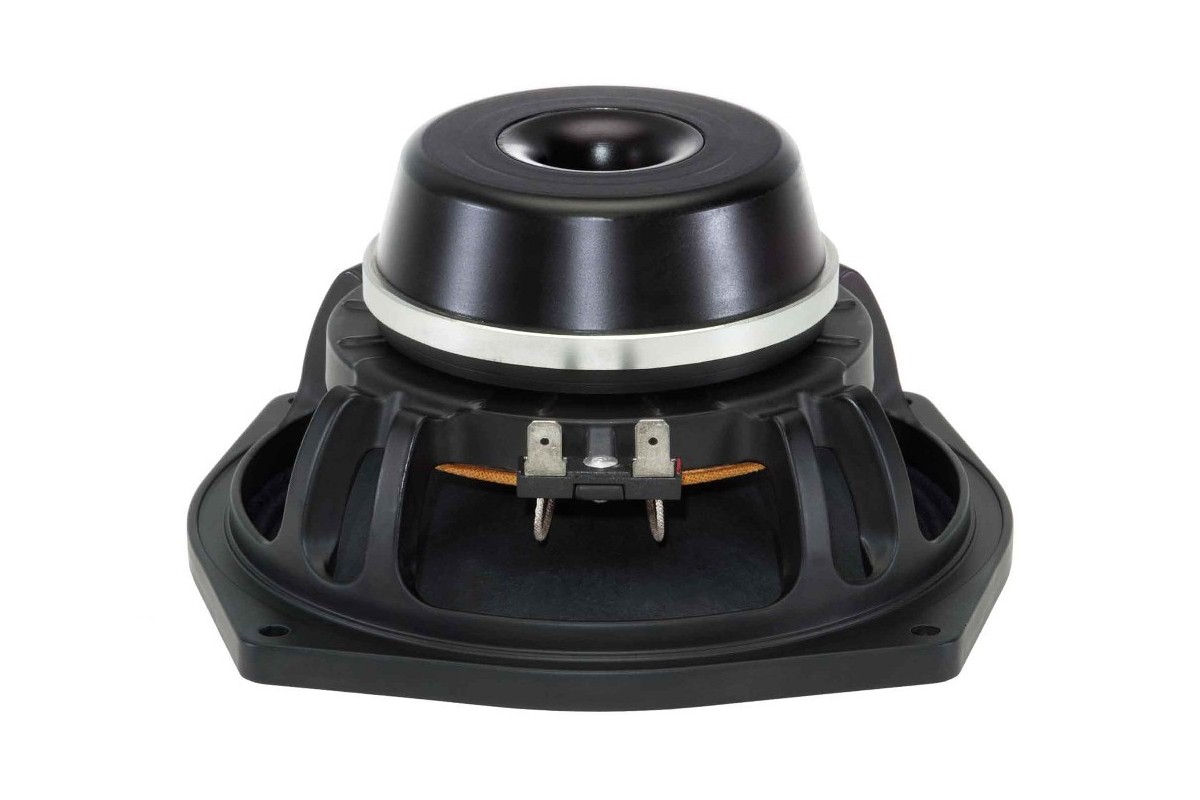

B&C 6MBX44 Midbass 6.5" 8/16 Ohm – Terminali Faston
147,86 €
Tasse incluse
Spedizione 24/48h
Features
☑ 400 W continuous program power capacity
☑ 44 mm (1.7 in) aluminium voice coil
☑ 115 - 5000 Hz response
☑ 98 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Aluminium ring allows a very low distortion figure
close
| Specifications | |
|---|---|
| Nominal Diameter | 170 mm (6.5 in) |

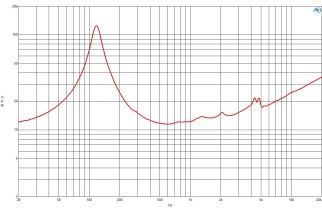

| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6 Ω |
| Nominal Power Handling | 200 W |
| Continuous Power Handling | 400 W |
| Sensitivity | 98 dB |

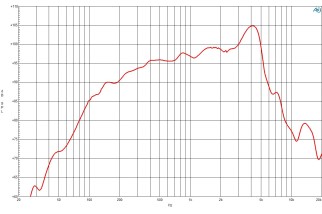

| Frequency Range | 115 Hz - 5000 Hz |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 10 mm (0.37 in) |
| Magnetic Gap Depth | 6 mm (0.25 in) |
| Flux Density | 1.55 T |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Nominal Diameter | 170 mm (6.5 in) |
| Minimum Impedance | 6 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 115 Hz - 5000 Hz |
| Winding Material | Aluminium |
| Winding Depth | 10 mm (0.37 in) |
| Flux Density | 1.55 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 44 mm (1.7 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 6 mm (0.25 in) |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Parameters | |
| Fs | 113 Hz |
| Re | 5.4 Ω |
| Qes | 0.34 |
| Qms | 3.9 |
| Qts | 0.31 |
| Vas | 4.1 dm³ (0.14 ft³) |
| Sd | 132 cm² (20.46 in²) |
| η0 | 1.4 % |
| Xmax | 3.5 mm |
| Xvar | 3 mm |
| Mms | 12 g |
| Bl | 11.7 Tm |
| Le | 0.2 mH |
| EBP | 332 Hz |
| Fs | 113 Hz |
| Qes | 0.34 |
| Qts | 0.31 |
| Sd | 132 cm² (20.46 in²) |
| Xmax | 3.5 mm |
| Mms | 12 g |
| Le | 0.2 mH |
| Re | 5.4 Ω |
| Qms | 3.9 |
| Vas | 4.1 dm³ (0.14 ft³) |
| η0 | 1.4 % |
| Xvar | 3 mm |
| Bl | 11.7 Tm |
| EBP | 332 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Ring |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | Waterproof Impregnated Cone |

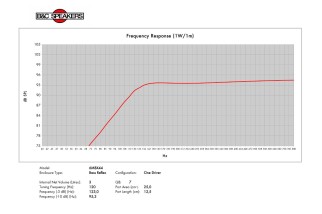

| Recommended Enclosure | 3 dm³ (0.11 ft³) |
| Recommended Tuning | 120 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Neodymium Ring |
| Pole Design | T-Pole |
| Recommended Enclosure | 3 dm³ (0.11 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Recommended Tuning | 120 Hz |

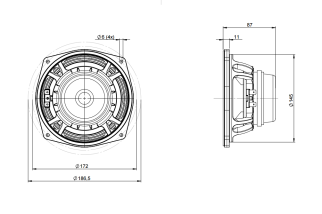

| Mounting and Shipping Info | |
| Overall Diameter | 187 mm (7.36 in) |
| Bolt Circle Diameter | 172 mm (6.7 in) |
| Baffle Cutout Diameter | 145 mm (5.7 in) |
| Depth | 87 mm (3.43 in) |
| Flange and Gasket Thickness | 11 mm (0.4 in) |
| Air Volume Occupied by Driver | 0.6 dm³ (0.02 ft³) |
| Net Weight | 1.59 kg (3.51 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 1.79 kg (3.95 lb) |
| Shipping Box | 210x210x125 mm (8.27x8.27x4.92 in) |
