| Specifications |
|---|
| Nominal Diameter 170 mm. (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.8 Ω |
| Power Handling (300-3000 Hz) |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 98 dB |
| Frequency Range 150-8000 Hz |
| Voice Coil Diameter 38 mm. (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 7 mm. (9/32 in.) |
| Magnetic Gap Depth 6 mm. (1/4 in.) |
| Flux Density 1.4 T |
| Thiele & Small Parameters 4 |
| Fs 117 Hz. |
| Re 5.2 Ω |
| Qes 0.48 |
| Qms 3 |
| Qts 0.42 |
| Vas 5 dm. 3 (0.17 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 1.6 % |
| X max ± 0.6 mm. |
| Mms 9 gr. |
| Bl 8.5 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous pink noise signal (6 dB crest factor). Power |
| calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 8000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test |

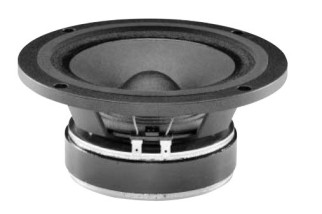

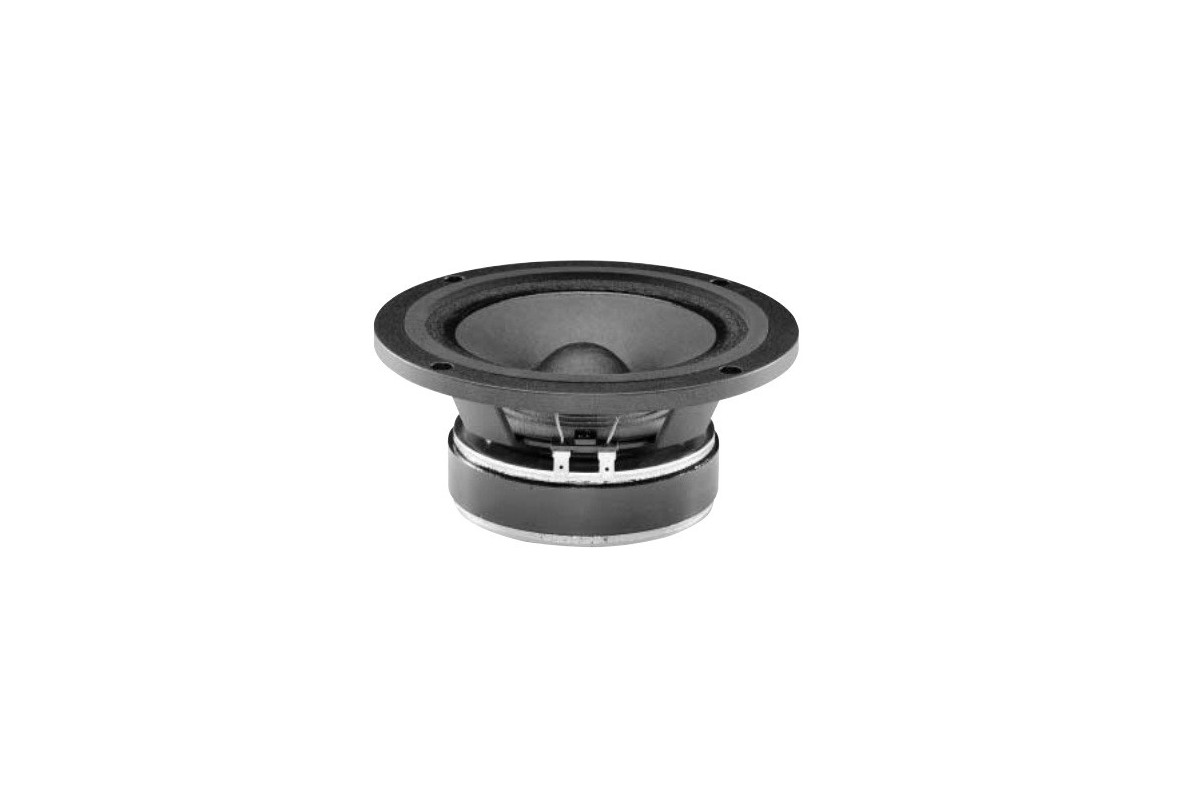

B&C 6PE13 Midrange 6.5" 8 Ohm – Terminali Faston
96,62 €
Tasse incluse
Spedito entro 5/7 Giorni
| Specifications |
|---|
| Nominal Diameter 170 mm. (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.8 Ω |
| Power Handling (300-3000 Hz) |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 98 dB |
| Frequency Range 150-8000 Hz |
| Voice Coil Diameter 38 mm. (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 7 mm. (9/32 in.) |
| Magnetic Gap Depth 6 mm. (1/4 in.) |
| Flux Density 1.4 T |
| Thiele & Small Parameters 4 |
| Fs 117 Hz. |
| Re 5.2 Ω |
| Qes 0.48 |
| Qms 3 |
| Qts 0.42 |
| Vas 5 dm. 3 (0.17 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 1.6 % |
| X max ± 0.6 mm. |
| Mms 9 gr. |
| Bl 8.5 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous pink noise signal (6 dB crest factor). Power |
| calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 8000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test |
close
| Specifications |
|---|
| Nominal Diameter 170 mm. (6.5 in.) |
| Nominal Impedance 8 Ω |
| Minumum Impedance 5.8 Ω |
| Power Handling (300-3000 Hz) |
| Nominal1 120 W |
| Continuous Program2 240 W |
| Sensitivity (1W/1m) 3 98 dB |
| Frequency Range 150-8000 Hz |
| Voice Coil Diameter 38 mm. (1.5 in.) |
| Winding Material Aluminium |
| Former Material Fiber Glass |
| Winding Depth 7 mm. (9/32 in.) |
| Magnetic Gap Depth 6 mm. (1/4 in.) |
| Flux Density 1.4 T |
| Thiele & Small Parameters 4 |
| Fs 117 Hz. |
| Re 5.2 Ω |
| Qes 0.48 |
| Qms 3 |
| Qts 0.42 |
| Vas 5 dm. 3 (0.17 cu. ft.) |
| Sd 132 cm. 2 (20.5 sq. in.) |
| η0 1.6 % |
| X max ± 0.6 mm. |
| Mms 9 gr. |
| Bl 8.5 Tm |
| Le 0.6 mH |
| Mounting and Shipping Informations |
| Overall Diameter 187 mm. (7.4 in.) |
| Bolt Circle Diameter 172 mm. (6.7 in.) |
| Baffle Cutout Diameter 145 mm. (5.7 in.) |
| Depth 78 mm. (3.1 in.) |
| Flange and Gasket Thickness 11 mm. (7/16 in.) |
| Net Weight (1 unit) 2.3 Kg. (5.1 lb.) |
| Shipping Weight (4 units) 10.5 Kg (23.1 lb.) |
| Shipping Box (4 units) 405x225x210 mm (15.9x8.8x8.3 in.) |
| 1 2 hours test made with continuous pink noise signal (6 dB crest factor). Power |
| calculated on rated minimum impedance. Loudspeaker in free air. |
| 2 Power on Continuous Program is defined as 3 dB greater than the Nominal rating. |
| 3 Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal |
| Impedance. Average SPL from 200 to 8000 Hz. |
| 4 Thiele-Small parameters are measured after a high level 20 Hz sine wave precon- |
| ditioning test |
ALT006PE138
Scheda dati
- Pollici
- 6.5"
Riferimenti specifici
- ean13
- 8059300640357
Nuovo
