Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 90 - 5000 Hz response
☑ 98 dB sensitivity
B&C 8PE21 Midrange 8" 8/16 Ohm – Terminali Faston
120,05 €
Tasse incluse
Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 90 - 5000 Hz response
☑ 98 dB sensitivity
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.2 Ω |
| Nominal Power Handling | 200 W |
| Continuous Power Handling | 400 W |
| Sensitivity | 98 dB |
| Frequency Range | 90 Hz - 5000 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Winding Material | Copper |
| Former Material | Kapton |
| Winding Depth | 9 mm (0.37 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | None |
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 7.2 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 90 Hz - 5000 Hz |
| Winding Material | Copper |
| Winding Depth | 9 mm (0.37 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 98 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | None |
| Parameters | |
| Fs | 87 Hz |
| Re | 5.6 Ω |
| Qes | 0.2 |
| Qms | 3.8 |
| Qts | 0.19 |
| Vas | 13 dm³ (0.46 ft³) |
| Sd | 220 cm² (34.1 in²) |
| η0 | 4.1 % |
| Xmax | 2.5 mm |
| Xvar | 4.5 mm |
| Mms | 18 g |
| Bl | 16.6 Tm |
| Le | 0.5 mH |
| EBP | 435 Hz |
| Fs | 87 Hz |
| Qes | 0.2 |
| Qts | 0.19 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 2.5 mm |
| Mms | 18 g |
| Le | 0.5 mH |
| Re | 5.6 Ω |
| Qms | 3.8 |
| Vas | 13 dm³ (0.46 ft³) |
| η0 | 4.1 % |
| Xvar | 4.5 mm |
| Bl | 16.6 Tm |
| EBP | 435 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Radial |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | Straight Pole |
| Woofer Cone Treatment | None |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | Straight Pole |
| Cone Shape | Radial |
| Spider | Single |
| Woofer Cone Treatment | None |

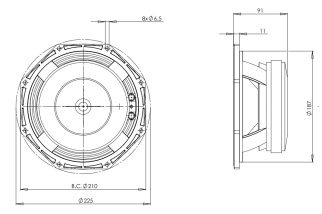

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.86 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 187 mm (7.36 in) |
| Depth | 91 mm (3.58 in) |
| Flange and Gasket Thickness | 11 mm (0.43 in) |
| Air Volume Occupied by Driver | 1.2 dm³ (0.04 ft³) |
| Net Weight | 4.25 kg (9.37 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 4.7 kg (10.36 lb) |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
