Features
☑ 500 W continuous program power capacity
☑ 51 mm (2 in) aluminium voice coil
☑ 67 - 4500 Hz response
☑ 96.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression

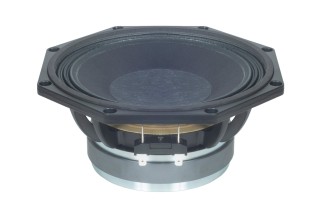

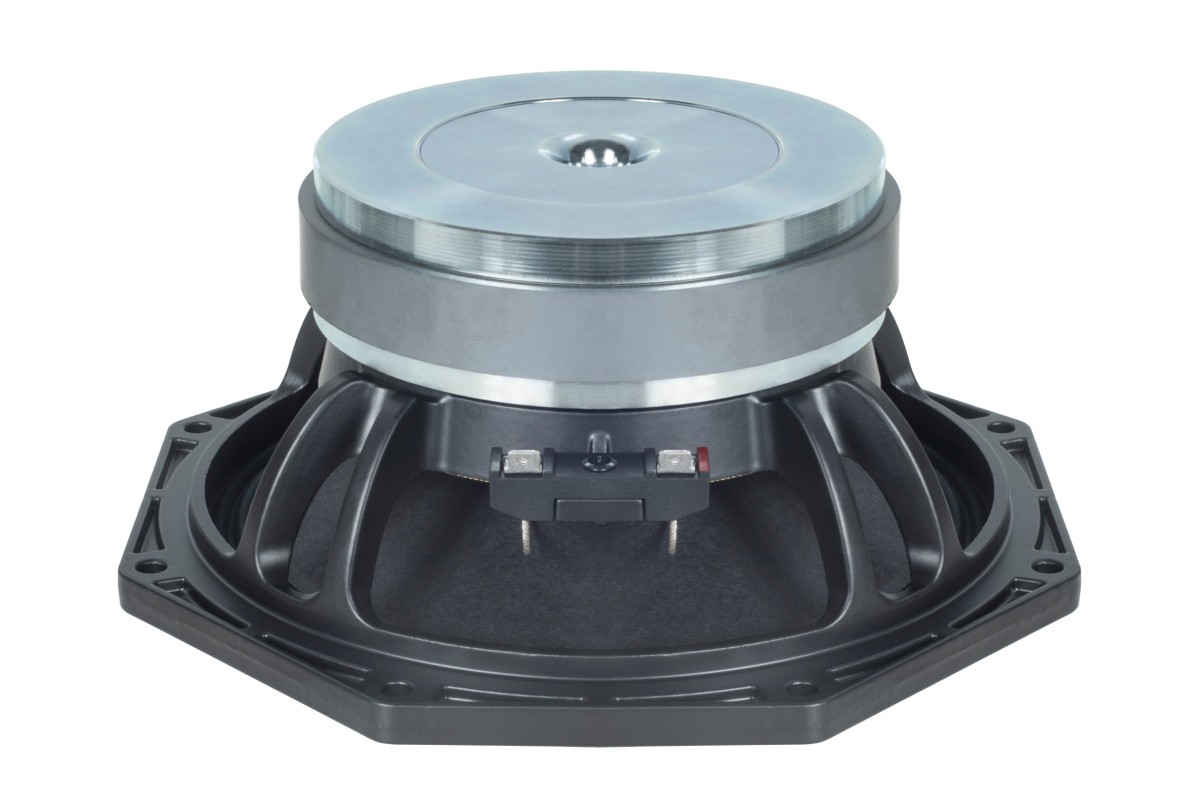

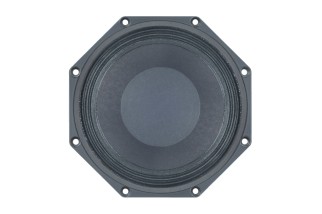

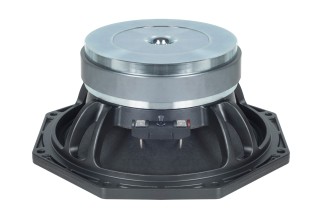

B&C 8FMB51 Midbass 8" 8/16 Ohm – Terminali Faston
120,78 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 500 W continuous program power capacity
☑ 51 mm (2 in) aluminium voice coil
☑ 67 - 4500 Hz response
☑ 96.5 dB sensitivity
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 5.5 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 96.5 dB |
| Frequency Range | 67 Hz - 4500 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Winding Material | Aluminium |
| Former Material | Glass Fibre |
| Winding Depth | 15 mm (0.59 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.19 T |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 5.5 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 67 Hz - 4500 Hz |
| Winding Material | Aluminium |
| Winding Depth | 15 mm (0.59 in) |
| Flux Density | 1.19 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 96.5 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Parameters | |
| Fs | 67 Hz |
| Re | 4.7 Ω |
| Qes | 0.31 |
| Qms | 3.07 |
| Qts | 0.28 |
| Vas | 20.7 dm³ (0.73 ft³) |
| Sd | 227 cm² (35.19 in²) |
| η0 | 1.91 % |
| Xmax | 5.5 mm |
| Xvar | 5 mm |
| Mms | 20.2 g |
| Bl | 11.3 Tm |
| Le | 0.48 mH |
| EBP | 216 Hz |
| Fs | 67 Hz |
| Qes | 0.31 |
| Qts | 0.28 |
| Sd | 227 cm² (35.19 in²) |
| Xmax | 5.5 mm |
| Mms | 20.2 g |
| Le | 0.48 mH |
| Re | 4.7 Ω |
| Qms | 3.07 |
| Vas | 20.7 dm³ (0.73 ft³) |
| η0 | 1.91 % |
| Xvar | 5 mm |
| Bl | 11.3 Tm |
| EBP | 216 Hz |
| Design | |
| Surround Shape | Triple Roll |
| Cone Shape | Curvilinear |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | Waterproof Impregnated Cone |

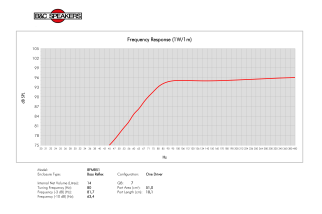

| Recommended Enclosure | 14 dm³ (0.49 ft³) |
| Recommended Tuning | 80 Hz |
| Surround Shape | Triple Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 14 dm³ (0.49 ft³) |
| Cone Shape | Curvilinear |
| Spider | Single |
| Woofer Cone Treatment | Waterproof Impregnated Cone |
| Recommended Tuning | 80 Hz |

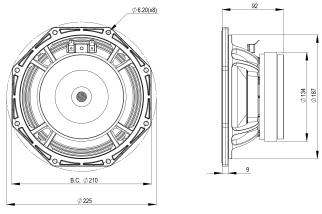

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.86 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 187 mm (7.36 in) |
| Depth | 92 mm (3.62 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Air Volume Occupied by Driver | 1.2 dm³ (0.04 ft³) |
| Net Weight | 3.4 kg (7.5 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.85 kg (8.49 lb) |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
ALT008FMB518
Scheda dati
- Pollici
- 8"
Nuovo
