Features
☑ 500 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 50 - 4000 Hz response
☑ 93 dB sensitivity
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression

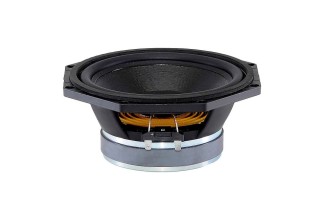

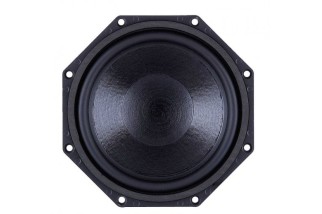

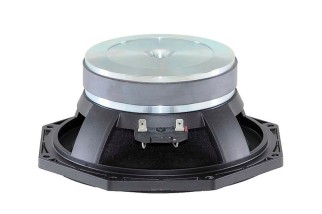

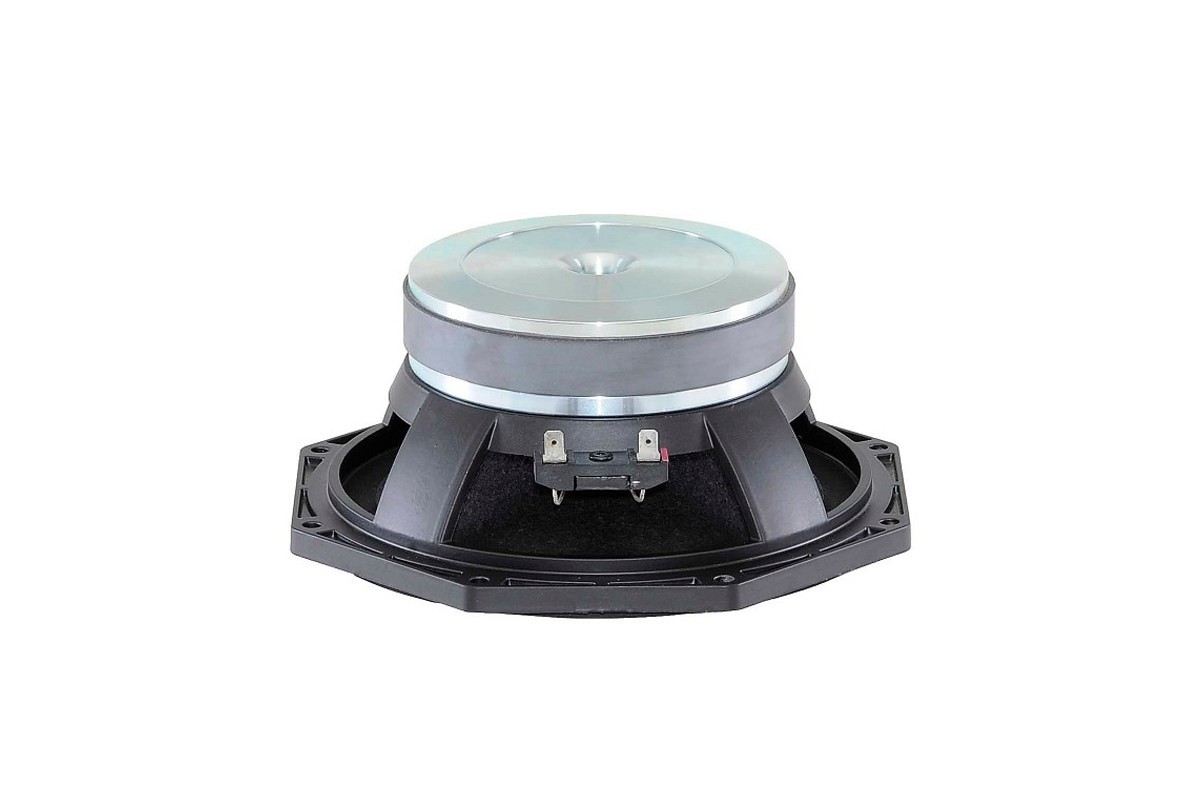

B&C 8FG51 Woofer 8" 8/16 Ohm – Terminali Faston
124,44 €
Tasse incluse
Spedizione 24/48h
Features
☑ 500 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 50 - 4000 Hz response
☑ 93 dB sensitivity
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.5 Ω |
| Nominal Power Handling | 250 W |
| Continuous Power Handling | 500 W |
| Sensitivity | 93 dB |
| Frequency Range | 50 Hz - 4000 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 17 mm (0.65 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.15 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 6.5 Ω |
| Continuous Power Handling | 500 W |
| Frequency Range | 50 Hz - 4000 Hz |
| Winding Material | Copper |
| Winding Depth | 17 mm (0.65 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 250 W |
| Sensitivity | 93 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 49 Hz |
| Re | 5.1 Ω |
| Qes | 0.34 |
| Qms | 9 |
| Qts | 0.32 |
| Vas | 20 dm³ (0.71 ft³) |
| Sd | 220 cm² (34.1 in²) |
| η0 | 0.7 % |
| Xmax | 6.5 mm |
| Xvar | 8 mm |
| Mms | 35 g |
| Bl | 12.9 Tm |
| Le | 0.5 mH |
| EBP | 144 Hz |
| Fs | 49 Hz |
| Qes | 0.34 |
| Qts | 0.32 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 6.5 mm |
| Mms | 35 g |
| Le | 0.5 mH |
| Re | 5.1 Ω |
| Qms | 9 |
| Vas | 20 dm³ (0.71 ft³) |
| η0 | 0.7 % |
| Xvar | 8 mm |
| Bl | 12.9 Tm |
| EBP | 144 Hz |
| Design | |
| Surround Shape | Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |

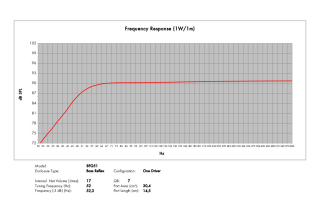

| Recommended Enclosure | 17 dm³ (0.6 ft³) |
| Recommended Tuning | 52 Hz |
| Surround Shape | Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 17 dm³ (0.6 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 52 Hz |

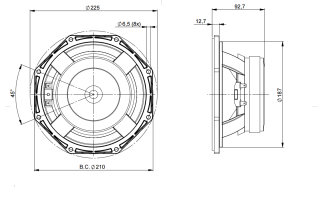

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Depth | 93 mm (3.7 in) |
| Flange and Gasket Thickness | 11 mm (0.43 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 3.4 kg (7.5 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.85 kg (8.49 lb) |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
