Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 70 - 5000 Hz response
☑ 94 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Shorting copper cap for extended HF response

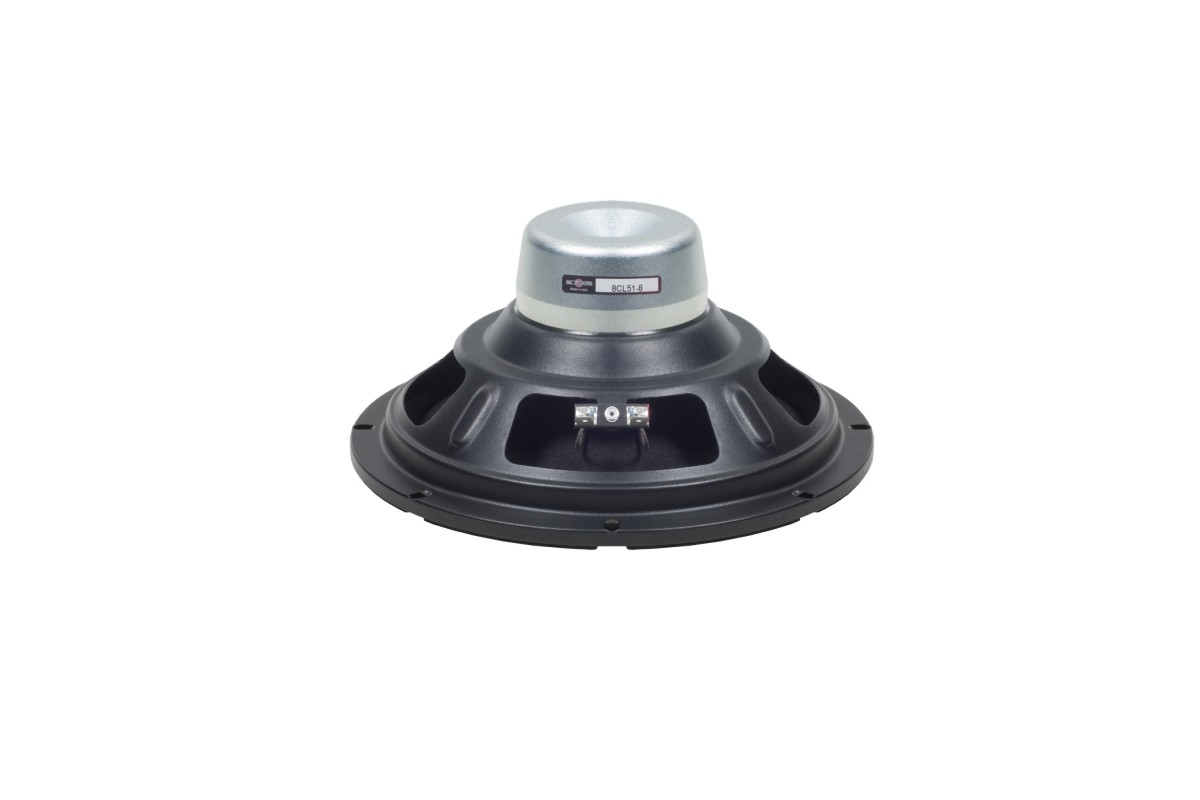

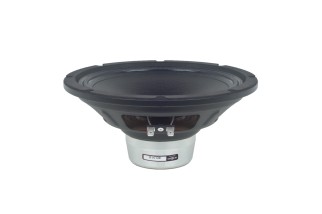

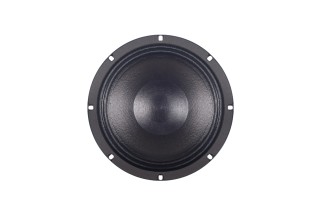

B&C 8CL51 Woofer 8" 4/8/16 Ohm – Terminali Faston
107,60 €
Tasse incluse
Spedito entro 5/7 Giorni
Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 70 - 5000 Hz response
☑ 94 dB sensitivity
☑ Neodymium magnet allows a very light yet powerful motor assembly
☑ Shorting copper cap for extended HF response
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 6.3 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 70 Hz - 5000 Hz |
| Winding Material | Copper |
| Winding Depth | 17 mm (0.67 in) |
| Flux Density | 1.15 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 94 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 69 Hz |
| Qes | 0.44 |
| Qts | 0.41 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 6.5 mm |
| Mms | 29 g |
| Le | 0.5 mH |
| Re | 5.1 Ω |
| Qms | 5.6 |
| Vas | 12.5 dm³ (0.44 ft³) |
| η0 | 0.9 % |
| Xvar | 6 mm |
| Bl | 12 Tm |
| EBP | 157 Hz |
| Design | |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | Straight Pole |
| Recommended Enclosure | 17 dm³ (0.6 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 63 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 209 mm (8.23 in) |
| Baffle Cutout Diameter | 186 mm (7.32 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Net Weight | 1.25 kg (2.76 lb) |
| Shipping Weight | 1.7 kg (3.75 lb) |
| Bolt Circle Diameter | 199 mm (7.83 in) |
| Depth | 96 mm (3.78 in) |
| Air Volume Occupied by Driver | 1.1 dm³ (0.04 ft³) |
| Shipping Units | 1 pcs |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
