Features
☑ 700 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 80 - 4000 Hz response
☑ 97 dB sensitivity
☑ Neodymium inside slug magnet assembly
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression

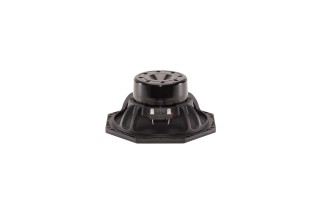

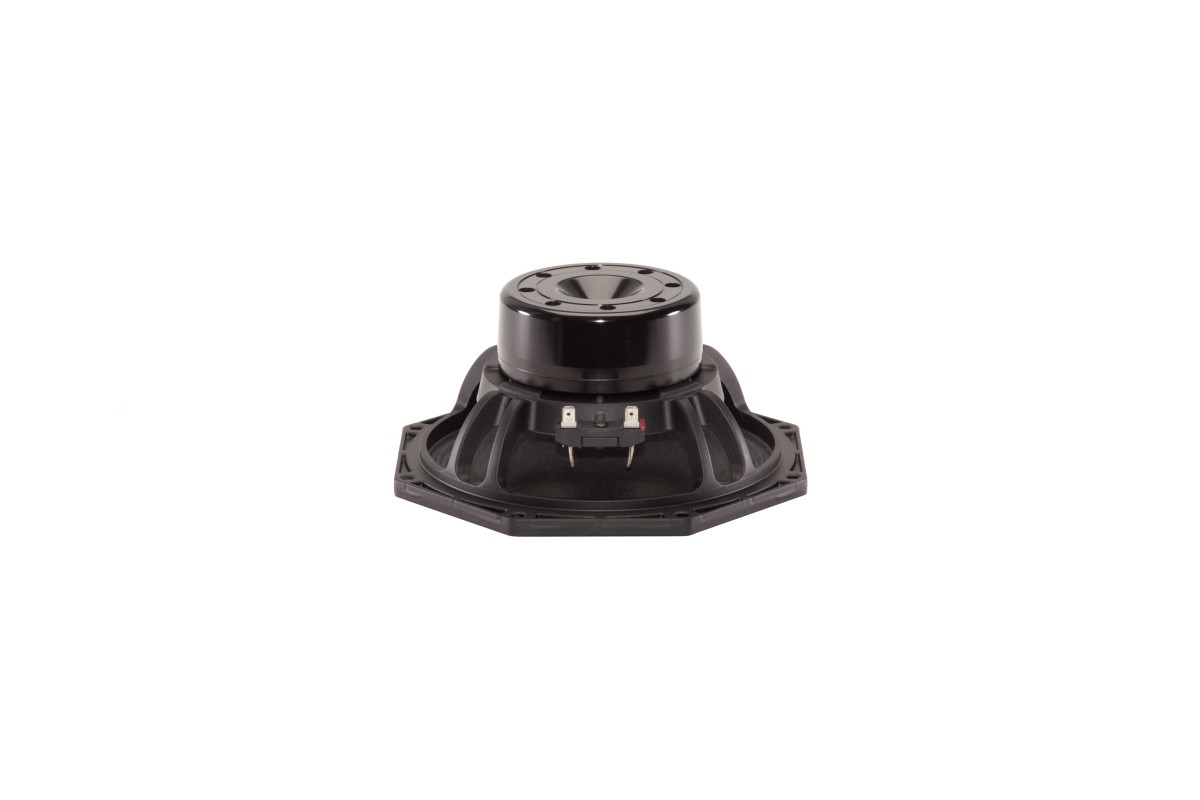

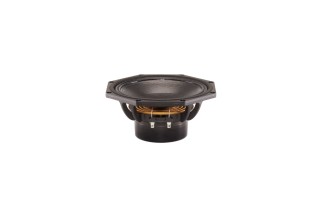

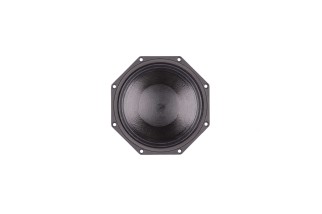

B&C 8NDL64 Woofer 8" 8/16 Ohm – Terminali Faston
157,38 €
Tasse incluse
Spedizione 24/48h
Features
☑ 700 W continuous program power capacity
☑ 64 mm (2.5 in) copper voice coil
☑ 80 - 4000 Hz response
☑ 97 dB sensitivity
☑ Neodymium inside slug magnet assembly
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.2 Ω |
| Nominal Power Handling | 350 W |
| Continuous Power Handling | 700 W |
| Sensitivity | 97 dB |
| Frequency Range | 80 Hz - 4000 Hz |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Winding Material | Copper |
| Former Material | Glass Fibre |
| Winding Depth | 14 mm (0.55 in) |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Flux Density | 1.25 T |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 7.2 Ω |
| Continuous Power Handling | 700 W |
| Frequency Range | 80 Hz - 4000 Hz |
| Winding Material | Copper |
| Winding Depth | 14 mm (0.55 in) |
| Flux Density | 1.25 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 350 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 64 mm (2.5 in) |
| Former Material | Glass Fibre |
| Magnetic Gap Depth | 8 mm (0.31 in) |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Parameters | |
| Fs | 80 Hz |
| Re | 5.4 Ω |
| Qes | 0.25 |
| Qms | 10.91 |
| Qts | 0.25 |
| Vas | 9.6 dm³ (0.34 ft³) |
| Sd | 220 cm² (34.1 in²) |
| η0 | 1.88 % |
| Xmax | 4.5 mm |
| Xvar | 5 mm |
| Mms | 28 g |
| Bl | 17.5 Tm |
| Le | 0.62 mH |
| EBP | 320 Hz |
| Fs | 80 Hz |
| Qes | 0.25 |
| Qts | 0.25 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 4.5 mm |
| Mms | 28 g |
| Le | 0.62 mH |
| Re | 5.4 Ω |
| Qms | 10.91 |
| Vas | 9.6 dm³ (0.34 ft³) |
| η0 | 1.88 % |
| Xvar | 5 mm |
| Bl | 17.5 Tm |
| EBP | 320 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Neodymium Inside Slug |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Enclosure | 10 dm³ (0.35 ft³) |
| Recommended Tuning | 85 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Neodymium Inside Slug |
| Pole Design | T-Pole |
| Recommended Enclosure | 10 dm³ (0.35 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | WP Waterproof Front Side |
| Recommended Tuning | 85 Hz |
| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Depth | 95 mm (3.74 in) |
| Flange and Gasket Thickness | 10 mm (0.39 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 2.6 kg (5.73 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 3.05 kg (6.72 lb) |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
