Caratteristiche
☑ 4-inch, fiberglass inside/outside copper voice coil
☑ 1600W continuous program power handling
☑ 97 dB Sensitivity
☑ 30 Hz – 1.5 kHz Frequency range
☑ Aluminum demodulation ring
☑ Forced air ventilation and 14mm top plate for minimum power compression
☑ Dual spider design with silicon based dampening control
☑ Triple-roll surround and corrugated straight cone geometry
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range. The L15P400 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.

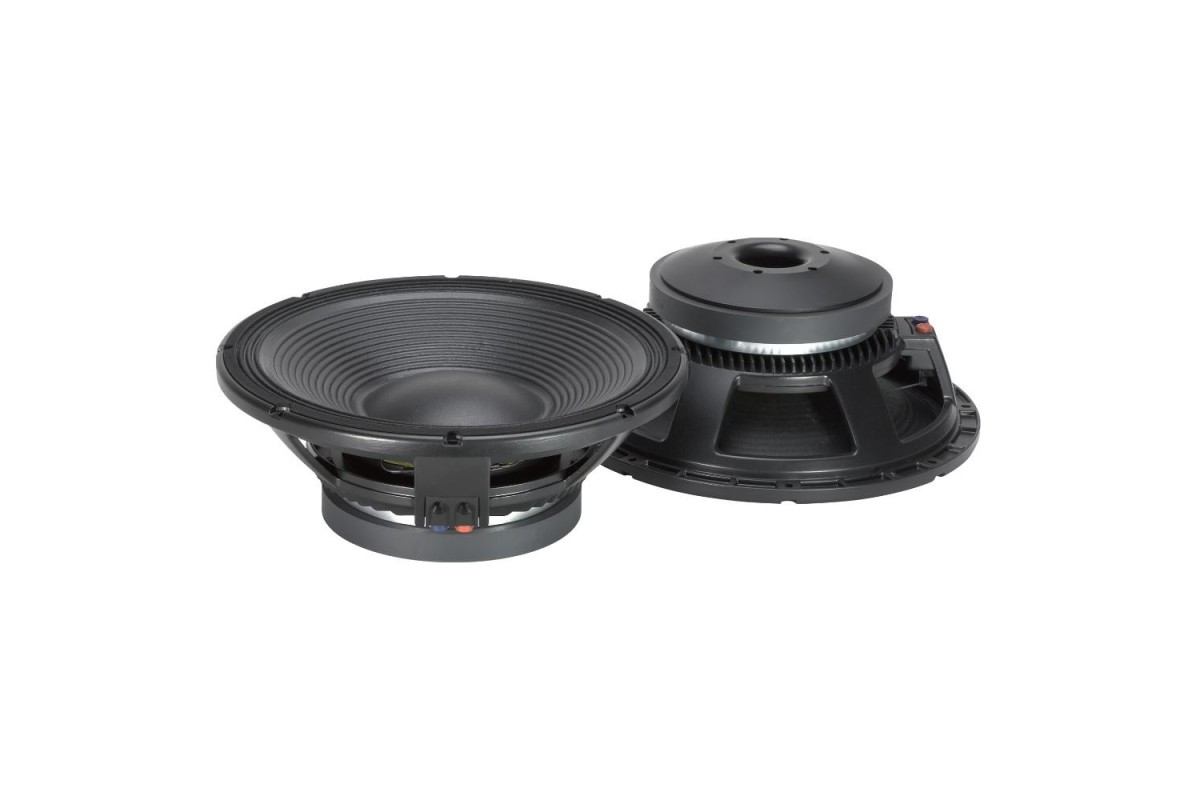

RCF L15P400
285,18 €
Tasse incluse
Spedito entro 5/7 Giorni
Caratteristiche
☑ 4-inch, fiberglass inside/outside copper voice coil
☑ 1600W continuous program power handling
☑ 97 dB Sensitivity
☑ 30 Hz – 1.5 kHz Frequency range
☑ Aluminum demodulation ring
☑ Forced air ventilation and 14mm top plate for minimum power compression
☑ Dual spider design with silicon based dampening control
☑ Triple-roll surround and corrugated straight cone geometry
Incredibly linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 15-inch transducer within its application range. The L15P400 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The T-pole also features RCF Precision's spaced gap demodulation technology, progressively braking the voice coil, providing a much smoother transition for the moving mass as it reaches its maximum excursion limits. Forced air venting system.
close
| Specifiche generali | |
|---|---|
| Diametro Nominale | 15 inch / 381 mm |
| Impedenza nominale (ohm) | 8 ohm |
| Potenza musicale (watt) | 1600 W |
| Potenza | 800 W |
| Sensibilità (dB) | 97.0 dB |
| Gamma di frequenza | 30 - 1500 Hz |
| Diametro effettivo del pistone | 340 mm / 13.39 inch |
| Escursione max prima della rottura | 50 mm / 1.97 inch |
| Impedenza Minima (ohm) | 6.3 ohm |
| Diametro Bobina | 4.0 inch / 102 mm |
| Materiale di avvolgimento della bobina | Copper |
| Lunghezza della bobina | 23 mm / 0.91 inch |
| Numero di strati | 2 |
| Strati bobina (tipologia) | inside/outside |
| Spessore piastra superiore | 14 mm / 0.55 inch |
| Design del cono | Straight |
| Materiale del surround | Polycotton |
| Design del surround | Triple roll |
| Magnete | Ceramic |
| Aerazione Dual-Force | Yes |
| Spider | 3 |
| Parametri di Thiele & Small | |
| Frequenza di Risonanza (Fs) (Hz) | 36 Hz |
| Resistenza (Re) (ohm) | 4.80 ohm |
| Fattore di merito meccanico (Qms) | 7.50 Qms |
| Fattore di merito elettrico (Qes) | 0.27 Qes |
| Fattore di qualità totale (Qts) | 0.25 Qts |
| Fattore Bl (Bl) (T x m) | 24.80 T x m |
| Massa mobile effettiva (Mms) g | 150.0 g |
| Volume equivalente alla cedevolezza (Vas) (litri) | 160.0 liters |
| Area del pistone effettiva (Sd) (m2) | 0.090 m2 |
| Massima escursione lineare (Xmax) (mm) | 8 mm |
| Induttanza della bobina @ 1 kHz (Le1k) (mH) | 1.20 mH |
| Efficienza Half-Space (Eff) (%) | 2.60% |
| Informazioni di montaggio | |
| Diametro complessivo | 393 mm / 15.47 inches |
| Diametro esterno vite | 371-376 mm / 14.61-14.8 inch |
| Diametro foro vite | 7 mm / 0.28 inch |
| Foro montaggio anteriore al pannello | 352 mm / 13.86 inch |
| Alloggiamento posteriore | 360 mm / 14.17 inch |
| Volume occupato dal driver | 4.3 liters / 0.17 ft3 |
| Conformità agli standard | |
| Standard di sicurezza | CE compliant |
| Dimensioni / Peso | |
| Altezza | 159 mm / 6.26 inches |
| Diametro | 393 mm / 15.47 inches |
| Peso | 13.5 kg / 29.76 lbs |
| Informazioni di spedizione | |
| Altezza imballaggio | 195 mm / 7.68 inches |
| Larghezza imballaggio | 420 mm / 16.54 inches |
| Profondità imballaggio | 425 mm / 16.73 inches |
| Peso imballaggio | 15.5 kg / 34.17 lbs |
