Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 70 - 5000 Hz response
☑ 97 dB sensitivity
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression

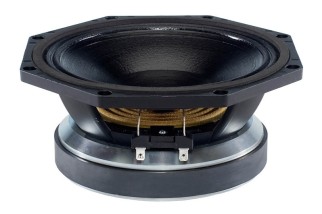

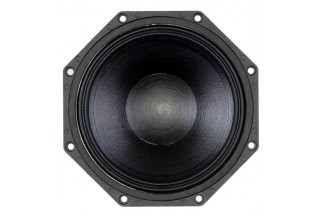

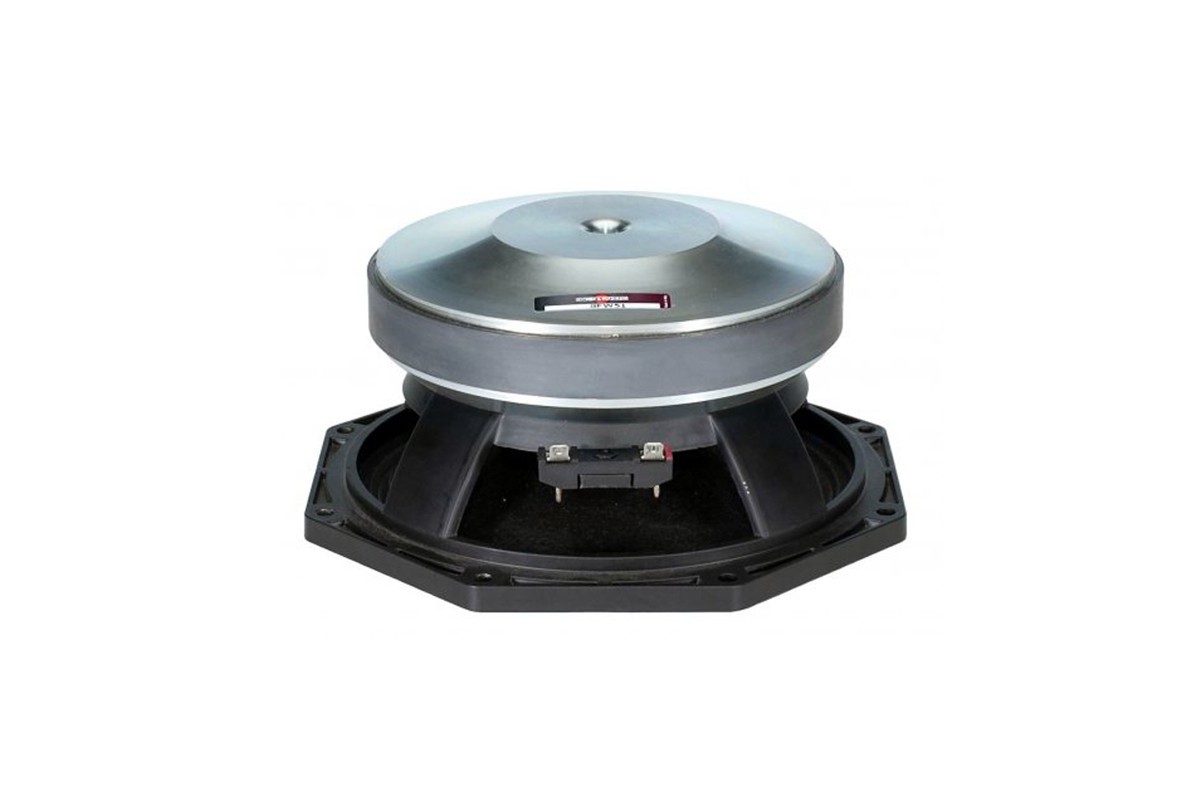

B7C 8FW51 Woofer 8" 8/16 Ohm – Terminali Faston
147,13 €
Tasse incluse
Spedizione 24/48h
Features
☑ 400 W continuous program power capacity
☑ 51 mm (2 in) copper voice coil
☑ 70 - 5000 Hz response
☑ 97 dB sensitivity
☑ Shorting copper cap for extended HF response
☑ Ventilated voice coil gap for reduced power compression
close
| Specifications | |
|---|---|
| Nominal Diameter | 200 mm (8 in) |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.4 Ω |
| Nominal Power Handling | 200 W |
| Continuous Power Handling | 400 W |
| Sensitivity | 97 dB |

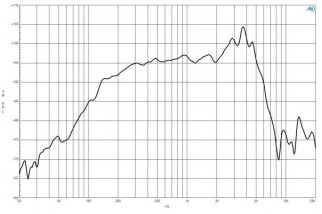

| Frequency Range | 70 Hz - 5000 Hz |
| Voice Coil Diameter | 51 mm (2 in) |
| Winding Material | Copper |
| Former Material | Kapton |
| Winding Depth | 17 mm (0.65 in) |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Flux Density | 1.35 T |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Nominal Diameter | 200 mm (8 in) |
| Minimum Impedance | 7.4 Ω |
| Continuous Power Handling | 400 W |
| Frequency Range | 70 Hz - 5000 Hz |
| Winding Material | Copper |
| Winding Depth | 17 mm (0.65 in) |
| Flux Density | 1.35 T |
| Nominal Impedance | 8 Ω |
| Nominal Power Handling | 200 W |
| Sensitivity | 97 dB |
| Voice Coil Diameter | 51 mm (2 in) |
| Former Material | Kapton |
| Magnetic Gap Depth | 10 mm (0.4 in) |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Parameters | |
| Fs | 74 Hz |
| Re | 5.2 Ω |
| Qes | 0.21 |
| Qms | 9.3 |
| Qts | 0.21 |
| Vas | 12 dm³ (0.42 ft³) |
| Sd | 220 cm² (34.1 in²) |
| η0 | 2.1 % |
| Xmax | 6 mm |
| Xvar | 5 mm |
| Mms | 27 g |
| Bl | 17.7 Tm |
| Le | 0.56 mH |
| EBP | 352 Hz |
| Fs | 74 Hz |
| Qes | 0.21 |
| Qts | 0.21 |
| Sd | 220 cm² (34.1 in²) |
| Xmax | 6 mm |
| Mms | 27 g |
| Le | 0.56 mH |
| Re | 5.2 Ω |
| Qms | 9.3 |
| Vas | 12 dm³ (0.42 ft³) |
| η0 | 2.1 % |
| Xvar | 5 mm |
| Bl | 17.7 Tm |
| EBP | 352 Hz |
| Design | |
| Surround Shape | Double Roll |
| Cone Shape | Exponential |
| Magnet Material | Ferrite |
| Spider | Single |
| Pole Design | T-Pole |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Enclosure | 12 dm³ (0.42 ft³) |
| Recommended Tuning | 74 Hz |
| Surround Shape | Double Roll |
| Magnet Material | Ferrite |
| Pole Design | T-Pole |
| Recommended Enclosure | 12 dm³ (0.42 ft³) |
| Cone Shape | Exponential |
| Spider | Single |
| Woofer Cone Treatment | TWP Waterproof Both Sides |
| Recommended Tuning | 74 Hz |

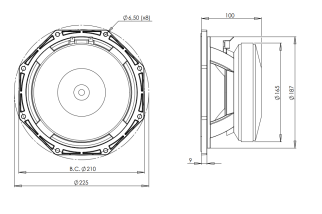

| Mounting and Shipping Info | |
| Overall Diameter | 225 mm (8.8 in) |
| Bolt Circle Diameter | 210 mm (8.3 in) |
| Baffle Cutout Diameter | 187 mm (7.4 in) |
| Depth | 100 mm (3.94 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Air Volume Occupied by Driver | 1.5 dm³ (0.05 ft³) |
| Net Weight | 5.6 kg (12.35 lb) |
| Shipping Units | 1 pcs |
| Shipping Weight | 6.05 kg (13.34 lb) |
| Shipping Box | 255x255x150 mm (10.04x10.04x5.91 in) |
